大模型应用开发2-SpringAI实战

简介: 本文介绍了SpringAI框架如何整合大语言模型,并详细讲解了应用开发的关键技术。主要内容包括: 核心功能 支持OpenAI、Ollama等主流平台 封装对话模型、向量计算等功能 提供同步/异步调用方式 关键技术实现 会话记忆管理(内存/Redis) 工具调用(Function Calling) 知识增强(RAG)架构 多模态交互(文本/图像) 典型应用场景 文献阅读助手实现 智能客服系统 文档知识库问答 开发实践 配置向量数据库 处理PDF文档 实现工具调用 兼容阿里云平台 该框架显著简化了大模型应用开发

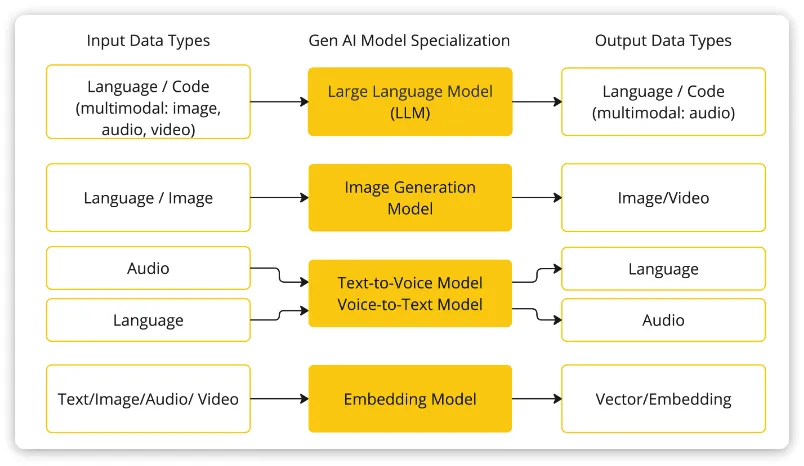

 SpringAI整合了大多数大模型,而且对于大模型开发的三种技术架构都有比较好的封装和支持,开发起来非常方便。不同的模型能够接收的输入类型、输出类型不一定相同。SpringAI根据模型的输入和输出类型不同对模型进行了分类:

image.gif 编辑大模型应用开发大多数情况下使用的都是基于对话模型(Chat Model),也就是输出结果为自然语言或代码的模型。SpringAI支持的大模型中最完整的就是OpenAI和Ollama平台的大模型。

1.SpringAI入门实例

1.1 工程创建

创建SpringBoot项目并引入SpringAI基础依赖:

SpringAI完全适配了SpringBoot的自动装配功能,而且给不同的大模型提供了不同的starter,比如:

模型/平台

starter

Anthropic


<dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-anthropic-spring-boot-starter</artifactId>
</dependency>

Azure OpenAI


<dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-azure-openai-spring-boot-starter</artifactId>
</dependency>

DeepSeek


<dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-openai-spring-boot-starter</artifactId>
</dependency>

Hugging Face


<dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-huggingface-spring-boot-starter</artifactId>
</dependency>

Ollama


<dependency>
<groupId>org.springframework.ai</groupId>
<artifactId>spring-ai-ollama-spring-boot-starter</artifactId> </dependency>

OpenAI


<dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-openai-spring-boot-starter</artifactId>
</dependency>

我们可以根据自己选择的平台来选择引入不同的依赖。这里我们先以Ollama为例。

首先,在项目pom.xml中添加spring-ai的版本信息:

<spring-ai.version>1.0.0-M6</spring-ai.version>


然后,添加spring-ai的依赖管理项:

<dependencyManagement>
 <dependencies>
  <dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-bom</artifactId>
    <version>${spring-ai.version}</version>
    <type>pom</type>
    <scope>import</scope>
  </dependency>
 </dependencies>
</dependencyManagement>


最后,引入spring-ai-ollama的依赖:

<dependency>
    <groupId>org.springframework.ai</groupId>
     <artifactId>spring-ai-ollama-spring-boot-starter</artifactId>
</dependency>


为了方便后续开发,我们再手动引入一个Lombok依赖:

<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <version>1.18.22</version>
</dependency>


注意: 千万不要用start.spring.io提供的lombok,有bug!!

1.2 配置模型信息

在application.yml中配置模型参数

spring:
  application:
    name: ai-demo
  ai:
    ollama:
      base-url: http://localhost:11434 # ollama服务地址, 这就是默认值
      chat:
        model: deepseek-r1:7b # 模型名称
        options:
          temperature: 0.8 # 模型温度,影响模型生成结果的随机性,越小越稳定


1.3 封装ChatClient

import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.client.advisor.SimpleLoggerAdvisor;
import org.springframework.ai.ollama.OllamaChatModel;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class CommonConfiguration {
    // 注意参数中的model就是使用的模型,这里用了Ollama,也可以选择OpenAIChatModel
    @Bean
    public ChatClient chatClient(OllamaChatModel model) {
        return ChatClient.builder(model) // 创建ChatClient工厂
                .build(); // 构建ChatClient实例
    }
}


  • ChatClient.builder:会得到一个ChatClient.Builder工厂对象,利用它可以自由选择模型、添加各种自定义配置
  • OllamaChatModel:如果你引入了ollama的starter,这里就可以自动注入OllamaChatModel对象。同理,OpenAI也是一样的用法。
  • Spring 会默认将方法名作为 Bean 的名称,默认生成名称为chatClient的Bean

1.4 同步调用

import lombok.RequiredArgsConstructor;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
@RequiredArgsConstructor
@RestController
@RequestMapping("/ai")
public class ChatController {
    private final ChatClient chatClient;
    // 请求方式和路径不要改动,将来要与前端联调
    @RequestMapping("/chat")
    public String chat(@RequestParam(defaultValue = "讲个笑话") String prompt) {
        return chatClient
                .prompt(prompt) // 传入user提示词
                .call() // 同步请求,会等待AI全部输出完才返回结果
                .content(); //返回响应内容
    }
}


注意,基于call()方法的调用属于同步调用,需要所有响应结果全部返回后才能返回给前端。

1.5 流式调用

同步调用需要等待很长时间页面才能看到结果,用户体验不好。为了解决这个问题,我们可以改进调用方式为流式调用。在SpringAI中使用了WebFlux技术实现流式调用。

// 注意看返回值,是Flux<String>,也就是流式结果,另外需要设定响应类型和编码,不然前端会乱码
@RequestMapping(value = "/chat", produces = "text/html;charset=UTF-8")
public Flux<String> chat(@RequestParam(defaultValue = "讲个笑话") String prompt) {
    return chatClient
            .prompt(prompt)
            .stream() // 流式调用
            .content();
}


1.6 设置System

可以发现,当我们询问AI你是谁的时候,它回答自己是DeepSeek-R1,这是大模型底层的设定。如果我们希望AI按照新的设定工作,就需要给它设置System背景信息。

在SpringAI中,设置System信息非常方便,不需要在每次发送时封装到Message,而是创建ChatClient时指定即可。

我们修改配置类中的代码,给ChatClient设定默认的System信息:

@Bean
public ChatClient chatClient(OllamaChatModel model) {
    return ChatClient.builder(model) // 创建ChatClient工厂实例
            .defaultSystem("您是一个经验丰富的软件开发工程师,请以友好、乐于助人和愉快的方式解答学生的各种问题。")
            .defaultAdvisors(new SimpleLoggerAdvisor())
            .build(); // 构建ChatClient实例
}


1.7 日志功能

默认情况下,应用于AI的交互时不记录日志的,我们无法得知SpringAI组织的提示词到底长什么样,有没有问题。这样不方便我们调试。

1.7.1 Advisor

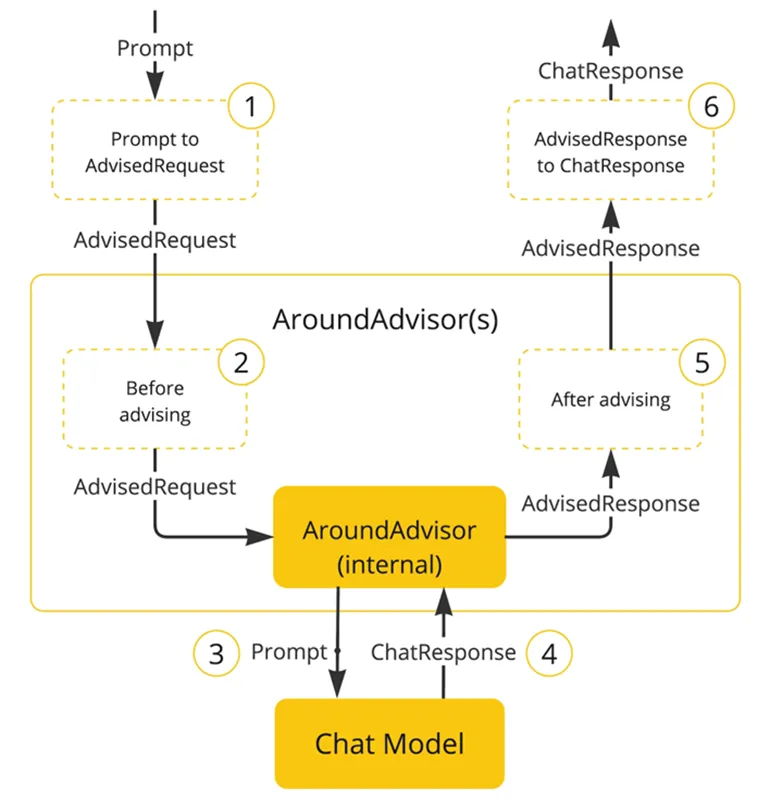

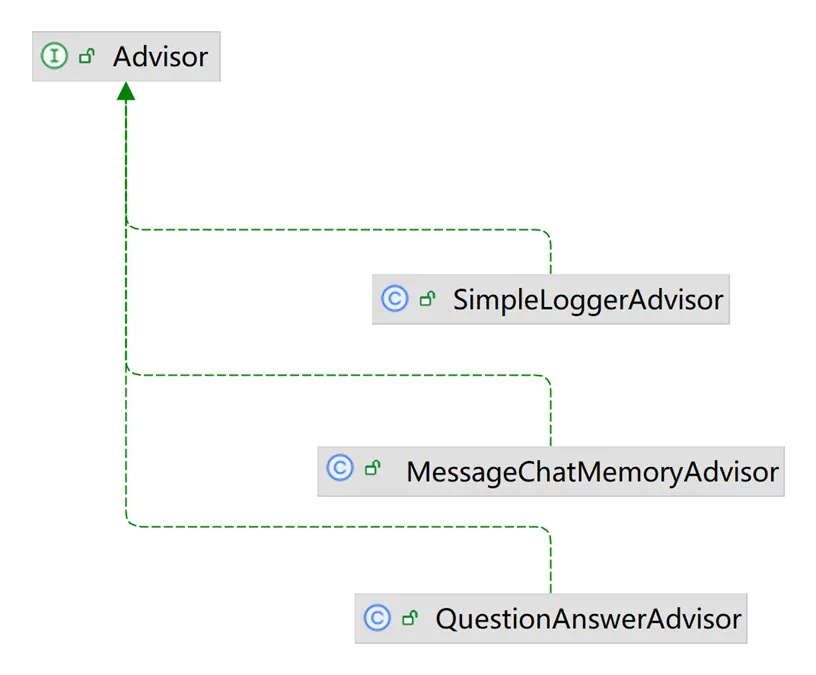

SpringAI基于AOP机制实现与大模型对话过程的增强、拦截、修改等功能。所有的增强通知都需要实现Advisor接口。

image.gif 编辑

Spring提供了一些Advisor的默认实现,来实现一些基本的增强功能:

image.gif 编辑

  • SimpleLoggerAdvisor:日志记录的Advisor
  • MessageChatMemoryAdvisor:会话记忆的Advisor
  • QuestionAnswerAdvisor:实现RAG的Advisor

1.7.2 添加日志Advisor

首先,我们需要修改配置文件,给ChatClient添加日志Advisor:

@Bean
public ChatClient chatClient(OllamaChatModel model) {
    return ChatClient.builder(model) // 创建ChatClient工厂实例
    .defaultSystem("你是一个热心、可爱的智能助手,你的名字叫小团团,请以小团团的身份和语气回答问题。")
            .defaultAdvisors(new SimpleLoggerAdvisor()) // 添加默认的Advisor,记录日志
            .build(); // 构建ChatClient实例
}


1.7.2 修改日志级别

接下来,我们在application.yml中添加日志配置,更新日志级别:

logging:
  level:
    org.springframework.ai: debug # AI对话的日志级别
    com.lgh.ai: debug # 本项目的日志级别


1.8 会话记忆

SpringAI自带了会话记忆功能,可以帮我们把历史会话保存下来,下一次请求AI时会自动拼接。

1.8.1 ChatMemory

话记忆功能同样是基于AOP实现,Spring提供了一个MessageChatMemoryAdvisor的通知,我们可以像之前添加日志通知一样添加到ChatClient即可。不过,要注意的是,MessageChatMemoryAdvisor需要指定一个ChatMemory实例,也就是会话历史保存的方式。

ChatMemory接口声明如下(此接口SpringAI自带):

public interface ChatMemory {
    // TODO: consider a non-blocking interface for streaming usages
    default void add(String conversationId, Message message) {
       this.add(conversationId, List.of(message));
    }
    // 添加会话信息到指定conversationId的会话历史中
    void add(String conversationId, List<Message> messages);
    // 根据conversationId查询历史会话
    List<Message> get(String conversationId, int lastN);
    // 清除指定conversationId的会话历史
    void clear(String conversationId);
}


所有的会话记忆都是与conversationId有关联的,也就是会话Id,将来不同会话id的记忆自然是分开管理的。

目前,在SpringAI中有两个ChatMemory的实现:

  • InMemoryChatMemory:会话历史保存在内存中
  • CassandraChatMemory:会话保存在Cassandra数据库中(需要引入额外依赖,并且绑定了向量数据库,不够灵活)

基于内存的ChatMemory(SpringAI自带):

public class InMemoryChatMemory implements ChatMemory {
    Map<String, List<Message>> conversationHistory = new ConcurrentHashMap();
    public InMemoryChatMemory() {
    }
    public void add(String conversationId, List<Message> messages) {
        this.conversationHistory.putIfAbsent(conversationId, new ArrayList());
        ((List)this.conversationHistory.get(conversationId)).addAll(messages);
    }
    public List<Message> get(String conversationId, int lastN) {
        List<Message> all = (List)this.conversationHistory.get(conversationId);
        return all != null ? all.stream().skip((long)Math.max(0, all.size() - lastN)).toList() : List.of();
    }
    public void clear(String conversationId) {
        this.conversationHistory.remove(conversationId);
    }
}


基于Redis的ChatMemory实现:

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.lgh.web.manager.springai.model.Msg;
import lombok.RequiredArgsConstructor;
import org.springframework.ai.chat.memory.ChatMemory;
import org.springframework.ai.chat.messages.Message;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.stereotype.Component;
import java.util.List;
 /**
 * Redis ChatMemory实现类
 * @Author GuihaoLv
 */
@RequiredArgsConstructor
@Component
public class RedisChatMemory implements ChatMemory {
    private final StringRedisTemplate redisTemplate;
    private final ObjectMapper objectMapper;
    private final static String PREFIX = "chat:";
    @Override
    public void add(String conversationId, List<Message> messages) {
        if (messages == null || messages.isEmpty()) {
            return;
        }
        List<String> list = messages.stream().map(Msg::new).map(msg -> {
            try {
                return objectMapper.writeValueAsString(msg);
            } catch (JsonProcessingException e) {
                throw new RuntimeException(e);
            }
        }).toList();
        redisTemplate.opsForList().leftPushAll(PREFIX + conversationId, list);
    }
    @Override
    public List<Message> get(String conversationId, int lastN) {
        List<String> list = redisTemplate.opsForList().range(PREFIX +
                conversationId, 0, lastN);
        if (list == null || list.isEmpty()) {
            return List.of();
        }
        return list.stream().map(s -> {
            try {
                return objectMapper.readValue(s, Msg.class);
            } catch (JsonProcessingException e) {
                throw new RuntimeException(e);
            }
        }).map(Msg::toMessage).toList();
    }
    @Override
    public void clear(String conversationId) {
        redisTemplate.delete(PREFIX + conversationId);
    }
}


Msg消息类封装:

/**
 * 消息类
 * @Author GuihaoLv
 */
@NoArgsConstructor
@AllArgsConstructor
@Data
public class Msg {
    MessageType messageType; // 消息类型(枚举)
    String text;   // 消息文本内容
    Map<String, Object> metadata; // 消息元数据(附加信息)
    List<AssistantMessage.ToolCall> toolCalls;// 工具调用列表(仅助手消息可能有)
    public Msg(Message message) {
        this.messageType = message.getMessageType();
        this.text = message.getText();
        this.metadata = message.getMetadata();
        // 仅当原始消息是助手消息时,才复制toolCalls
        if(message instanceof AssistantMessage am) {
            this.toolCalls = am.getToolCalls();
        }
    }
    public Message toMessage() {
        return switch (messageType) {
            case SYSTEM -> new SystemMessage(text);
            case USER -> new UserMessage(text, List.of(), metadata);
            case ASSISTANT -> new AssistantMessage(text, metadata, toolCalls, List.of());
            default -> throw new IllegalArgumentException("Unsupported message type: " + messageType);
        };
    }
}


1.8.2 添加会话记忆Advisor

注册ChatMemory

@Bean
public ChatMemory chatMemory() {
    return new InMemoryChatMemory();
}


@Autowired
    private StringRedisTemplate stringRedisTemplate;
    @Bean
    public ObjectMapper objectMapper() {
        ObjectMapper objectMapper = new ObjectMapper();
        objectMapper.configure(com.fasterxml.jackson.databind.DeserializationFeature.FAIL_ON_UNKNOWN_PROPERTIES, false);
        // 添加Java 8日期时间模块支持
        objectMapper.registerModule(new JavaTimeModule());
        return objectMapper;
    }
    @Bean
    public ChatMemory chatMemory() {
       return new RedisChatMemory(stringRedisTemplate, objectMapper());
    }


添加MessageChatMemoryAdvisorChatClient

@Bean
public ChatClient chatClient(OllamaChatModel model, ChatMemory chatMemory) {
    return ChatClient.builder(model) // 创建ChatClient工厂实例
            .defaultSystem("你的名字叫小黑。请以友好、乐于助人和愉快的方式解答学生的各种问题。")
            .defaultAdvisors(new SimpleLoggerAdvisor()) // 添加默认的Advisor,记录日志
            .defaultAdvisors(new MessageChatMemoryAdvisor(chatMemory))
            .build(); // 构建ChatClient实例
}


现在聊天会话已经有记忆功能了。

1.9 会话历史

会话历史与会话记忆是两个不同的事情:

会话记忆:是指让大模型记住每一轮对话的内容,不至于前一句刚问完,下一句就忘了。

会话历史:是指要记录总共有多少不同的对话

在ChatMemory中,会记录一个会话中的所有消息,记录方式是以conversationId为key,以List<Message>为value,根据这些历史消息,大模型就能继续回答问题,这就是所谓的会话记忆。

而会话历史,就是每一个会话的conversationId,将来根据conversationId再去查询List<Message>

1.9.1 会话记忆管理

由于会话记忆是以conversationId来管理的,也就是会话id(以后简称为chatId)。将来要查询会话历史,其实就是查询历史中有哪些chatId。因此,为了实现查询会话历史记录,我们必须记录所有的chatId,我们需要定义一个管理会话历史的标准接口。

/**
 * 会话记录操作相关接口
 * @Author GuihaoLv
 */
public interface ChatHistoryRepository {
    /**
     * 保存会话记录
     * @param type 业务类型,如:chat、service、pdf
     * @param chatId 会话ID
     */
    void save(String type, String chatId);
    /**
     * 获取会话ID列表
     * @param type 业务类型,如:chat、service、pdf
     * @return 会话ID列表
     */
    List<String> getChatIds(String type);
}


基于内存的会话历史管理:

/**
 * 基于内存实现的会话管理
 * @Author GuihaoLv
 */
@Slf4j
//@Component
@RequiredArgsConstructor
public class InMemoryChatHistoryRepository implements ChatHistoryRepository {
    private Map<String, List<String>> chatHistory;
    private final ObjectMapper objectMapper;
    private final ChatMemory chatMemory;
    @Override
    public void save(String type, String chatId) {
        /*if (!chatHistory.containsKey(type)) {
            chatHistory.put(type, new ArrayList<>());
        }
        List<String> chatIds = chatHistory.get(type);*/
        List<String> chatIds = chatHistory.computeIfAbsent(type, k -> new ArrayList<>());
        if (chatIds.contains(chatId)) {
            return;
        }
        chatIds.add(chatId);
    }
    @Override
    public List<String> getChatIds(String type) {
        /*List<String> chatIds = chatHistory.get(type);
        return chatIds == null ? List.of() : chatIds;*/
        return chatHistory.getOrDefault(type, List.of());
    }
    @PostConstruct
    private void init() {
        // 1.初始化会话历史记录
        this.chatHistory = new HashMap<>();
        // 2.读取本地会话历史和会话记忆
        FileSystemResource historyResource = new FileSystemResource("chat-history.json");
        FileSystemResource memoryResource = new FileSystemResource("chat-memory.json");
        if (!historyResource.exists()) {
            return;
        }
        try {
            // 会话历史
            Map<String, List<String>> chatIds = this.objectMapper.readValue(historyResource.getInputStream(), new TypeReference<>() {
            });
            if (chatIds != null) {
                this.chatHistory = chatIds;
            }
            // 会话记忆
            Map<String, List<Msg>> memory = this.objectMapper.readValue(memoryResource.getInputStream(), new TypeReference<>() {
            });
            if (memory != null) {
                memory.forEach(this::convertMsgToMessage);
            }
        } catch (IOException ex) {
            throw new RuntimeException(ex);
        }
    }
    private void convertMsgToMessage(String chatId, List<Msg> messages) {
        this.chatMemory.add(chatId, messages.stream().map(Msg::toMessage).toList());
    }
    @PreDestroy
    private void persistent() {
        String history = toJsonString(this.chatHistory);
        String memory = getMemoryJsonString();
        FileSystemResource historyResource = new FileSystemResource("chat-history.json");
        FileSystemResource memoryResource = new FileSystemResource("chat-memory.json");
        try (
                PrintWriter historyWriter = new PrintWriter(historyResource.getOutputStream(), true, StandardCharsets.UTF_8);
                PrintWriter memoryWriter = new PrintWriter(memoryResource.getOutputStream(), true, StandardCharsets.UTF_8)
        ) {
            historyWriter.write(history);
            memoryWriter.write(memory);
        } catch (IOException ex) {
            log.error("IOException occurred while saving vector store file.", ex);
            throw new RuntimeException(ex);
        } catch (SecurityException ex) {
            log.error("SecurityException occurred while saving vector store file.", ex);
            throw new RuntimeException(ex);
        } catch (NullPointerException ex) {
            log.error("NullPointerException occurred while saving vector store file.", ex);
            throw new RuntimeException(ex);
        }
    }
    private String getMemoryJsonString() {
        Class<InMemoryChatMemory> clazz = InMemoryChatMemory.class;
        try {
            Field field = clazz.getDeclaredField("conversationHistory");
            field.setAccessible(true);
            Map<String, List<Message>> memory = (Map<String, List<Message>>) field.get(chatMemory);
            Map<String, List<Msg>> memoryToSave = new HashMap<>();
            memory.forEach((chatId, messages) -> memoryToSave.put(chatId, messages.stream().map(Msg::new).toList()));
            return toJsonString(memoryToSave);
        } catch (NoSuchFieldException | IllegalAccessException e) {
            throw new RuntimeException(e);
        }
    }
    private String toJsonString(Object object) {
        ObjectWriter objectWriter = this.objectMapper.writerWithDefaultPrettyPrinter();
        try {
            return objectWriter.writeValueAsString(object);
        } catch (JsonProcessingException e) {
            throw new RuntimeException("Error serializing documentMap to JSON.", e);
        }
    }
}


基于Redis实现会话历史管理:

/**
 * Redis ChatHistory 实现类
 * @Author GuihaoLv
 */
@RequiredArgsConstructor
@Component
public class RedisChatHistory implements ChatHistoryRepository{
    private final StringRedisTemplate redisTemplate;
    private final static String CHAT_HISTORY_KEY_PREFIX = "chat:history:";
    @Override
    public void save(String type, String chatId) {
        redisTemplate.opsForSet().add(CHAT_HISTORY_KEY_PREFIX + type, chatId);
    }
    @Override
    public List<String> getChatIds(String type) {
        Set<String> chatIds =
                redisTemplate.opsForSet().members(CHAT_HISTORY_KEY_PREFIX + type);
        if(chatIds == null || chatIds.isEmpty()) {
            return Collections.emptyList();
        }
        return chatIds.stream().sorted(String::compareTo).toList();
    }
}


1.9.2 保存会话id

接下来,修改ChatController中的chat方法,做到3点:

  • 添加一个请求参数:chatId,每次前端请求AI时都需要传递chatId
  • 每次处理请求时,将chatId存储到ChatRepository
  • 每次发请求到AI大模型时,都传递自定义的chatId
@CrossOrigin("*")
@RequiredArgsConstructor
@RestController
@RequestMapping("/ai")
public class ChatController {
    private final ChatClient chatClient;
    private final ChatMemory chatMemory;
    private final ChatHistoryRepository chatHistoryRepository;
    @RequestMapping(value = "/chat", produces = "text/html;charset=UTF-8")
    public Flux<String> chat(@RequestParam(defaultValue = "讲个笑话") String prompt, String chatId) {

        chatHistoryRepository.addChatId(chatId);
        return chatClient
                .prompt(prompt)
                .advisors(a -> a.param(CHAT_MEMORY_CONVERSATION_ID_KEY, chatId))
                .stream()
                .content();
    }
}


这里传递chatId给Advisor的方式是通过AdvisorContext,也就是以key-value形式存入上下文:

chatClient.advisors(a -> a.param(CHAT_MEMORY_CONVERSATION_ID_KEY, chatId))


其中的CHAT_MEMORY_CONVERSATION_ID_KEY是AbstractChatMemoryAdvisor中定义的常量key,将来MessageChatMemoryAdvisor执行的过程中就可以拿到这个chatId了

1.9.3 查询会话历史

我们定义一个新的Controller,专门实现会话历史的查询。包含两个接口:

  • 根据业务类型查询会话历史列表(我们将来有3个不同业务,需要分别记录历史。大家的业务可能是按userId记录,根据UserId查询)
  • 根据chatId查询指定会话的历史消息

其中,查询会话历史消息,也就是Message集合。但是由于Message并不符合页面的需要,我们需要自己定义一个VO.

/**
 * 消息查询结果类
 * @Author GuihaoLv
 */
@NoArgsConstructor
@Data
public class MessageVO {
    private String role;
    private String content;
    public MessageVO(Message message) {
        switch (message.getMessageType()) {
            case USER:
                role = "user";
                break;
            case ASSISTANT:
                role = "assistant";
                break;
            default:
                role = "";
                break;
        }
        this.content = message.getText();
    }
}


/**
 * AI会话历史记录
 * @author GuihaoLv
 */
@RestController
@RequestMapping("/web/aiHistory")
@Tag(name = "AI会话历史记录")
@Slf4j
public class ChatHistoryController {
    @Autowired
    private RedisChatHistory chatHistoryRepository;
    @Autowired
    private RedisChatMemory chatMemory;
    /**
     * 获取会话ID列表
     * @param type
     * @return
     * */
    @GetMapping("/{type}")
    @Operation(summary = "获取会话ID列表")
    public List<String> getChatIds(@PathVariable("type") String type) {
        return chatHistoryRepository.getChatIds(type);
    }
    /**
     * 获取会话记录
     * @param type
     * @param chatId
     * @return
     */
    @GetMapping("/{type}/{chatId}")
    @Operation(summary = "获取会话记录")
    public List<MessageVO> getChatHistory(@PathVariable("type") String type, @PathVariable("chatId") String chatId) {
        List<Message> messages = chatMemory.get(chatId, Integer.MAX_VALUE);
        if(messages == null) {
            return List.of();
        }
        return messages.stream().map(MessageVO::new).toList();
    }
}

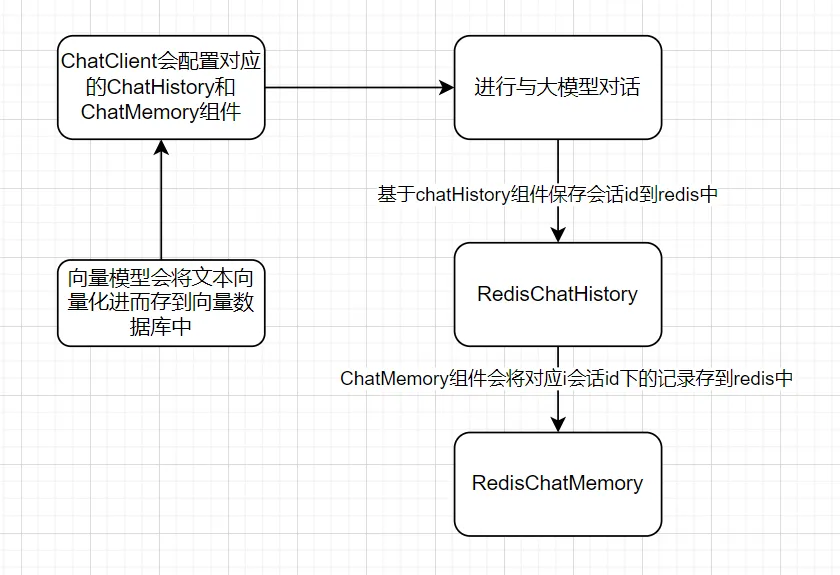

会话记忆整体逻辑设计:

image.gif 编辑

2 FunctionCalling

2.1 FunctionCalling介绍

AI擅长的是非结构化数据的分析,如果需求中包含严格的逻辑校验或需要读写数据库等业务逻辑,我们可以赋予大模型执行业务规则的逻辑。我们可以把数据库操作等业务逻辑都定义成Function,或者也可以叫Tool,也就是工具。然后,我们可以在提示词中,告诉大模型,什么情况下需要调用什么工具,将来用户在与大模型交互的时候,大模型就可以在适当的时候调用工具了。

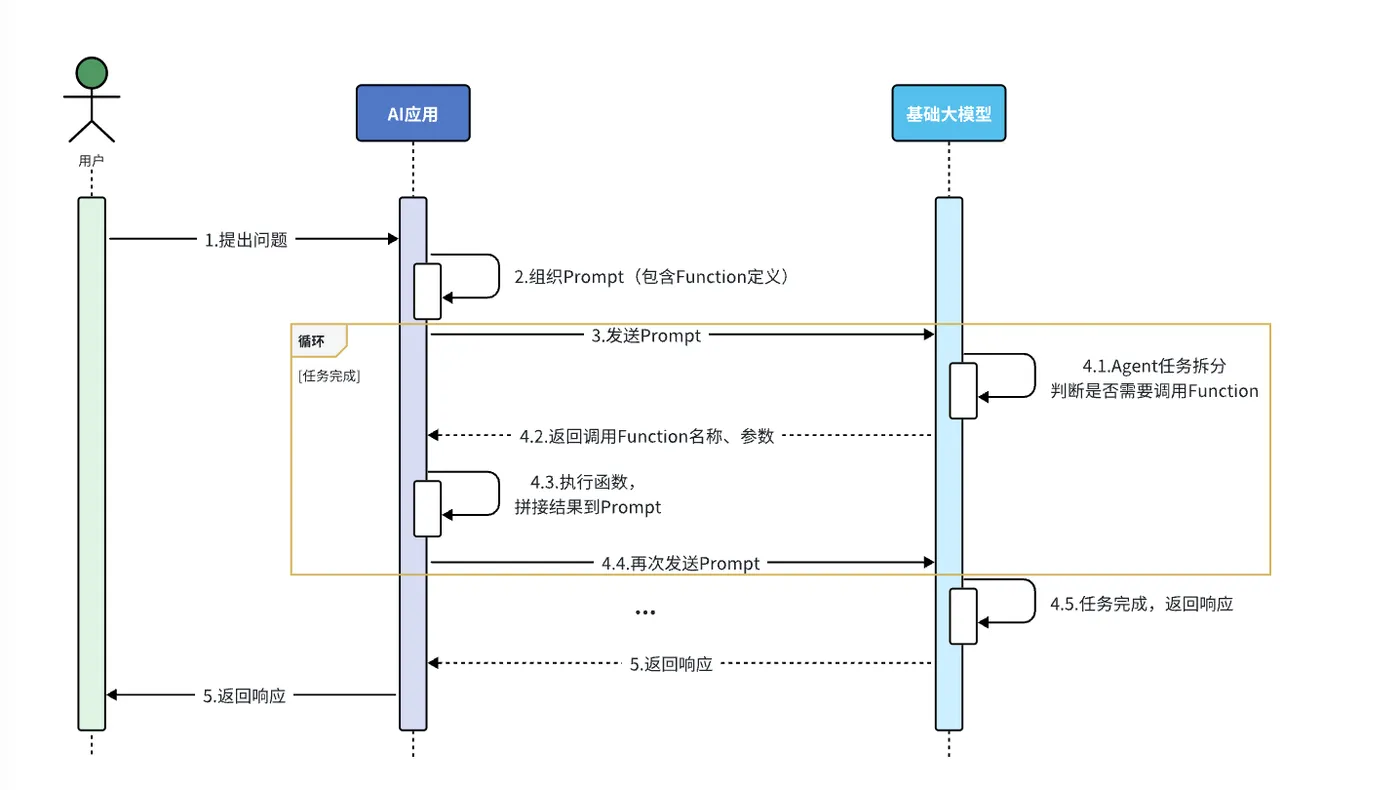

image.gif 编辑

流程解读:

  1. 提前把这些操作定义为Function(SpringAI中叫Tool),
  2. 然后将Function的名称、作用、需要的参数等信息都封装为Prompt提示词与用户的提问一起发送给大模型
  3. 大模型在与用户交互的过程中,根据用户交流的内容判断是否需要调用Function
  4. 如果需要则返回Function名称、参数等信息
  5. Java解析结果,判断要执行哪个函数,代码执行Function,把结果再次封装到Prompt中发送给AI
  6. AI继续与用户交互,直到完成任务

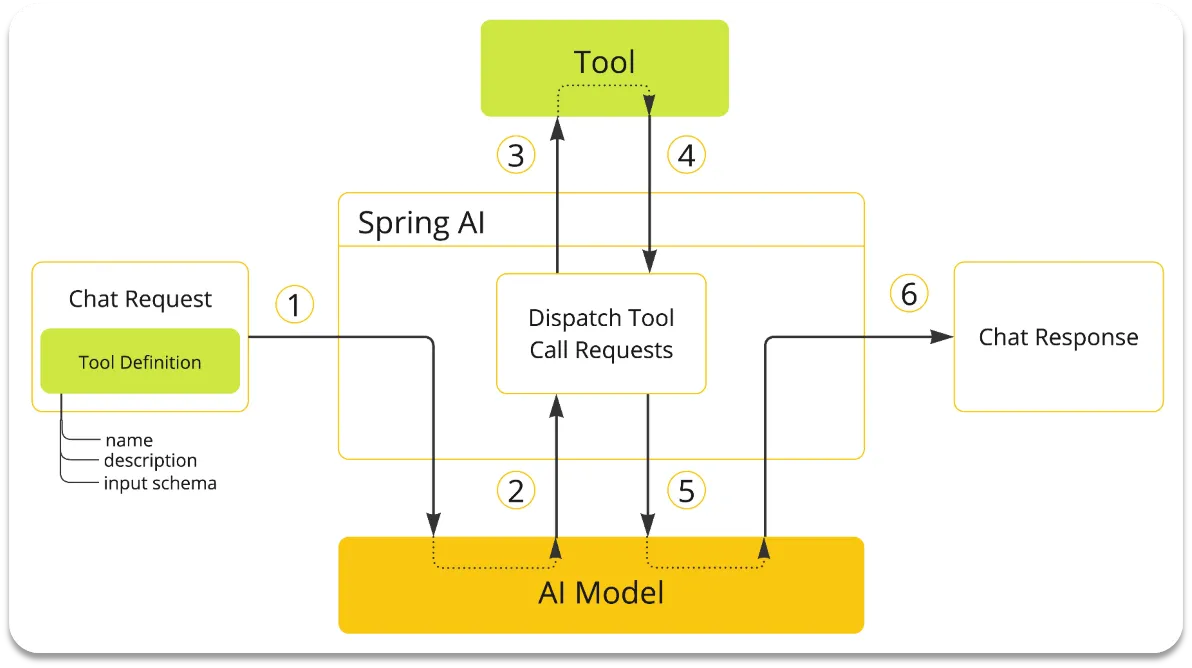

SpringAI提供了FunctionCalling的功能,由于解析大模型响应,找到函数名称、参数,调用函数等这些动作都是固定的,所以SpringAI再次利用AOP的能力,帮我们把中间调用函数的部分自动完成了。

image.gif 编辑

我们要做的事情就简化了:

  • 编写基础提示词(不包括Tool的定义)
  • 编写Tool(Function)
  • 配置Advisor(SpringAI利用AOP帮我们拼接Tool定义到提示词,完成Tool调用动作)

2.2 FunctionCalling实战

实现一个大模型自动总结并保存当前会话知识点

2.2.1 业务封装

@Mapper
public interface AINoteMapper {
     /**
     * 插入一条记录
     * @param aINote
     * @return
     */
    @Insert("insert into tb_ai_note (user_id, chat_id, title, content) values (#{userId}, #{chatId}, #{title}, #{content})")
    Boolean insert(AINote aINote);
    /**
     * 删除一条记录
     * @param aiNoteId
     * @return
     */
    @Delete("delete from tb_ai_note where id = #{aiNoteId}")
    Boolean deleteById(Long aiNoteId);
    /**
     * 查询所有记录
     * @return
     */
    @Select("SELECT * FROM tb_ai_note")
    List<AINote> selectList();
    /**
     * 根据ID查询记录
     * @param aiNoteId
     * @return
     */
    @Select("SELECT * FROM tb_ai_note where id = #{aiNoteId}")
    AINote selectById(Long aiNoteId);

     /**
     * 添加AI词生文记录
     * @param generateText
     * @return
     */
    @Insert("insert into tb_generate_text (user_id, prompt_words, generated_text,translated_text) values (#{userId}, #{promptWords}, #{generatedText},#{translatedText})")
    Boolean addGT(GenerateText generateText);
    /**
     * 获取AI词生文记录
     * @param userId
     * @return
     */
    @Select("SELECT * FROM tb_generate_text where user_id = #{userId} order by create_time desc")
    List<GenerateText> getGTList(Long userId);
    /**
     * 删除AI词生文记录
     * @param generateTextId
     * @return
     */
    @Delete("delete from tb_generate_text where id = #{generateTextId}")
    Boolean deleteGT(Long generateTextId);
}


/**
* AI笔记表
* @Author GuihaoLv
*/
@Data
@AllArgsConstructor
@NoArgsConstructor
@Builder
public class AINote extends BaseEntity implements Serializable {
   private Long userId;//用户ID
   private String chatId;//会话ID
   private String title;//标题
   private String content;//内容
}


2.2.2 Function定义

/**
 * AI笔记工具类
 * @Author GuihaoLv
 */
@Component
public class AINoteTools {
    @Autowired
    private AINoteMapper aiNoteMapper;
    /**
     * 将会话中的知识点保存为AI笔记
     * @param chatId 会话ID(关联笔记所属会话)
     * @param title 笔记标题(总结知识点核心)
     * @param content 笔记内容(详细知识点)
     * @return 保存结果(true成功/false失败)
     */
    @Tool(description = "将会话中的知识点创建为AI笔记,需传入会话ID、标题和内容,自动关联当前用户")
    public Boolean createAINote(
            @ToolParam(required = false, description = "会话唯一标识,用于关联笔记和对应会话") String chatId,
            @ToolParam(required = true, description = "笔记标题,简洁概括知识点内容(不超过20字)") String title,
            @ToolParam(required = true, description = "笔记详细内容,记录会话中的知识点详情") String content) {
        // 构建笔记对象(自动填充当前用户ID)
        AINote aiNote = new AINote();
        aiNote.setUserId(UserUtil.getUserId());
        aiNote.setChatId(chatId);
        aiNote.setTitle(title);
        aiNote.setContent(content);
        // 保存到数据库
        return aiNoteMapper.insert(aiNote);
    }
}


这里的@ToolParam注解是SpringAI提供的用来解释Function参数的注解。其中的信息都会通过提示词的方式发送给AI模型。

2.2.3 System提示词

public static final String CHAT_ROLE ="""
        你是一个可以帮助用户记录会话笔记的助手。
        当用户发出以下指令时,必须调用createAINote工具:
        - "把刚才的内容记成笔记"
        - "记录这段知识点"
        - "保存当前对话内容"
        - 其他类似要求保存会话内容的表述

        调用工具时必须包含3个参数:
        1. chatId:当前会话的ID(从会话上下文获取)
        2. title:从会话内容中提炼的标题(不超过20字)
        3. content:需要记录的会话知识点详情(完整提取相关内容)

        调用成功后,回复用户"已为你保存笔记:[标题]";调用失败则提示"笔记保存失败,请重试"。
        """;


2.2.4 在ChatClient中配置tool

@Bean
    public ChatClient chatCommonClient(OpenAiChatModel model, ChatMemory chatMemory,VectorStore vectorStore,  AINoteTools aiNoteTools) {
        return ChatClient
                .builder(model)
                .defaultOptions(ChatOptions.builder()
                        .model("qwen-omni-turbo")
                        .build())
                .defaultSystem(AIChatConstant.CHAT_ROLE)
                .defaultAdvisors(
                        new SimpleLoggerAdvisor(),
                        new MessageChatMemoryAdvisor(chatMemory),
                        new QuestionAnswerAdvisor(
                                vectorStore,
                                SearchRequest.builder()
                                        .similarityThreshold(0.6)
                                        .topK(2)
                                        .build()
                        )
                )
                .defaultTools(List.of(aiNoteTools))
                .build();
    }


目前SpringAI的OpenAI客户端与阿里云百炼存在兼容性问题,所以FunctionCalling功能无法使用stream模式,为了兼容百炼云平台,我们需做调整

3 兼容百炼云平台

截止SpringAI的1.0.0-M6版本为止,SpringAI的OpenAiModel和阿里云百炼的部分接口存在兼容性问题,包括但不限于以下两个问题:

  • FunctionCalling的stream模式,阿里云百炼返回的tool-arguments是不完整的,需要拼接,而OpenAI则是完整的,无需拼接。
  • 音频识别中的数据格式,阿里云百炼的qwen-omni模型要求的参数格式为data:;base64,${media-data},而OpenAI是直接{media-data}

由于SpringAI的OpenAI模块是遵循OpenAI规范的,所以即便版本升级也不会去兼容阿里云,除非SpringAI单独为阿里云开发starter,所以目前解决方案有两个:

  • 等待阿里云官方推出的spring-alibaba-ai升级到最新版本
  • 自己重写OpenAiModel的实现逻辑。

接下来,我们就用重写OpenAiModel的方式,来解决上述两个问题。

首先,我们自己写一个遵循阿里巴巴百炼平台接口规范的ChatModel,其中大部分代码来自SpringAI的OpenAiChatModel,只需要重写接口协议不匹配的地方即可,重写部分会以黄色高亮显示。

新建一个AlibabaOpenAiChatModel类:

package com.itheima.ai.model;
import io.micrometer.observation.Observation;
import io.micrometer.observation.ObservationRegistry;
import io.micrometer.observation.contextpropagation.ObservationThreadLocalAccessor;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.chat.messages.AssistantMessage;
import org.springframework.ai.chat.messages.MessageType;
import org.springframework.ai.chat.messages.ToolResponseMessage;
import org.springframework.ai.chat.messages.UserMessage;
import org.springframework.ai.chat.metadata.*;
import org.springframework.ai.chat.model.*;
import org.springframework.ai.chat.observation.ChatModelObservationContext;
import org.springframework.ai.chat.observation.ChatModelObservationConvention;
import org.springframework.ai.chat.observation.ChatModelObservationDocumentation;
import org.springframework.ai.chat.observation.DefaultChatModelObservationConvention;
import org.springframework.ai.chat.prompt.ChatOptions;
import org.springframework.ai.chat.prompt.Prompt;
import org.springframework.ai.model.Media;
import org.springframework.ai.model.ModelOptionsUtils;
import org.springframework.ai.model.function.FunctionCallback;
import org.springframework.ai.model.function.FunctionCallbackResolver;
import org.springframework.ai.model.function.FunctionCallingOptions;
import org.springframework.ai.model.tool.LegacyToolCallingManager;
import org.springframework.ai.model.tool.ToolCallingChatOptions;
import org.springframework.ai.model.tool.ToolCallingManager;
import org.springframework.ai.model.tool.ToolExecutionResult;
import org.springframework.ai.openai.OpenAiChatOptions;
import org.springframework.ai.openai.api.OpenAiApi;
import org.springframework.ai.openai.api.common.OpenAiApiConstants;
import org.springframework.ai.openai.metadata.support.OpenAiResponseHeaderExtractor;
import org.springframework.ai.retry.RetryUtils;
import org.springframework.ai.tool.definition.ToolDefinition;
import org.springframework.core.io.ByteArrayResource;
import org.springframework.core.io.Resource;
import org.springframework.http.ResponseEntity;
import org.springframework.lang.Nullable;
import org.springframework.retry.support.RetryTemplate;
import org.springframework.util.*;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;
import java.util.*;
import java.util.concurrent.ConcurrentHashMap;
import java.util.stream.Collectors;
public class AlibabaOpenAiChatModel extends AbstractToolCallSupport implements ChatModel {
    private static final Logger logger = LoggerFactory.getLogger(AlibabaOpenAiChatModel.class);
    private static final ChatModelObservationConvention DEFAULT_OBSERVATION_CONVENTION = new DefaultChatModelObservationConvention();
    private static final ToolCallingManager DEFAULT_TOOL_CALLING_MANAGER = ToolCallingManager.builder().build();
    /**
     * The default options used for the chat completion requests.
     */
    private final OpenAiChatOptions defaultOptions;
    /**
     * The retry template used to retry the OpenAI API calls.
     */
    private final RetryTemplate retryTemplate;
    /**
     * Low-level access to the OpenAI API.
     */
    private final OpenAiApi openAiApi;
    /**
     * Observation registry used for instrumentation.
     */
    private final ObservationRegistry observationRegistry;
    private final ToolCallingManager toolCallingManager;
    /**
     * Conventions to use for generating observations.
     */
    private ChatModelObservationConvention observationConvention = DEFAULT_OBSERVATION_CONVENTION;
    /**
     * Creates an instance of the AlibabaOpenAiChatModel.
     * @param openAiApi The OpenAiApi instance to be used for interacting with the OpenAI
     * Chat API.
     * @throws IllegalArgumentException if openAiApi is null
     * @deprecated Use AlibabaOpenAiChatModel.Builder.
     */
    @Deprecated
    public AlibabaOpenAiChatModel(OpenAiApi openAiApi) {
        this(openAiApi, OpenAiChatOptions.builder().model(OpenAiApi.DEFAULT_CHAT_MODEL).temperature(0.7).build());
    }
    /**
     * Initializes an instance of the AlibabaOpenAiChatModel.
     * @param openAiApi The OpenAiApi instance to be used for interacting with the OpenAI
     * Chat API.
     * @param options The OpenAiChatOptions to configure the chat model.
     * @deprecated Use AlibabaOpenAiChatModel.Builder.
     */
    @Deprecated
    public AlibabaOpenAiChatModel(OpenAiApi openAiApi, OpenAiChatOptions options) {
        this(openAiApi, options, null, RetryUtils.DEFAULT_RETRY_TEMPLATE);
    }
    /**
     * Initializes a new instance of the AlibabaOpenAiChatModel.
     * @param openAiApi The OpenAiApi instance to be used for interacting with the OpenAI
     * Chat API.
     * @param options The OpenAiChatOptions to configure the chat model.
     * @param functionCallbackResolver The function callback resolver.
     * @param retryTemplate The retry template.
     * @deprecated Use AlibabaOpenAiChatModel.Builder.
     */
    @Deprecated
    public AlibabaOpenAiChatModel(OpenAiApi openAiApi, OpenAiChatOptions options,
                           @Nullable FunctionCallbackResolver functionCallbackResolver, RetryTemplate retryTemplate) {
        this(openAiApi, options, functionCallbackResolver, List.of(), retryTemplate);
    }
    /**
     * Initializes a new instance of the AlibabaOpenAiChatModel.
     * @param openAiApi The OpenAiApi instance to be used for interacting with the OpenAI
     * Chat API.
     * @param options The OpenAiChatOptions to configure the chat model.
     * @param functionCallbackResolver The function callback resolver.
     * @param toolFunctionCallbacks The tool function callbacks.
     * @param retryTemplate The retry template.
     * @deprecated Use AlibabaOpenAiChatModel.Builder.
     */
    @Deprecated
    public AlibabaOpenAiChatModel(OpenAiApi openAiApi, OpenAiChatOptions options,
                           @Nullable FunctionCallbackResolver functionCallbackResolver,
                           @Nullable List<FunctionCallback> toolFunctionCallbacks, RetryTemplate retryTemplate) {
        this(openAiApi, options, functionCallbackResolver, toolFunctionCallbacks, retryTemplate,
                ObservationRegistry.NOOP);
    }
    /**
     * Initializes a new instance of the AlibabaOpenAiChatModel.
     * @param openAiApi The OpenAiApi instance to be used for interacting with the OpenAI
     * Chat API.
     * @param options The OpenAiChatOptions to configure the chat model.
     * @param functionCallbackResolver The function callback resolver.
     * @param toolFunctionCallbacks The tool function callbacks.
     * @param retryTemplate The retry template.
     * @param observationRegistry The ObservationRegistry used for instrumentation.
     * @deprecated Use AlibabaOpenAiChatModel.Builder or AlibabaOpenAiChatModel(OpenAiApi,
     * OpenAiChatOptions, ToolCallingManager, RetryTemplate, ObservationRegistry).
     */
    @Deprecated
    public AlibabaOpenAiChatModel(OpenAiApi openAiApi, OpenAiChatOptions options,
                           @Nullable FunctionCallbackResolver functionCallbackResolver,
                           @Nullable List<FunctionCallback> toolFunctionCallbacks, RetryTemplate retryTemplate,
                           ObservationRegistry observationRegistry) {
        this(openAiApi, options,
                LegacyToolCallingManager.builder()
                        .functionCallbackResolver(functionCallbackResolver)
                        .functionCallbacks(toolFunctionCallbacks)
                        .build(),
                retryTemplate, observationRegistry);
        logger.warn("This constructor is deprecated and will be removed in the next milestone. "
                + "Please use the AlibabaOpenAiChatModel.Builder or the new constructor accepting ToolCallingManager instead.");
    }
    public AlibabaOpenAiChatModel(OpenAiApi openAiApi, OpenAiChatOptions defaultOptions, ToolCallingManager toolCallingManager,
                           RetryTemplate retryTemplate, ObservationRegistry observationRegistry) {
        // We do not pass the 'defaultOptions' to the AbstractToolSupport,
        // because it modifies them. We are using ToolCallingManager instead,
        // so we just pass empty options here.
        super(null, OpenAiChatOptions.builder().build(), List.of());
        Assert.notNull(openAiApi, "openAiApi cannot be null");
        Assert.notNull(defaultOptions, "defaultOptions cannot be null");
        Assert.notNull(toolCallingManager, "toolCallingManager cannot be null");
        Assert.notNull(retryTemplate, "retryTemplate cannot be null");
        Assert.notNull(observationRegistry, "observationRegistry cannot be null");
        this.openAiApi = openAiApi;
        this.defaultOptions = defaultOptions;
        this.toolCallingManager = toolCallingManager;
        this.retryTemplate = retryTemplate;
        this.observationRegistry = observationRegistry;
    }
    @Override
    public ChatResponse call(Prompt prompt) {
        // Before moving any further, build the final request Prompt,
        // merging runtime and default options.
        Prompt requestPrompt = buildRequestPrompt(prompt);
        return this.internalCall(requestPrompt, null);
    }
    public ChatResponse internalCall(Prompt prompt, ChatResponse previousChatResponse) {
        OpenAiApi.ChatCompletionRequest request = createRequest(prompt, false);
        ChatModelObservationContext observationContext = ChatModelObservationContext.builder()
                .prompt(prompt)
                .provider(OpenAiApiConstants.PROVIDER_NAME)
                .requestOptions(prompt.getOptions())
                .build();
        ChatResponse response = ChatModelObservationDocumentation.CHAT_MODEL_OPERATION
                .observation(this.observationConvention, DEFAULT_OBSERVATION_CONVENTION, () -> observationContext,
                        this.observationRegistry)
                .observe(() -> {
                    ResponseEntity<OpenAiApi.ChatCompletion> completionEntity = this.retryTemplate
                            .execute(ctx -> this.openAiApi.chatCompletionEntity(request, getAdditionalHttpHeaders(prompt)));
                    var chatCompletion = completionEntity.getBody();
                    if (chatCompletion == null) {
                        logger.warn("No chat completion returned for prompt: {}", prompt);
                        return new ChatResponse(List.of());
                    }
                    List<OpenAiApi.ChatCompletion.Choice> choices = chatCompletion.choices();
                    if (choices == null) {
                        logger.warn("No choices returned for prompt: {}", prompt);
                        return new ChatResponse(List.of());
                    }
                    List<Generation> generations = choices.stream().map(choice -> {
                        // @formatter:off
                        Map<String, Object> metadata = Map.of(
                                "id", chatCompletion.id() != null ? chatCompletion.id() : "",
                                "role", choice.message().role() != null ? choice.message().role().name() : "",
                                "index", choice.index(),
                                "finishReason", choice.finishReason() != null ? choice.finishReason().name() : "",
                                "refusal", StringUtils.hasText(choice.message().refusal()) ? choice.message().refusal() : "");
                        // @formatter:on
                        return buildGeneration(choice, metadata, request);
                    }).toList();
                    RateLimit rateLimit = OpenAiResponseHeaderExtractor.extractAiResponseHeaders(completionEntity);
                    // Current usage
                    OpenAiApi.Usage usage = completionEntity.getBody().usage();
                    Usage currentChatResponseUsage = usage != null ? getDefaultUsage(usage) : new EmptyUsage();
                    Usage accumulatedUsage = UsageUtils.getCumulativeUsage(currentChatResponseUsage, previousChatResponse);
                    ChatResponse chatResponse = new ChatResponse(generations,
                            from(completionEntity.getBody(), rateLimit, accumulatedUsage));
                    observationContext.setResponse(chatResponse);
                    return chatResponse;
                });
        if (ToolCallingChatOptions.isInternalToolExecutionEnabled(prompt.getOptions()) && response != null
                && response.hasToolCalls()) {
            var toolExecutionResult = this.toolCallingManager.executeToolCalls(prompt, response);
            if (toolExecutionResult.returnDirect()) {
                // Return tool execution result directly to the client.
                return ChatResponse.builder()
                        .from(response)
                        .generations(ToolExecutionResult.buildGenerations(toolExecutionResult))
                        .build();
            }
            else {
                // Send the tool execution result back to the model.
                return this.internalCall(new Prompt(toolExecutionResult.conversationHistory(), prompt.getOptions()),
                        response);
            }
        }
        return response;
    }
    @Override
    public Flux<ChatResponse> stream(Prompt prompt) {
        // Before moving any further, build the final request Prompt,
        // merging runtime and default options.
        Prompt requestPrompt = buildRequestPrompt(prompt);
        return internalStream(requestPrompt, null);
    }
    public Flux<ChatResponse> internalStream(Prompt prompt, ChatResponse previousChatResponse) {
        return Flux.deferContextual(contextView -> {
            OpenAiApi.ChatCompletionRequest request = createRequest(prompt, true);
            if (request.outputModalities() != null) {
                if (request.outputModalities().stream().anyMatch(m -> m.equals("audio"))) {
                    logger.warn("Audio output is not supported for streaming requests. Removing audio output.");
                    throw new IllegalArgumentException("Audio output is not supported for streaming requests.");
                }
            }
            if (request.audioParameters() != null) {
                logger.warn("Audio parameters are not supported for streaming requests. Removing audio parameters.");
                throw new IllegalArgumentException("Audio parameters are not supported for streaming requests.");
            }
            Flux<OpenAiApi.ChatCompletionChunk> completionChunks = this.openAiApi.chatCompletionStream(request,
                    getAdditionalHttpHeaders(prompt));
            // For chunked responses, only the first chunk contains the choice role.
            // The rest of the chunks with same ID share the same role.
            ConcurrentHashMap<String, String> roleMap = new ConcurrentHashMap<>();
            final ChatModelObservationContext observationContext = ChatModelObservationContext.builder()
                    .prompt(prompt)
                    .provider(OpenAiApiConstants.PROVIDER_NAME)
                    .requestOptions(prompt.getOptions())
                    .build();
            Observation observation = ChatModelObservationDocumentation.CHAT_MODEL_OPERATION.observation(
                    this.observationConvention, DEFAULT_OBSERVATION_CONVENTION, () -> observationContext,
                    this.observationRegistry);
            observation.parentObservation(contextView.getOrDefault(ObservationThreadLocalAccessor.KEY, null)).start();
            // Convert the ChatCompletionChunk into a ChatCompletion to be able to reuse
            // the function call handling logic.
            Flux<ChatResponse> chatResponse = completionChunks.map(this::chunkToChatCompletion)
                    .switchMap(chatCompletion -> Mono.just(chatCompletion).map(chatCompletion2 -> {
                        try {
                            @SuppressWarnings("null")
                            String id = chatCompletion2.id();
                            List<Generation> generations = chatCompletion2.choices().stream().map(choice -> { // @formatter:off
                                if (choice.message().role() != null) {
                                    roleMap.putIfAbsent(id, choice.message().role().name());
                                }
                                Map<String, Object> metadata = Map.of(
                                        "id", chatCompletion2.id(),
                                        "role", roleMap.getOrDefault(id, ""),
                                        "index", choice.index(),
                                        "finishReason", choice.finishReason() != null ? choice.finishReason().name() : "",
                                        "refusal", StringUtils.hasText(choice.message().refusal()) ? choice.message().refusal() : "");
                                return buildGeneration(choice, metadata, request);
                            }).toList();
                            // @formatter:on
                            OpenAiApi.Usage usage = chatCompletion2.usage();
                            Usage currentChatResponseUsage = usage != null ? getDefaultUsage(usage) : new EmptyUsage();
                            Usage accumulatedUsage = UsageUtils.getCumulativeUsage(currentChatResponseUsage,
                                    previousChatResponse);
                            return new ChatResponse(generations, from(chatCompletion2, null, accumulatedUsage));
                        }
                        catch (Exception e) {
                            logger.error("Error processing chat completion", e);
                            return new ChatResponse(List.of());
                        }
                        // When in stream mode and enabled to include the usage, the OpenAI
                        // Chat completion response would have the usage set only in its
                        // final response. Hence, the following overlapping buffer is
                        // created to store both the current and the subsequent response
                        // to accumulate the usage from the subsequent response.
                    }))
                    .buffer(2, 1)
                    .map(bufferList -> {
                        ChatResponse firstResponse = bufferList.get(0);
                        if (request.streamOptions() != null && request.streamOptions().includeUsage()) {
                            if (bufferList.size() == 2) {
                                ChatResponse secondResponse = bufferList.get(1);
                                if (secondResponse != null && secondResponse.getMetadata() != null) {
                                    // This is the usage from the final Chat response for a
                                    // given Chat request.
                                    Usage usage = secondResponse.getMetadata().getUsage();
                                    if (!UsageUtils.isEmpty(usage)) {
                                        // Store the usage from the final response to the
                                        // penultimate response for accumulation.
                                        return new ChatResponse(firstResponse.getResults(),
                                                from(firstResponse.getMetadata(), usage));
                                    }
                                }
                            }
                        }
                        return firstResponse;
                    });
            // @formatter:off
            Flux<ChatResponse> flux = chatResponse.flatMap(response -> {
                        if (ToolCallingChatOptions.isInternalToolExecutionEnabled(prompt.getOptions()) && response.hasToolCalls()) {
                            var toolExecutionResult = this.toolCallingManager.executeToolCalls(prompt, response);
                            if (toolExecutionResult.returnDirect()) {
                                // Return tool execution result directly to the client.
                                return Flux.just(ChatResponse.builder().from(response)
                                        .generations(ToolExecutionResult.buildGenerations(toolExecutionResult))
                                        .build());
                            } else {
                                // Send the tool execution result back to the model.
                                return this.internalStream(new Prompt(toolExecutionResult.conversationHistory(), prompt.getOptions()),
                                        response);
                            }
                        }
                        else {
                            return Flux.just(response);
                        }
                    })
                    .doOnError(observation::error)
                    .doFinally(s -> observation.stop())
                    .contextWrite(ctx -> ctx.put(ObservationThreadLocalAccessor.KEY, observation));
            // @formatter:on
            return new MessageAggregator().aggregate(flux, observationContext::setResponse);
        });
    }
    private MultiValueMap<String, String> getAdditionalHttpHeaders(Prompt prompt) {
        Map<String, String> headers = new HashMap<>(this.defaultOptions.getHttpHeaders());
        if (prompt.getOptions() != null && prompt.getOptions() instanceof OpenAiChatOptions chatOptions) {
            headers.putAll(chatOptions.getHttpHeaders());
        }
        return CollectionUtils.toMultiValueMap(
                headers.entrySet().stream().collect(Collectors.toMap(Map.Entry::getKey, e -> List.of(e.getValue()))));
    }
    private Generation buildGeneration(OpenAiApi.ChatCompletion.Choice choice, Map<String, Object> metadata, OpenAiApi.ChatCompletionRequest request) {
        List<AssistantMessage.ToolCall> toolCalls = choice.message().toolCalls() == null ? List.of()
                : choice.message()
                .toolCalls()
                .stream()
                .map(toolCall -> new AssistantMessage.ToolCall(toolCall.id(), "function",
                        toolCall.function().name(), toolCall.function().arguments()))
                .reduce((tc1, tc2) -> new AssistantMessage.ToolCall(tc1.id(), "function", tc1.name(), tc1.arguments() + tc2.arguments()))
                .stream()
                .toList();
        String finishReason = (choice.finishReason() != null ? choice.finishReason().name() : "");
        var generationMetadataBuilder = ChatGenerationMetadata.builder().finishReason(finishReason);
        List<Media> media = new ArrayList<>();
        String textContent = choice.message().content();
        var audioOutput = choice.message().audioOutput();
        if (audioOutput != null) {
            String mimeType = String.format("audio/%s", request.audioParameters().format().name().toLowerCase());
            byte[] audioData = Base64.getDecoder().decode(audioOutput.data());
            Resource resource = new ByteArrayResource(audioData);
            Media.builder().mimeType(MimeTypeUtils.parseMimeType(mimeType)).data(resource).id(audioOutput.id()).build();
            media.add(Media.builder()
                    .mimeType(MimeTypeUtils.parseMimeType(mimeType))
                    .data(resource)
                    .id(audioOutput.id())
                    .build());
            if (!StringUtils.hasText(textContent)) {
                textContent = audioOutput.transcript();
            }
            generationMetadataBuilder.metadata("audioId", audioOutput.id());
            generationMetadataBuilder.metadata("audioExpiresAt", audioOutput.expiresAt());
        }
        var assistantMessage = new AssistantMessage(textContent, metadata, toolCalls, media);
        return new Generation(assistantMessage, generationMetadataBuilder.build());
    }
    private ChatResponseMetadata from(OpenAiApi.ChatCompletion result, RateLimit rateLimit, Usage usage) {
        Assert.notNull(result, "OpenAI ChatCompletionResult must not be null");
        var builder = ChatResponseMetadata.builder()
                .id(result.id() != null ? result.id() : "")
                .usage(usage)
                .model(result.model() != null ? result.model() : "")
                .keyValue("created", result.created() != null ? result.created() : 0L)
                .keyValue("system-fingerprint", result.systemFingerprint() != null ? result.systemFingerprint() : "");
        if (rateLimit != null) {
            builder.rateLimit(rateLimit);
        }
        return builder.build();
    }
    private ChatResponseMetadata from(ChatResponseMetadata chatResponseMetadata, Usage usage) {
        Assert.notNull(chatResponseMetadata, "OpenAI ChatResponseMetadata must not be null");
        var builder = ChatResponseMetadata.builder()
                .id(chatResponseMetadata.getId() != null ? chatResponseMetadata.getId() : "")
                .usage(usage)
                .model(chatResponseMetadata.getModel() != null ? chatResponseMetadata.getModel() : "");
        if (chatResponseMetadata.getRateLimit() != null) {
            builder.rateLimit(chatResponseMetadata.getRateLimit());
        }
        return builder.build();
    }
    /**
     * Convert the ChatCompletionChunk into a ChatCompletion. The Usage is set to null.
     * @param chunk the ChatCompletionChunk to convert
     * @return the ChatCompletion
     */
    private OpenAiApi.ChatCompletion chunkToChatCompletion(OpenAiApi.ChatCompletionChunk chunk) {
        List<OpenAiApi.ChatCompletion.Choice> choices = chunk.choices()
                .stream()
                .map(chunkChoice -> new OpenAiApi.ChatCompletion.Choice(chunkChoice.finishReason(), chunkChoice.index(), chunkChoice.delta(),
                        chunkChoice.logprobs()))
                .toList();
        return new OpenAiApi.ChatCompletion(chunk.id(), choices, chunk.created(), chunk.model(), chunk.serviceTier(),
                chunk.systemFingerprint(), "chat.completion", chunk.usage());
    }
    private DefaultUsage getDefaultUsage(OpenAiApi.Usage usage) {
        return new DefaultUsage(usage.promptTokens(), usage.completionTokens(), usage.totalTokens(), usage);
    }
    Prompt buildRequestPrompt(Prompt prompt) {
        // Process runtime options
        OpenAiChatOptions runtimeOptions = null;
        if (prompt.getOptions() != null) {
            if (prompt.getOptions() instanceof ToolCallingChatOptions toolCallingChatOptions) {
                runtimeOptions = ModelOptionsUtils.copyToTarget(toolCallingChatOptions, ToolCallingChatOptions.class,
                        OpenAiChatOptions.class);
            }
            else if (prompt.getOptions() instanceof FunctionCallingOptions functionCallingOptions) {
                runtimeOptions = ModelOptionsUtils.copyToTarget(functionCallingOptions, FunctionCallingOptions.class,
                        OpenAiChatOptions.class);
            }
            else {
                runtimeOptions = ModelOptionsUtils.copyToTarget(prompt.getOptions(), ChatOptions.class,
                        OpenAiChatOptions.class);
            }
        }
        // Define request options by merging runtime options and default options
        OpenAiChatOptions requestOptions = ModelOptionsUtils.merge(runtimeOptions, this.defaultOptions,
                OpenAiChatOptions.class);
        // Merge @JsonIgnore-annotated options explicitly since they are ignored by
        // Jackson, used by ModelOptionsUtils.
        if (runtimeOptions != null) {
            requestOptions.setHttpHeaders(
                    mergeHttpHeaders(runtimeOptions.getHttpHeaders(), this.defaultOptions.getHttpHeaders()));
            requestOptions.setInternalToolExecutionEnabled(
                    ModelOptionsUtils.mergeOption(runtimeOptions.isInternalToolExecutionEnabled(),
                            this.defaultOptions.isInternalToolExecutionEnabled()));
            requestOptions.setToolNames(ToolCallingChatOptions.mergeToolNames(runtimeOptions.getToolNames(),
                    this.defaultOptions.getToolNames()));
            requestOptions.setToolCallbacks(ToolCallingChatOptions.mergeToolCallbacks(runtimeOptions.getToolCallbacks(),
                    this.defaultOptions.getToolCallbacks()));
            requestOptions.setToolContext(ToolCallingChatOptions.mergeToolContext(runtimeOptions.getToolContext(),
                    this.defaultOptions.getToolContext()));
        }
        else {
            requestOptions.setHttpHeaders(this.defaultOptions.getHttpHeaders());
            requestOptions.setInternalToolExecutionEnabled(this.defaultOptions.isInternalToolExecutionEnabled());
            requestOptions.setToolNames(this.defaultOptions.getToolNames());
            requestOptions.setToolCallbacks(this.defaultOptions.getToolCallbacks());
            requestOptions.setToolContext(this.defaultOptions.getToolContext());
        }
        ToolCallingChatOptions.validateToolCallbacks(requestOptions.getToolCallbacks());
        return new Prompt(prompt.getInstructions(), requestOptions);
    }
    private Map<String, String> mergeHttpHeaders(Map<String, String> runtimeHttpHeaders,
                                                 Map<String, String> defaultHttpHeaders) {
        var mergedHttpHeaders = new HashMap<>(defaultHttpHeaders);
        mergedHttpHeaders.putAll(runtimeHttpHeaders);
        return mergedHttpHeaders;
    }
    /**
     * Accessible for testing.
     */
    OpenAiApi.ChatCompletionRequest createRequest(Prompt prompt, boolean stream) {
        List<OpenAiApi.ChatCompletionMessage> chatCompletionMessages = prompt.getInstructions().stream().map(message -> {
            if (message.getMessageType() == MessageType.USER || message.getMessageType() == MessageType.SYSTEM) {
                Object content = message.getText();
                if (message instanceof UserMessage userMessage) {
                    if (!CollectionUtils.isEmpty(userMessage.getMedia())) {
                        List<OpenAiApi.ChatCompletionMessage.MediaContent> contentList = new ArrayList<>(List.of(new OpenAiApi.ChatCompletionMessage.MediaContent(message.getText())));
                        contentList.addAll(userMessage.getMedia().stream().map(this::mapToMediaContent).toList());
                        content = contentList;
                    }
                }
                return List.of(new OpenAiApi.ChatCompletionMessage(content,
                        OpenAiApi.ChatCompletionMessage.Role.valueOf(message.getMessageType().name())));
            }
            else if (message.getMessageType() == MessageType.ASSISTANT) {
                var assistantMessage = (AssistantMessage) message;
                List<OpenAiApi.ChatCompletionMessage.ToolCall> toolCalls = null;
                if (!CollectionUtils.isEmpty(assistantMessage.getToolCalls())) {
                    toolCalls = assistantMessage.getToolCalls().stream().map(toolCall -> {
                        var function = new OpenAiApi.ChatCompletionMessage.ChatCompletionFunction(toolCall.name(), toolCall.arguments());
                        return new OpenAiApi.ChatCompletionMessage.ToolCall(toolCall.id(), toolCall.type(), function);
                    }).toList();
                }
                OpenAiApi.ChatCompletionMessage.AudioOutput audioOutput = null;
                if (!CollectionUtils.isEmpty(assistantMessage.getMedia())) {
                    Assert.isTrue(assistantMessage.getMedia().size() == 1,
                            "Only one media content is supported for assistant messages");
                    audioOutput = new OpenAiApi.ChatCompletionMessage.AudioOutput(assistantMessage.getMedia().get(0).getId(), null, null, null);
                }
                return List.of(new OpenAiApi.ChatCompletionMessage(assistantMessage.getText(),
                        OpenAiApi.ChatCompletionMessage.Role.ASSISTANT, null, null, toolCalls, null, audioOutput));
            }
            else if (message.getMessageType() == MessageType.TOOL) {
                ToolResponseMessage toolMessage = (ToolResponseMessage) message;
                toolMessage.getResponses()
                        .forEach(response -> Assert.isTrue(response.id() != null, "ToolResponseMessage must have an id"));
                return toolMessage.getResponses()
                        .stream()
                        .map(tr -> new OpenAiApi.ChatCompletionMessage(tr.responseData(), OpenAiApi.ChatCompletionMessage.Role.TOOL, tr.name(),
                                tr.id(), null, null, null))
                        .toList();
            }
            else {
                throw new IllegalArgumentException("Unsupported message type: " + message.getMessageType());
            }
        }).flatMap(List::stream).toList();
        OpenAiApi.ChatCompletionRequest request = new OpenAiApi.ChatCompletionRequest(chatCompletionMessages, stream);
        OpenAiChatOptions requestOptions = (OpenAiChatOptions) prompt.getOptions();
        request = ModelOptionsUtils.merge(requestOptions, request, OpenAiApi.ChatCompletionRequest.class);
        // Add the tool definitions to the request's tools parameter.
        List<ToolDefinition> toolDefinitions = this.toolCallingManager.resolveToolDefinitions(requestOptions);
        if (!CollectionUtils.isEmpty(toolDefinitions)) {
            request = ModelOptionsUtils.merge(
                    OpenAiChatOptions.builder().tools(this.getFunctionTools(toolDefinitions)).build(), request,
                    OpenAiApi.ChatCompletionRequest.class);
        }
        // Remove `streamOptions` from the request if it is not a streaming request
        if (request.streamOptions() != null && !stream) {
            logger.warn("Removing streamOptions from the request as it is not a streaming request!");
            request = request.streamOptions(null);
        }
        return request;
    }
    private OpenAiApi.ChatCompletionMessage.MediaContent mapToMediaContent(Media media) {
        var mimeType = media.getMimeType();
        if (MimeTypeUtils.parseMimeType("audio/mp3").equals(mimeType) || MimeTypeUtils.parseMimeType("audio/mpeg").equals(mimeType)) {
            return new OpenAiApi.ChatCompletionMessage.MediaContent(
                    new OpenAiApi.ChatCompletionMessage.MediaContent.InputAudio(fromAudioData(media.getData()), OpenAiApi.ChatCompletionMessage.MediaContent.InputAudio.Format.MP3));
        }
        if (MimeTypeUtils.parseMimeType("audio/wav").equals(mimeType)) {
            return new OpenAiApi.ChatCompletionMessage.MediaContent(
                    new OpenAiApi.ChatCompletionMessage.MediaContent.InputAudio(fromAudioData(media.getData()), OpenAiApi.ChatCompletionMessage.MediaContent.InputAudio.Format.WAV));
        }
        else {
            return new OpenAiApi.ChatCompletionMessage.MediaContent(
                    new OpenAiApi.ChatCompletionMessage.MediaContent.ImageUrl(this.fromMediaData(media.getMimeType(), media.getData())));
        }
    }
    private String fromAudioData(Object audioData) {
        if (audioData instanceof byte[] bytes) {
            return String.format("data:;base64,%s", Base64.getEncoder().encodeToString(bytes));
        }
        throw new IllegalArgumentException("Unsupported audio data type: " + audioData.getClass().getSimpleName());
    }
    private String fromMediaData(MimeType mimeType, Object mediaContentData) {
        if (mediaContentData instanceof byte[] bytes) {
            // Assume the bytes are an image. So, convert the bytes to a base64 encoded
            // following the prefix pattern.
            return String.format("data:%s;base64,%s", mimeType.toString(), Base64.getEncoder().encodeToString(bytes));
        }
        else if (mediaContentData instanceof String text) {
            // Assume the text is a URLs or a base64 encoded image prefixed by the user.
            return text;
        }
        else {
            throw new IllegalArgumentException(
                    "Unsupported media data type: " + mediaContentData.getClass().getSimpleName());
        }
    }
    private List<OpenAiApi.FunctionTool> getFunctionTools(List<ToolDefinition> toolDefinitions) {
        return toolDefinitions.stream().map(toolDefinition -> {
            var function = new OpenAiApi.FunctionTool.Function(toolDefinition.description(), toolDefinition.name(),
                    toolDefinition.inputSchema());
            return new OpenAiApi.FunctionTool(function);
        }).toList();
    }
    @Override
    public ChatOptions getDefaultOptions() {
        return OpenAiChatOptions.fromOptions(this.defaultOptions);
    }
    @Override
    public String toString() {
        return "AlibabaOpenAiChatModel [defaultOptions=" + this.defaultOptions + "]";
    }
    /**
     * Use the provided convention for reporting observation data
     * @param observationConvention The provided convention
     */
    public void setObservationConvention(ChatModelObservationConvention observationConvention) {
        Assert.notNull(observationConvention, "observationConvention cannot be null");
        this.observationConvention = observationConvention;
    }
    public static AlibabaOpenAiChatModel.Builder builder() {
        return new AlibabaOpenAiChatModel.Builder();
    }
    public static final class Builder {
        private OpenAiApi openAiApi;
        private OpenAiChatOptions defaultOptions = OpenAiChatOptions.builder()
                .model(OpenAiApi.DEFAULT_CHAT_MODEL)
                .temperature(0.7)
                .build();
        private ToolCallingManager toolCallingManager;
        private FunctionCallbackResolver functionCallbackResolver;
        private List<FunctionCallback> toolFunctionCallbacks;
        private RetryTemplate retryTemplate = RetryUtils.DEFAULT_RETRY_TEMPLATE;
        private ObservationRegistry observationRegistry = ObservationRegistry.NOOP;
        private Builder() {
        }
        public AlibabaOpenAiChatModel.Builder openAiApi(OpenAiApi openAiApi) {
            this.openAiApi = openAiApi;
            return this;
        }
        public AlibabaOpenAiChatModel.Builder defaultOptions(OpenAiChatOptions defaultOptions) {
            this.defaultOptions = defaultOptions;
            return this;
        }
        public AlibabaOpenAiChatModel.Builder toolCallingManager(ToolCallingManager toolCallingManager) {
            this.toolCallingManager = toolCallingManager;
            return this;
        }
        @Deprecated
        public AlibabaOpenAiChatModel.Builder functionCallbackResolver(FunctionCallbackResolver functionCallbackResolver) {
            this.functionCallbackResolver = functionCallbackResolver;
            return this;
        }
        @Deprecated
        public AlibabaOpenAiChatModel.Builder toolFunctionCallbacks(List<FunctionCallback> toolFunctionCallbacks) {
            this.toolFunctionCallbacks = toolFunctionCallbacks;
            return this;
        }
        public AlibabaOpenAiChatModel.Builder retryTemplate(RetryTemplate retryTemplate) {
            this.retryTemplate = retryTemplate;
            return this;
        }
        public AlibabaOpenAiChatModel.Builder observationRegistry(ObservationRegistry observationRegistry) {
            this.observationRegistry = observationRegistry;
            return this;
        }
        public AlibabaOpenAiChatModel build() {
            if (toolCallingManager != null) {
                Assert.isNull(functionCallbackResolver,
                        "functionCallbackResolver cannot be set when toolCallingManager is set");
                Assert.isNull(toolFunctionCallbacks,
                        "toolFunctionCallbacks cannot be set when toolCallingManager is set");
                return new AlibabaOpenAiChatModel(openAiApi, defaultOptions, toolCallingManager, retryTemplate,
                        observationRegistry);
            }
            if (functionCallbackResolver != null) {
                Assert.isNull(toolCallingManager,
                        "toolCallingManager cannot be set when functionCallbackResolver is set");
                List<FunctionCallback> toolCallbacks = this.toolFunctionCallbacks != null ? this.toolFunctionCallbacks
                        : List.of();
                return new AlibabaOpenAiChatModel(openAiApi, defaultOptions, functionCallbackResolver, toolCallbacks,
                        retryTemplate, observationRegistry);
            }
            return new AlibabaOpenAiChatModel(openAiApi, defaultOptions, DEFAULT_TOOL_CALLING_MANAGER, retryTemplate,
                    observationRegistry);
        }
    }
}


接下来,我们要把AliababaOpenAiChatModel配置到Spring容器。

修改CommonConfiguration,添加配置:

@Bean
public AlibabaOpenAiChatModel alibabaOpenAiChatModel(OpenAiConnectionProperties commonProperties, OpenAiChatProperties chatProperties, ObjectProvider<RestClient.Builder> restClientBuilderProvider, ObjectProvider<WebClient.Builder> webClientBuilderProvider, ToolCallingManager toolCallingManager, RetryTemplate retryTemplate, ResponseErrorHandler responseErrorHandler, ObjectProvider<ObservationRegistry> observationRegistry, ObjectProvider<ChatModelObservationConvention> observationConvention) {
    String baseUrl = StringUtils.hasText(chatProperties.getBaseUrl()) ? chatProperties.getBaseUrl() : commonProperties.getBaseUrl();
    String apiKey = StringUtils.hasText(chatProperties.getApiKey()) ? chatProperties.getApiKey() : commonProperties.getApiKey();
    String projectId = StringUtils.hasText(chatProperties.getProjectId()) ? chatProperties.getProjectId() : commonProperties.getProjectId();
    String organizationId = StringUtils.hasText(chatProperties.getOrganizationId()) ? chatProperties.getOrganizationId() : commonProperties.getOrganizationId();
    Map<String, List<String>> connectionHeaders = new HashMap<>();
    if (StringUtils.hasText(projectId)) {
        connectionHeaders.put("OpenAI-Project", List.of(projectId));
    }
    if (StringUtils.hasText(organizationId)) {
        connectionHeaders.put("OpenAI-Organization", List.of(organizationId));
    }
    RestClient.Builder restClientBuilder = restClientBuilderProvider.getIfAvailable(RestClient::builder);
    WebClient.Builder webClientBuilder = webClientBuilderProvider.getIfAvailable(WebClient::builder);
    OpenAiApi openAiApi = OpenAiApi.builder().baseUrl(baseUrl).apiKey(new SimpleApiKey(apiKey)).headers(CollectionUtils.toMultiValueMap(connectionHeaders)).completionsPath(chatProperties.getCompletionsPath()).embeddingsPath("/v1/embeddings").restClientBuilder(restClientBuilder).webClientBuilder(webClientBuilder).responseErrorHandler(responseErrorHandler).build();
    AlibabaOpenAiChatModel chatModel = AlibabaOpenAiChatModel.builder().openAiApi(openAiApi).defaultOptions(chatProperties.getOptions()).toolCallingManager(toolCallingManager).retryTemplate(retryTemplate).observationRegistry((ObservationRegistry)observationRegistry.getIfUnique(() -> ObservationRegistry.NOOP)).build();
    Objects.requireNonNull(chatModel);
    observationConvention.ifAvailable(chatModel::setObservationConvention);
    return chatModel;
}


最后,让之前的ChatClient都使用自定义的AlibabaOpenAiChatModel.

修改CommonConfiguration中的ChatClient配置:

@Bean
public ChatClient chatClient(AlibabaOpenAiChatModel model, ChatMemory chatMemory) {
    return ChatClient.builder(model) // 创建ChatClient工厂实例
            .defaultOptions(ChatOptions.builder().model("qwen-omni-turbo").build())
            .defaultSystem("。请以友好、乐于助人和愉快的方式解答用户的各种问题。")
            .defaultAdvisors(new SimpleLoggerAdvisor()) // 添加默认的Advisor,记录日志
            .defaultAdvisors(new MessageChatMemoryAdvisor(chatMemory))
            .build(); // 构建ChatClient实例
}
@Bean
public ChatClient serviceChatClient(
        AlibabaOpenAiChatModel model,
        ChatMemory chatMemory,
        CourseTools courseTools) {
    return ChatClient.builder(model)
            .defaultSystem(CUSTOMER_SERVICE_SYSTEM)
            .defaultAdvisors(
                    new MessageChatMemoryAdvisor(chatMemory), // CHAT MEMORY
                    new SimpleLoggerAdvisor())
            .defaultTools(courseTools)
            .build();
}


4.RAG

由于训练大模型非常耗时,再加上训练语料本身比较滞后,所以大模型存在知识限制问题:

  • 知识数据比较落后,往往是几个月之前的
  • 不包含太过专业领域或者企业私有的数据

为了解决这些问题,我们就需要用到RAG了。

4.1 RAG原理

实现思路是给大模型外挂一个知识库,可以是专业领域知识,也可以是企业私有的数据。因为通常知识库数据量都是非常大的,而大模型的上下文是有大小限制的,早期的GPT上下文不能超过2000token,现在也不到200k token,因此知识库不能直接写在提示词中。所以,我们需要想办法从庞大的知识库中找到与用户问题相关的一小部分,组装成提示词,发送给大模型就可以了。

4.1.1 向量模型

向量是空间中有方向和长度的量,空间可以是二维,也可以是多维。向量既然是在空间中,两个向量之间就一定能计算距离。我们以二维向量为例,向量之间的距离有两种计算方法:

image.gif 编辑

通常,两个向量之间欧式距离越近,我们认为两个向量的相似度越高。(余弦距离相反,越大相似度越高)所以,如果我们能把文本转为向量,就可以通过向量距离来判断文本的相似度了。现在,有不少的专门的向量模型,就可以实现将文本向量化。一个好的向量模型,就是要尽可能让文本含义相似的向量,在空间中距离更近

image.gif 编辑

接下来,我们就准备一个向量模型,用于将文本向量化。

阿里云百炼平台就提供了这样的模型: image.gif 编辑

这里我们选择通用文本向量-v3,这个模型兼容OpenAI,所以我们依然采用OpenAI的配置。

修改配置文件,添加向量模型:

server:
  ai:
    openai:
      base-url: ${spring.ai.openai.base-url}
      api-key: ${spring.ai.openai.api-key}
      chat:
        options:
          model: qwen-max-latest
      embedding:
        options:
          model: text-embedding-v3
          dimensions: 1024
    vectorstore:
      redis:
        initialize-schema: true
        index: 0
        prefix: "doc:" # 向量库key前缀


4.1.2 向量数据库

向量数据库的主要作用有两个:

  • 存储向量数据
  • 基于相似度检索数据

刚好符合我们的需求。

SpringAI支持很多向量数据库,并且都进行了封装,可以用统一的API去访问:

这些库都实现了统一的接口:VectorStore,因此操作方式一模一样,大家学会任意一个,其它就都不是问题。

不过,除了最后一个库以外,其它所有向量数据库都是需要安装部署的。每个企业用的向量库都不一样。

4.2 VectorStore

VectorStore接口:

public interface VectorStore extends DocumentWriter {
    default String getName() {
                return this.getClass().getSimpleName();
        }
    // 保存文档到向量库
    void add(List<Document> documents);
    // 根据文档id删除文档
    void delete(List<String> idList);
    void delete(Filter.Expression filterExpression);
    default void delete(String filterExpression) { ... };
    // 根据条件检索文档
    List<Document> similaritySearch(String query);
    // 根据条件检索文档
    List<Document> similaritySearch(SearchRequest request);
    default <T> Optional<T> getNativeClient() {
                return Optional.empty();
        }
}


VectorStore操作向量化的基本单位是Document,我们在使用时需要将自己的知识库分割转换为一个个的Document,然后写入VectorStore.

基于内存或Redis-Stack实现向量数据库:

@Bean
    public VectorStore vectorStore(OpenAiEmbeddingModel embeddingModel) {
        return SimpleVectorStore.builder(embeddingModel).build();
    }
    /**
     * 创建RedisStack向量数据库
     *
     * @param embeddingModel 嵌入模型
     * @param properties     redis-stack的配置信息
     * @return vectorStore 向量数据库
     */
    @Bean
    public VectorStore vectorStore(EmbeddingModel embeddingModel,
                                   RedisVectorStoreProperties properties,
                                   RedisConnectionDetails redisConnectionDetails) {
        JedisPooled jedisPooled = new JedisPooled(redisConnectionDetails.getStandalone().getHost(),
                redisConnectionDetails.getStandalone().getPort()
                , redisConnectionDetails.getUsername(),
                redisConnectionDetails.getPassword());
        return RedisVectorStore.builder(jedisPooled, embeddingModel)
                .indexName(properties.getIndex())
                .prefix(properties.getPrefix())
                .initializeSchema(properties.isInitializeSchema())
                .build();
    }


文件读取和转换:

知识库太大,是需要拆分成文档片段,然后再做向量化的。而且SpringAI中向量库接收的是Document类型的文档,也就是说,我们处理文

文档读取、拆分、转换的动作并不需要我们亲自完成。在SpringAI中提供了各种文档读取的工具,可以参考官网:https://docs.spring.io/spring-ai/reference/api/etl-pipeline.html#_pdf_paragraph

比如PDF文档读取和拆分,SpringAI提供了两种默认的拆分原则:

  • PagePdfDocumentReader :按页拆分,推荐使用
  • ParagraphPdfDocumentReader :按pdf的目录拆分,不推荐,因为很多PDF不规范,没有章节标签

当然,大家也可以自己实现PDF的读取和拆分功能。

这里我们选择使用PagePdfDocumentReader

首先,我们需要在pom.xml中引入依赖:

<dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-pdf-document-reader</artifactId>
</dependency>


然后就可以利用工具把PDF文件读取并处理成Document了。

我们写一个单元测试(别忘了配置API_KEY):

@Test
public void testVectorStore(){
    Resource resource = new FileSystemResource("中二知识笔记.pdf");
    // 1.创建PDF的读取器
    PagePdfDocumentReader reader = new PagePdfDocumentReader(
            resource, // 文件源
            PdfDocumentReaderConfig.builder()
                    .withPageExtractedTextFormatter(ExtractedTextFormatter.defaults())
                    .withPagesPerDocument(1) // 每1页PDF作为一个Document
                    .build()
    );
    // 2.读取PDF文档,拆分为Document
    List<Document> documents = reader.read();
    // 3.写入向量库
    vectorStore.add(documents);
    // 4.搜索
    SearchRequest request = SearchRequest.builder()
            .query("论语中教育的目的是什么")
            .topK(1)
            .similarityThreshold(0.6)
            .filterExpression("file_name == '中二知识笔记.pdf'")
            .build();
    List<Document> docs = vectorStore.similaritySearch(request);
    if (docs == null) {
        System.out.println("没有搜索到任何内容");
        return;
    }
    for (Document doc : docs) {
        System.out.println(doc.getId());
        System.out.println(doc.getScore());
        System.out.println(doc.getText());
    }
}


4.3 RAG原理总结

OK,现在我们有了这些工具:

  • PDFReader:读取文档并拆分为片段
  • 向量大模型:将文本片段向量化
  • 向量数据库:存储向量,检索向量

让我们梳理一下要解决的问题和解决思路:

  • 要解决大模型的知识限制问题,需要外挂知识库
  • 受到大模型上下文限制,知识库不能简单的直接拼接在提示词中
  • 我们需要从庞大的知识库中找到与用户问题相关的一小部分,再组装成提示词
  • 这些可以利用文档读取器向量大模型向量数据库来解决。

所以RAG要做的事情就是将知识库分割,然后利用向量模型做向量化,存入向量数据库,然后查询的时候去检索:

第一阶段(存储知识库)

  • 将知识库内容切片,分为一个个片段
  • 将每个片段利用向量模型向量化
  • 将所有向量化后的片段写入向量数据库

第二阶段(检索知识库)

  • 每当用户询问AI时,将用户问题向量化
  • 拿着问题向量去向量数据库检索最相关的片段

第三阶段(对话大模型

  • 将检索到的片段、用户的问题一起拼接为提示词
  • 发送提示词给大模型,得到响应

image.gif 编辑

4.4 AI文献阅读助手实例

基于RAG实现一个AI文献阅读助手

整体架构:

image.gif 编辑

4.4.1 PDF文件管理

文件管理接口:

public interface FileRepository {
    /**
     * 保存文件,还要记录chatId与文件的映射关系
     * @param chatId 会话id
     * @param resource 文件
     * @return 上传成功,返回true; 否则返回false
     */
    boolean save(String chatId, Resource resource);
    /**
     * 根据chatId获取文件
     * @param chatId 会话id
     * @return 找到的文件
     */
    Resource getFile(String chatId);
}


@Slf4j
@Component
public class LocalPdfFileRepository implements FileRepository {
    @Autowired
    private CommonFileServiceImpl commonFileService;
    @Autowired
    private PdfFileMappingMapper fileMappingMapper;
    @Autowired
    private FileUtil fileUtil;
    @Autowired
    private VectorStore vectorStore;
    /**
     * 保存文件到MinIO并记录映射关系到MySQL
     */
    @Override
    public boolean save(String chatId, Resource resource) {
        try {
            // 转换Resource为MultipartFile
            MultipartFile file = convertResourceToMultipartFile(resource);
            if (file == null) {
                log.error("文件转换失败,chatId:{}", chatId);
                return false;
            }
            // 上传到MinIO
            String fileUrl = commonFileService.upload(file);
            // 保存新记录到数据库
            FileMapping mapping = FileMapping.builder()
                    .chatId(chatId)
                    .fileName(file.getOriginalFilename())
                    .filePath(fileUrl)
                    .contentType(file.getContentType())
                    .build();
            int rows = fileMappingMapper.insert(mapping);
            return rows > 0;
        } catch (Exception e) {
            log.error("保存文件映射失败,chatId:{}", chatId, e);
            return false;
        }
    }
    /**
     * 从MinIO获取文件
     */
    @Override
    public Resource getFile(String chatId) {
        try {
            // 查询数据库获取文件信息
            FileMapping mapping = fileMappingMapper.selectByChatId(chatId);
            if (mapping == null) {
                log.warn("文件映射不存在,chatId:{}", chatId);
                return null;
            }
            // 从MinIO下载文件
            String fileName=fileUtil.extractFileNameFromUrl(mapping.getFilePath());
            byte[] fileBytes = commonFileService.download(fileName);
            if (fileBytes == null || fileBytes.length == 0) {
                log.error("文件内容为空,filePath:{}", mapping.getFilePath());
                return null;
            }
            // 转换为Resource返回
            return new ByteArrayResource(fileBytes) {
                @Override
                public String getFilename() {
                    return mapping.getFileName();
                }
                @Override
                public long contentLength() {
                    return fileBytes.length;
                }
            };
        } catch (Exception e) {
            log.error("获取文件失败,chatId:{}", chatId, e);
            return null;
        }
    }
    /**
     * 转换Resource为MultipartFile(解决私有类和类型问题)
     */
    private MultipartFile convertResourceToMultipartFile(Resource resource) throws IOException {
        // 获取文件名
        String filename = Optional.ofNullable(resource.getFilename())
                .orElse("temp-" + UUID.randomUUID() + ".pdf");
        // 获取文件类型(解决Resource无getContentType()的问题)
        String contentType = null;
        if (resource.exists()) {
            // 尝试通过文件路径探测类型
            try {
                contentType = Files.probeContentType(resource.getFile().toPath());
            } catch (IOException e) {
                log.warn("通过文件路径获取类型失败,chatId:{}", e);
            }
            // 兜底:使用默认PDF类型
            if (contentType == null) {
                contentType = MediaType.APPLICATION_PDF_VALUE;
            }
        } else {
            contentType = MediaType.APPLICATION_OCTET_STREAM_VALUE;
        }
        // 读取文件内容为字节数组
        byte[] content = FileCopyUtils.copyToByteArray(resource.getInputStream());
        // 自定义MultipartFile实现(避免使用私有内部类)
        String finalContentType = contentType;
        return new MultipartFile() {
            @Override
            public String getName() {
                return "file"; // 参数名,可自定义
            }
            @Override
            public String getOriginalFilename() {
                return filename;
            }
            @Override
            public String getContentType() {
                return finalContentType;
            }
            @Override
            public boolean isEmpty() {
                return content.length == 0;
            }
            @Override
            public long getSize() {
                return content.length;
            }
            @Override
            public byte[] getBytes() throws IOException {
                return content;
            }
            @Override
            public InputStream getInputStream() throws IOException {
                return new ByteArrayInputStream(content);
            }
            @Override
            public void transferTo(File dest) throws IOException, IllegalStateException {
                FileCopyUtils.copy(content, dest);
            }
        };
    }
    /**
     * 初始化:加载向量存储
     */
    @PostConstruct
    private void init() {
        try {
            File vectorFile = new File("chat-pdf.json");
            if (vectorFile.exists() && vectorStore instanceof SimpleVectorStore) {
                ((SimpleVectorStore) vectorStore).load(vectorFile);
                log.info("向量存储已加载");
            }
        } catch (Exception e) {
            log.error("初始化向量存储失败", e);
        }
    }
    /**
     * 销毁前:保存向量存储
     */
    @PreDestroy
    private void persistent() {
        try {
            if (vectorStore instanceof SimpleVectorStore) {
                ((SimpleVectorStore) vectorStore).save(new File("chat-pdf.json"));
                log.info("向量存储已保存");
            }
        } catch (Exception e) {
            log.error("保存向量存储失败", e);
        }
    }
}


4.4.2 文献阅读助手

/**
      * 文件阅读助手
      * @param
      * @param
      * @return
      */
     @PostMapping(value = "/chat", produces = "text/html;charset=utf-8")
     @Operation(summary = "文件阅读助手")
     public Flux<String> chat(@RequestBody PDFDto pdfDto) {
         String prompt = pdfDto.getPrompt();
         String chatId = pdfDto.getChatId();
         // 1.找到会话文件
         Resource file = fileRepository.getFile(chatId);
         if (!file.exists()) {
             // 文件不存在,不回答
             throw new RuntimeException("会话文件不存在!");
         }
         // 2.保存会话id
         chatHistoryRepository.save("pdf", chatId);
         // 3.请求模型
         return pdfChatClient.prompt()
                 .user(prompt)
                 .advisors(a -> a.param(CHAT_MEMORY_CONVERSATION_ID_KEY, chatId))
                 .advisors(a -> a.param(FILTER_EXPRESSION, "file_name == '" + file.getFilename() + "'"))
                 .stream()
                 .content();
     }
     /**
      * 阅读助手文件上传
      */
     @PostMapping("/upload/{chatId}")
     @Operation(summary = "阅读助手文件上传")
     public Result uploadPdf(@PathVariable String chatId, @RequestParam("file") MultipartFile file) {
         try {
             // 1. 校验文件是否为PDF格式
             if (!Objects.equals(file.getContentType(), "application/pdf")) {
                 return Result.fail("只能上传PDF文件!");
             }
             // 2.保存文件
             boolean success = fileRepository.save(chatId, file.getResource());
             if (!success) {
                 return Result.fail("保存文件失败!");
             }
             // 3.写入向量库
             this.writeToVectorStore(file.getResource());
             return Result.success();
         } catch (Exception e) {
             log.error("Failed to upload PDF.", e);
             return Result.fail("上传文件失败!");
         }
     }
     /**
      * 阅读助手文件下载
      */
     @GetMapping("/file/{chatId}")
     @Operation(summary = "阅读助手文件下载")
     public ResponseEntity<Resource> download(@PathVariable("chatId") String chatId) throws IOException {
         // 1.读取文件
         Resource resource = fileRepository.getFile(chatId);
         if (!resource.exists()) {
             return ResponseEntity.notFound().build();
         }
         // 2.文件名编码,写入响应头
         String filename = URLEncoder.encode(Objects.requireNonNull(resource.getFilename()), StandardCharsets.UTF_8);
         // 3.返回文件
         return ResponseEntity.ok()
                 .contentType(MediaType.APPLICATION_OCTET_STREAM)
                 .header("Content-Disposition", "attachment; filename=\"" + filename + "\"")
                 .body(resource);
     }
//     private void writeToVectorStore(Resource resource) {
//         // 1.创建PDF的读取器
//         PagePdfDocumentReader reader = new PagePdfDocumentReader(
//                 resource, // 文件源
//                 PdfDocumentReaderConfig.builder()
//                         .withPageExtractedTextFormatter(ExtractedTextFormatter.defaults())
//                         .withPagesPerDocument(1) // 每1页PDF作为一个Document
//                         .build()
//         );
//         // 2.读取PDF文档,拆分为Document
//         List<Document> documents = reader.read();
//         // 3.写入向量库
//         vectorStore.add(documents);
//     }
        private void writeToVectorStore(Resource resource) {
            try {
                // 使用 Tika 解析 PDF 内容
                ContentHandler handler = new BodyContentHandler(-1); // 不限制内容长度
                Metadata metadata = new Metadata();
                ParseContext context = new ParseContext();
                PDFParser parser = new PDFParser();
                // 解析 PDF 并提取文本
                parser.parse(resource.getInputStream(), handler, metadata, context);
                String content = handler.toString();
                // 关键修复:将 Metadata 转换为 Map
                Map<String, Object> metadataMap = new HashMap<>();
                for (String name : metadata.names()) {
                    metadataMap.put(name, metadata.get(name));
                }
                // 补充文件名到元数据(可选)
                metadataMap.put("file_name", resource.getFilename());
                // 创建 Document 并写入向量库
                Document document = new Document(
                        resource.getFilename(), // 文档 ID
                        content, // 提取的文本内容
                        metadataMap // 转换后的元数据 Map
                );
                vectorStore.add(List.of(document));
            } catch (Exception e) {
                log.error("Failed to parse PDF with Tika", e);
                throw new RuntimeException("解析PDF失败", e);
            }
        }


ChatClient配置:

/**
     * AI文献阅读助手
     * @param model
     * @param chatMemory
     * @param vectorStore
     * @return
     */
    @Bean
    public ChatClient pdfChatClient(OpenAiChatModel model, ChatMemory chatMemory, VectorStore vectorStore) {
        return ChatClient
                .builder(model)
                .defaultSystem("请根据上下文回答问题,遇到上下文没有的问题,不要随意编造。")
                .defaultAdvisors(
                        new SimpleLoggerAdvisor(),
                        new MessageChatMemoryAdvisor(chatMemory),
                        new QuestionAnswerAdvisor(
                                vectorStore,
                                SearchRequest.builder()
                                        .similarityThreshold(0.6)
                                        .topK(2)
                                        .build()
                        )
                )
                .build();
    }


5.多模态

多模态是指不同类型的数据输入,如文本、图像、声音、视频等。目前为止,我们与大模型交互都是基于普通文本输入,这跟我们选择的大模型有关。deepseek、qwen-max等模型都是纯文本模型,在ollama和百炼平台,我们也能找到很多多模态模型。

以ollama为例,在搜索时点击vison,就能找到支持图像识别的模型: image.gif 编辑

在阿里云百炼平台也一样: image.gif 编辑

阿里云的qwen-omni模型是支持文本、图像、音频、视频输入的全模态模型,还能支持语音合成功能,非常强大。

注意

在SpringAI的当前版本(1.0.0-m6)中,qwen-omni与SpringAI中的OpenAI模块的兼容性有问题,目前仅支持文本和图片两种模态。音频会有数据格式错误问题,视频完全不支持。

目前的解决方案有两种:

  • 一是使用spring-ai-alibaba来替代。
  • 二是重写OpenAIModel的实现

多模态Agent实例:

/**
     * 智能体对话多模态助手
     * @param model
     * @param chatMemory
     * @param vectorStore
     * @return
     */
    @Bean
    public ChatClient chatCommonClient(AlibabaOpenAiChatModel model, ChatMemory chatMemory,VectorStore vectorStore,  AINoteTools aiNoteTools) {
        return ChatClient
                .builder(model)
                .defaultOptions(ChatOptions.builder()
                        .model("qwen-omni-turbo")
                        .build())
                .defaultSystem(AIChatConstant.CHAT_ROLE)
                .defaultAdvisors(
                        new SimpleLoggerAdvisor(),
                        new MessageChatMemoryAdvisor(chatMemory),
                        new QuestionAnswerAdvisor(
                                vectorStore,
                                SearchRequest.builder()
                                        .similarityThreshold(0.6)
                                        .topK(2)
                                        .build()
                        )
                )
                .defaultTools(List.of(aiNoteTools))
                .build();
    }


/**
     * 智能体对话
     * @param prompt
     * @param chatId
     * @param files
     * @return
     */
    @PostMapping(value = "/commonChat", produces = "text/html;charset=utf-8")
    @Operation(summary = "智能体对话")
    public Flux<String> chat(@RequestParam("prompt") String prompt, @RequestParam(required = false) String chatId,
                             @RequestParam(value = "files", required = false) List<MultipartFile> files) {
        // 1.保存会话,id
        chatHistoryRepository.save("chat", chatId);
        // 2.请求模型
        if (files == null || files.isEmpty()) {
            // 没有附件,纯文本聊天
            return textChat(prompt, chatId);
        } else {
            // 有附件,多模态聊天
            return multiModalChat(prompt, chatId, files);
        }
    }
    private Flux<String> multiModalChat(String prompt, String chatId, List<MultipartFile> files) {
        // 1.解析多媒体
        List<Media> medias = files.stream()
                .map(file -> new Media(
                                MimeType.valueOf(Objects.requireNonNull(file.getContentType())),
                                file.getResource()
                        )
                )
                .toList();
        // 2.请求模型
        return chatCommonClient.prompt()
                .user(p -> p.text(prompt).media(medias.toArray(Media[]::new)))
                .advisors(a -> a.param(CHAT_MEMORY_CONVERSATION_ID_KEY, chatId))
                .stream()
                .content();
    }
    private Flux<String> textChat(String prompt, String chatId) {
        return chatCommonClient.prompt()
                .user(prompt)
                .advisors(a -> a.param(CHAT_MEMORY_CONVERSATION_ID_KEY, chatId))
                .stream()
                .content();
    }



相关文章
|
9天前
|
存储 人工智能 NoSQL
大模型应用开发3-LangChain4j实战
本文介绍了LangChain4j框架的使用方法,主要包括以下内容:1. 基础配置:创建SpringBoot项目并配置OpenAI聊天模型;2. AIServices工具类:简化模型调用,支持流式和阻塞式两种调用方式;3. 会话记忆功能:实现多轮对话记忆,支持会话隔离和Redis持久化存储;4. RAG检索增强:通过向量数据库存储和检索专业领域知识,提升大模型回答质量;5. Tools工具:通过Function Calling机制实现业务功能调用。文章详细讲解了每个功能的实现步骤,包括代码示例和配置方法,帮助
|
9天前
|
人工智能 Linux API
阿里云+本地三系统部署 OpenClaw 及精准参数调优手册:千问/Coding Plan模型对接教程
在日常使用OpenClaw(原Clawdbot)的过程中,很多用户都会遇到输出随机、答非所问、重复啰嗦、长度失控等问题,这些并非模型能力不足,而是**温度、最大生成长度、采样参数、惩罚系数**没有匹配场景。与此同时,正确完成云端与本地部署、对接稳定大模型,是让AI稳定输出的前提。
523 17
|
9天前
|
人工智能 自然语言处理 Java
大模型应用开发5-SpringAIalibaba实战
本文介绍了SpringAIAlibaba开源项目,该项目基于SpringAI构建,为阿里云通义系列模型提供Java开发实践。主要内容包括: 基础使用:配置模型API、依赖引入、调用示例,支持同步和流式调用; 多种集成方式:对接本地Ollama模型、ChatClient高级API、SSE流式输出; 核心功能实现:提示词模板、结构化输出、持久化内存、文本生成图片/语音; 高级能力:向量数据库、RAG增强检索、工具调用(Tool Calling); MCP协议:标准化工具调用方案,实现服务端工具共享;
|
9天前
|
机器学习/深度学习 存储 人工智能
大模型应用开发1-认识大模型
摘要: 本文系统介绍了大模型的基础概念、本地部署及API调用方法。首先阐述了AI及神经网络的基本原理,重点解析了Transformer架构及其在大语言模型(LLM)中的应用。其次详细对比了三种模型使用方案(开放API/云部署/本地部署)的优缺点,并以Ollama为例演示了本地部署流程,包括模型管理、交互指令和GPU加速配置。最后说明了大模型API调用规范,列举了主流大模型产品及其应用场景,强调大模型在自然语言处理、内容生成等领域的优势,以及与传统编程结合开发智能应用的可能性。全文涵盖技术原理到实践操作,为大
|
10天前
|
JSON 自然语言处理 数据库
详解ElasticSearch1-基础使用
摘要:本文探讨了数据库模糊搜索的局限性及Elasticsearch(ES)的优势。数据库模糊查询存在性能低、功能单一等问题,而ES通过倒排索引技术实现高效搜索,支持复杂查询需求。文章详细介绍了ES的核心概念、安装部署、索引库操作(CRUD)、文档管理及Java API集成方法,并对比了ES与MySQL的适用场景。最后演示了批量导入文档的实践方案,为海量数据搜索场景提供了专业解决方案。(149字)
|
13天前
|
缓存 Java 数据库
【Spring Boot】Spring Boot 全体系知识结构化拆解(附 Spring Boot 高频面试八股文精简版)
Spring Boot 是 Pivotal 基于 Spring 的“约定大于配置”快速开发框架,简化初始搭建与开发,无缝整合 Spring 全生态,内嵌容器、自动配置、起步依赖开箱即用,是 Java 企业级应用与微服务架构的核心基石。
|
2月前
|
人工智能 Java 决策智能
用Spring AI Alibaba把MultiAgent实现从5天压到5小时
本文详解Spring AI Alibaba新版本的Multi-agent能力,涵盖React/Planning核心模式、手写框架与成熟框架差异,并通过Plan-Execute实战示例,展示如何基于Graph工作流快速构建可扩展、易维护的智能体系统,助力Java开发者高效落地AI应用。
用Spring AI Alibaba把MultiAgent实现从5天压到5小时
|
9天前
|
存储 JSON 自然语言处理
大模型应用开发-LangChain框架基础
本文摘要: 文章系统介绍了大模型技术应用与开发的全流程,涵盖云端/本地模型部署、Prompt工程、LangChain框架及RAG项目实战。主要内容包括: 模型部署 阿里云百炼平台API接入与安全配置 Ollama本地模型部署方案 OpenAI兼容SDK的多平台调用方法 Prompt工程 Zero-shot/Few-shot提示技巧 金融文本分类/信息抽取实战案例 JSON数据结构处理与模板设计 LangChain框架 组件化架构:Models/Prompts/Memory/Vectorstores 链式调用
|
9天前
|
Ubuntu 关系型数据库 Java
PostgreSQL数据库与PgVector向量插件基础使用
本文详细介绍了在Ubuntu系统上部署PgVector向量数据库并与SpringBoot集成的方法。主要内容包括:1) Ubuntu环境配置,包括PostgreSQL安装、PgVector插件编译和数据库设置;2) 向量数据库基础操作,如创建表、插入向量数据和相似度查询;3) SpringBoot集成方案,提供JDBC连接配置、实体类定义和JPA查询实现;4) SpringAI框架下的高级应用,展示如何将PgVector作为向量存储与AI模型集成。文章还包含远程连接配置、性能优化建议和完整的测试案例,为开发
|
6天前
|
人工智能 自然语言处理 安全
Spring AI Alibaba 人工介入实战|Human-in-the-Loop 让 AI 更可靠
本文详解 Spring AI Alibaba 人工介入 Hook 实战,通过 Human-in-the-Loop 实现 AI 智能体执行暂停、人工审批与流程恢复,让 AI 应用更安全可控。
190 8

热门文章

最新文章
