一、Spring Boot 整合 MyBatis
MyBatis的自动配置

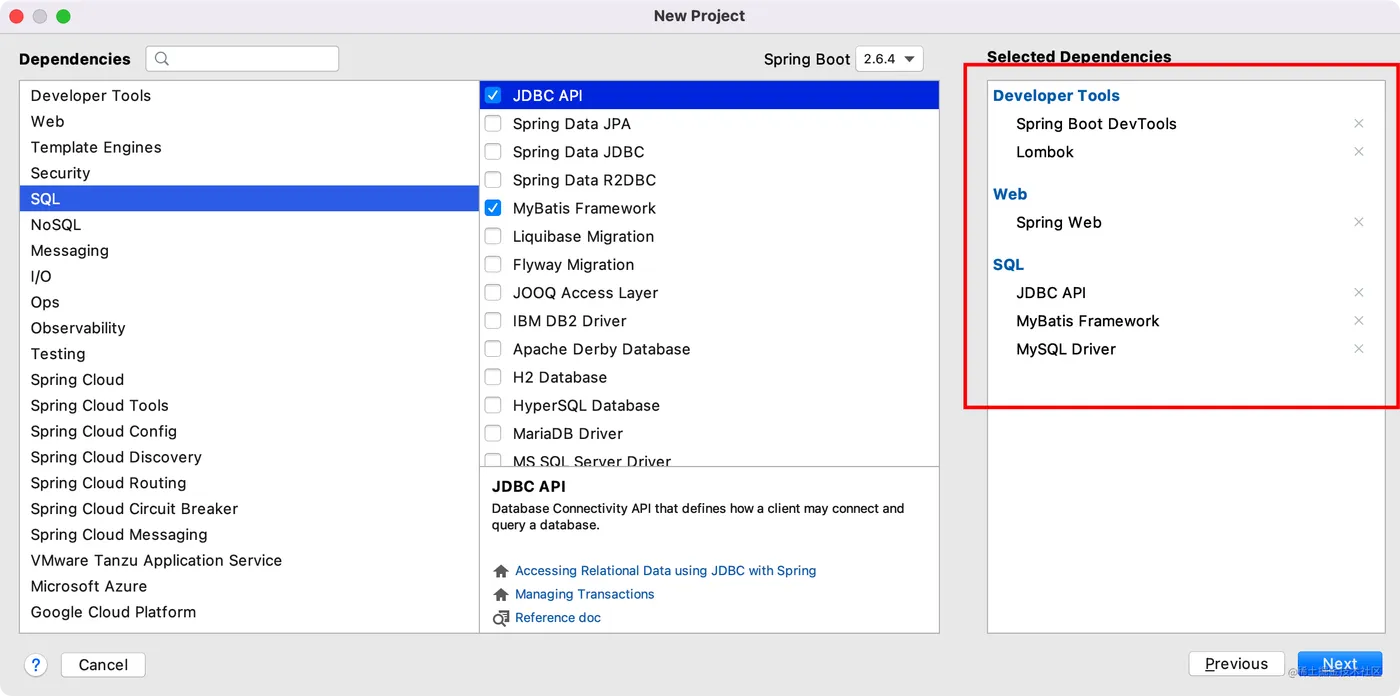

创建工程spring-boot-mybatis,创建项目时勾选MyBatis Framework会自动引入MyBatis的Starter

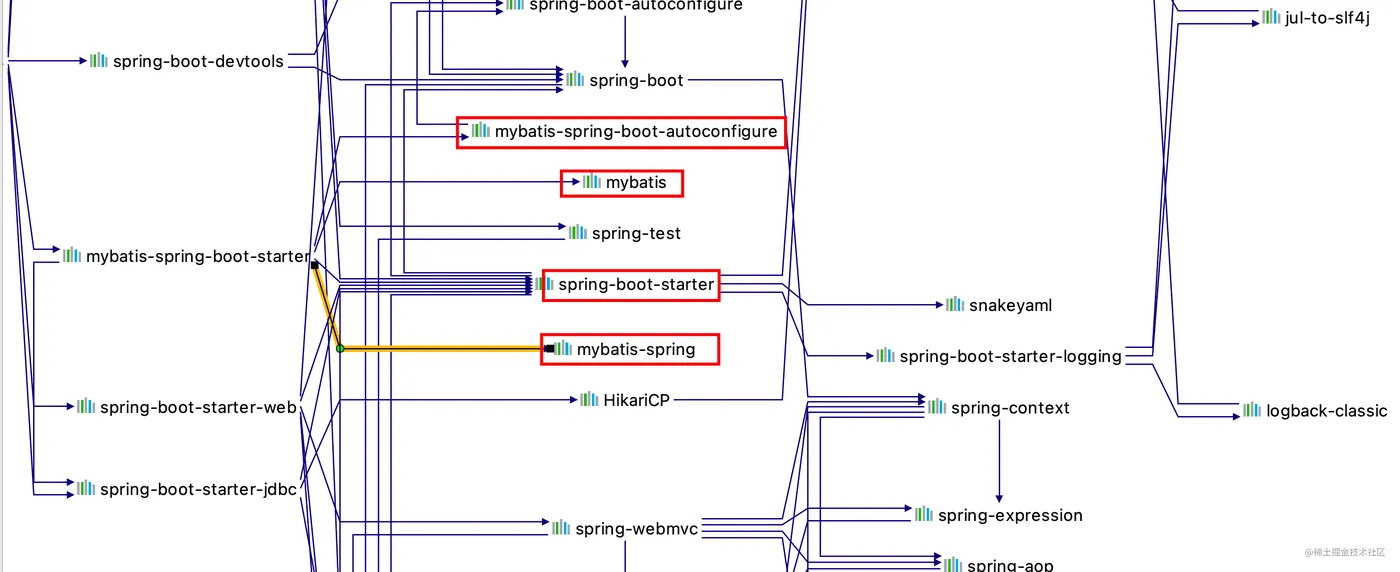

分析Mybatis的Staters启动器依赖
MyBatis的自动配置类和配置项类都在autoconfigure包下
MyBatis自动配置类依赖了SqlSessionFactory和SqlSessionFactoryBean以及DataSource类,并且启用了MyBatisProperties类中的属性作为配置项,并且在DataSourceAutoConfiguration自动配置类和MybatisLanguageDriverAutoConfiguration类生效后才会生效。

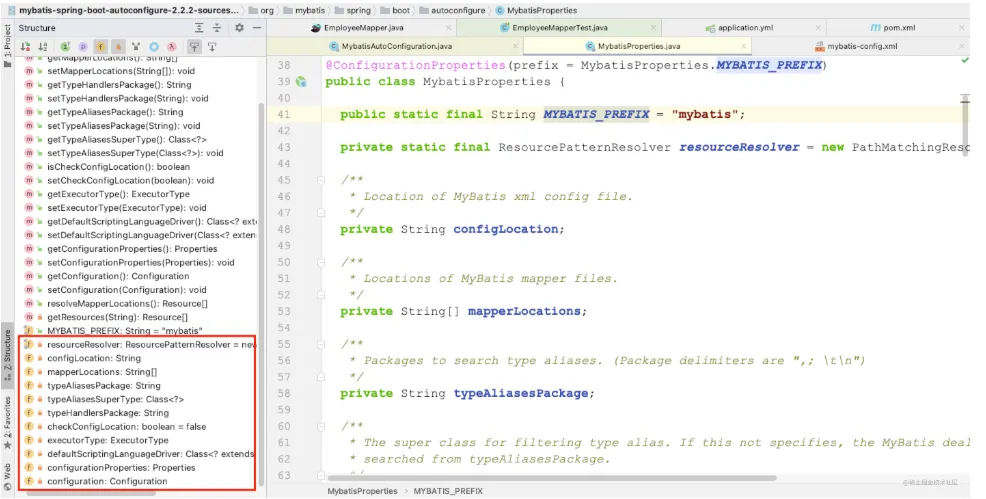

MyBatisProperties类源码中包含了mybatis的配置项
MyBatis的配置前缀都是以mybatis开头
配置Druid数据源
引入driud
<dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.2.8</version> </dependency> 复制代码
Druid数据源配置可以参考 Spring 全家桶之 Spring Boot 2.6.4(四)- Data Access(Part A JDBC)
初始化项目
在resources目录下放置employee.sql和department.sql文件
SET FOREIGN_KEY_CHECKS=0; -- ---------------------------- -- Table structure for employee -- ---------------------------- DROP TABLE IF EXISTS `employee`; CREATE TABLE `employee` ( `id` int(11) NOT NULL AUTO_INCREMENT, `lastName` varchar(255) DEFAULT NULL, `email` varchar(255) DEFAULT NULL, `gender` int(2) DEFAULT NULL, `d_id` int(11) DEFAULT NULL, PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8; 复制代码
SET FOREIGN_KEY_CHECKS=0; -- ---------------------------- -- Table structure for department -- ---------------------------- DROP TABLE IF EXISTS `department`; CREATE TABLE `department` ( `id` int(11) NOT NULL AUTO_INCREMENT, `departmentName` varchar(255) DEFAULT NULL, PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8; 复制代码
entity目录中创建两个实体类Employee和Department对应employee表和Department表
@Data public class Employee { private Integer id; private String lastName; private String email; private Integer gender; private Integer dId; } 复制代码
@Data public class Department { private Integer id; private String departmentName; } 复制代码
配置自定义数据源初始化类,初始化数据源
@Configuration public class LilithDataSourceInitializer { @Value("classpath:employee.sql") private Resource employee; @Value("classpath:department.sql") private Resource department; @Bean public DataSourceInitializer dataSourceInitializer(final DataSource dataSource){ final DataSourceInitializer initializer = new DataSourceInitializer(); initializer.setDataSource(dataSource); initializer.setDatabasePopulator(databasePopulator()); return initializer; } private DatabasePopulator databasePopulator(){ final ResourceDatabasePopulator populator = new ResourceDatabasePopulator(); populator.addScripts(employee,department); return populator; } } 复制代码
启动应用,Spring Boot会自动在数据库表创建,再次启动之前如果不想初始化数据可以将@Configuration注解注释掉
二、MyBatis注解方式的使用
创建DepartmentMapper接口,使用注解标注增删改查的SQL语句
@Mapper public interface DepartmentMapper { @Select("SELECT * FROM department WHERE id = #{id}") Department selectOneById(Integer id); @Delete("DELETE FROM department WHERE id = #{id}") void deleteOneById(Integer id); @Insert("INSERT INTO department (department_name) VALUES (#{departmentName})") void insert(Department department); @Update("UPDATE department SET department_name = #{departmentName} where id = #{departmentId}") void update(Department department); } 复制代码
创建DepartmentMapperTest测试类,测试DepartmentMapper中的增删改查方法
@SpringBootTest public class DepartmentMapperTest { @Resource private DepartmentMapper departmentMapper; @Test public void selectOneById() { Department department = departmentMapper.selectOneById(1); System.out.println(department); } @Test public void insert() { Department department = new Department(); department.setDepartmentName("Avengers"); departmentMapper.insert(department); } } 复制代码

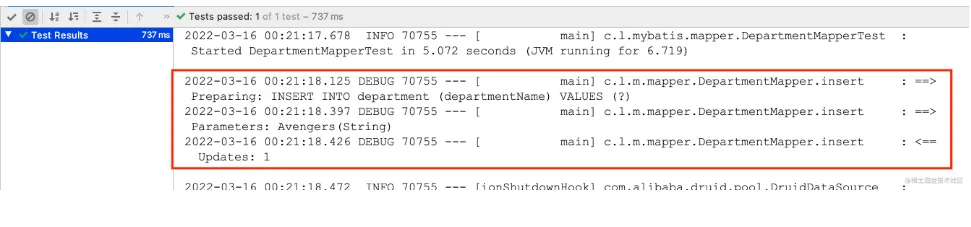

测试insert方法

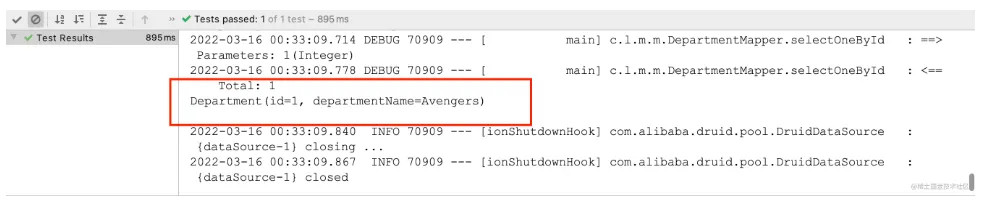

测试selectOneById方法
MyBatis 配置驼峰命名转换
修改Department表departmentName为下划线形式department_name;再次执行selectOneById方法

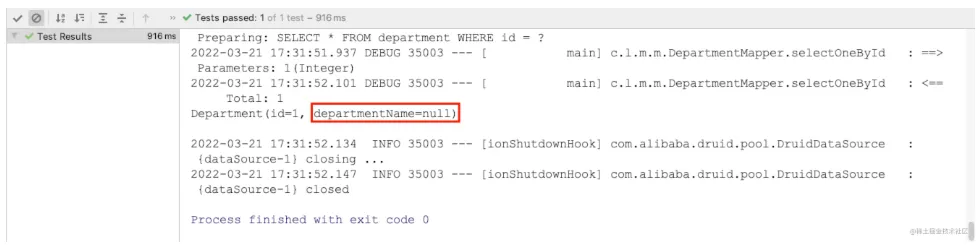

查询到DepartmentName属性为空,这时可以在yml配置文件中开启驼峰命名转换
mybatis: configuration: map-underscore-to-camel-case: true 复制代码

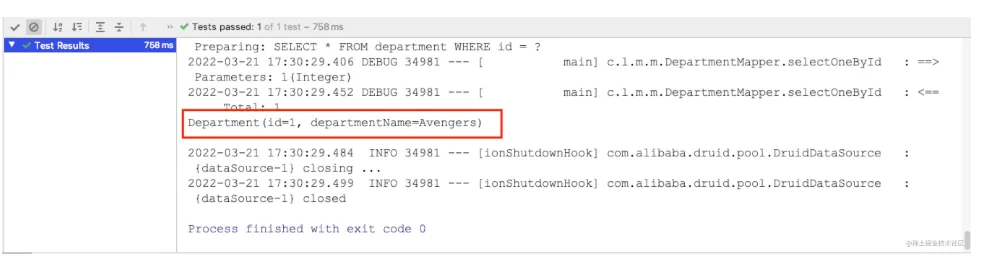

再次查询既可以查询到指定的是数据
配置类开启驼峰命名转换

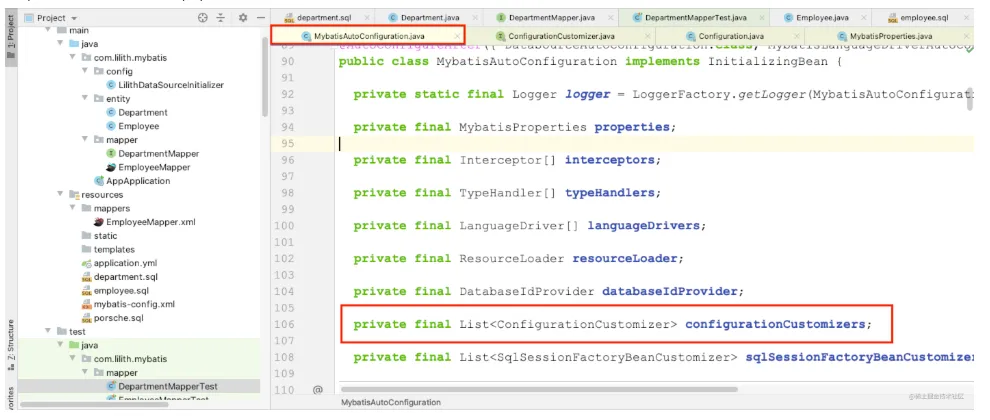

也可以使用配置类来开启驼峰命名转换,MyBatisAutoConfuguration中包含了configurationCustomizers属性,这是一个List列表,包含了所有的自定义配置

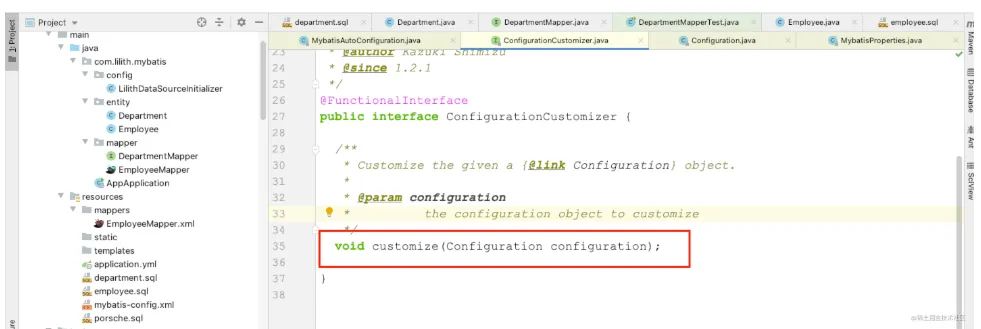

而ConfigurationCustomizer接口中有一个customize方法,该方法传入Configuration自定义配置

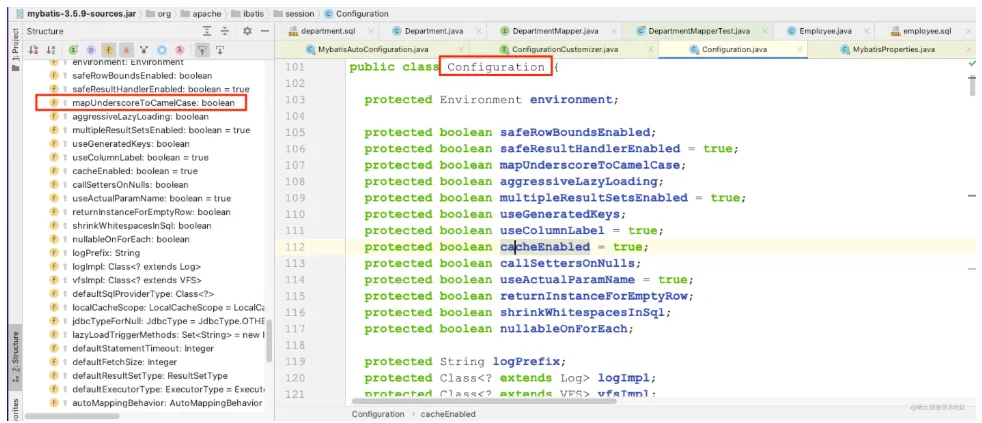

Configuration类中的属性就是可以自定义的配置
在config包下新建LilithMyBatisConfig配置类,新增一个configurationCustomizer方法,既往容器中注入ConfigurationCustomizer设置了属性的实现类
@Configuration public class LilithMyBatisConfig { @Bean public ConfigurationCustomizer configurationCustomizer(){ return configuration -> configuration.setMapUnderscoreToCamelCase(true); } } 复制代码
这里使用lambda表达式实现了ConfigurationCustomizer接口中的customize方法
将yml文件中的驼峰命名转换注释,重新执行selectOneById方法
可以成功查询出数据。
@Mapper注解
@Mapper注解是自动配置的关键,标记当前类为容器的一个组件,缺少@Mapper注解将无法启动。
当Mapper接口非常多是,给每一个Mapper接口增加@Mapper注解非常麻烦,可以在主启动类上使用@MapperScan注解,扫描所有的Mapper接口
三、MyBatis配置文件方式的使用
创建Mapper接口EmployeeMapper,需要说明的是无论是注解还是配置文件方式使用MyBatis,@Mapper注解或者@MapperScan注解都是必不可少的。
@Mapper public interface EmployeeMapper { void insert(Employee employee); Employee selectOneById(Integer id); } 复制代码
在resources目录下创建mappers文件夹,新增EmployeeMapper.xml文件,增加Mapper接口中selectOneById方法和insert方法对应的SQL语句
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.lilith.mybatis.mapper.EmployeeMapper"> <select id="selectOneById" resultType="com.lilith.mybatis.entity.Employee"> select * from employee where id = #{id} </select> <insert id="insert" useGeneratedKeys="true" keyProperty="id" keyColumn="id"> INSERT INTO employee (last_name, email, gender, d_id) VALUES (#{lastName}, #{email}, #{gender},#{dId}) </insert> </mapper> 复制代码
yml中增加mybatis配置
mybatis: # 全局配置文件的位置 config-location: classpath:mybatis-config.xml mapper-locations: classpath:mappers/*.xml configuration: map-underscore-to-camel-case: true 复制代码
书写测试类
@SpringBootTest public class EmployeeMapperTest { @Resource private EmployeeMapper employeeMapper; @Test public void insert() { Employee employee = new Employee(); employee.setLastName("Thanos"); employee.setEmail("thanos@gmail.com"); employee.setGender(1); employee.setDId(1); employeeMapper.insert(employee); } @Test public void selectOneById() { Employee employee = employeeMapper.selectOneById(1); System.out.println(employee); } } 复制代码
执行插入方法

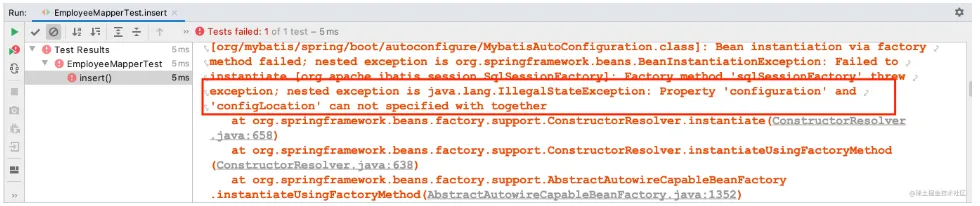

错误提示config-location和configuration不能同时写在yml文件中; 在resources目录下新建MyBatis全局配置文件,把configuration配置到mybatis-config.xml全局配置文件中
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd"> <configuration> <settings> <setting name="mapUnderscoreToCamelCase" value="true"/> </settings> </configuration> 复制代码

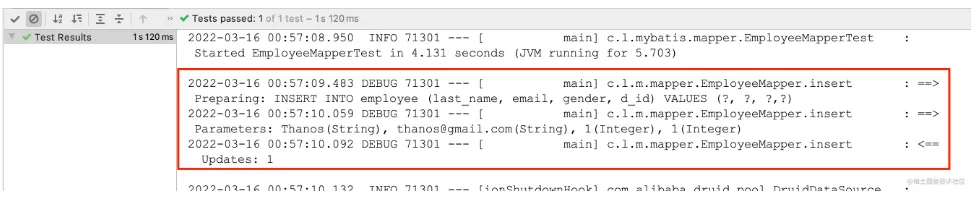

再次执行测试
控制台显示有1行成功更新,数据被成功插入到输入句酷表中

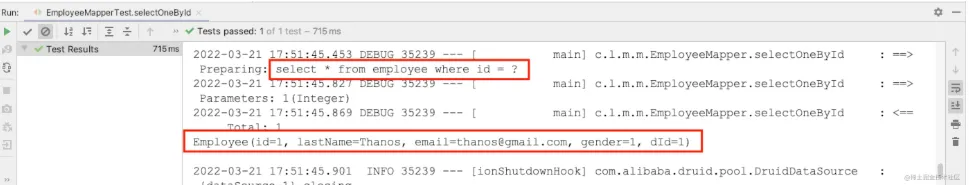

执行selectOneById方法
成功查询出insert方法插入的数据
