Flutter for OpenHarmony 实战之基础组件:第一篇 Container 容器组件完全指南

简介: 本文是 Flutter for OpenHarmony 开发的首篇基础组件指南,深度解析 Container 容器组件:涵盖尺寸控制、margin/padding 区别、Alignment 对齐、BoxDecoration 装饰(渐变/圆角/阴影),并重点讲解 OpenHarmony 多分辨率适配、刘海屏安全区处理及性能优化技巧,助你打造高质量跨端 UI。(239字)

Flutter for OpenHarmony 实战之基础组件:第一篇 Container 容器组件完全指南

前言

在 Flutter for OpenHarmony 开发中,Container 是构建 UI 界面的基石组件。它类似于 Web 开发中的 标签,可以控制子组件的尺寸、位置、装饰等。
本文你将学到

  • Container 的核心属性与用法
  • BoxDecoration 装饰器详解(渐变、圆角、阴影)
  • margin 与 padding 的区别
  • 响应式尺寸适配技巧
  • OpenHarmony 多分辨率适配最佳实践

一、Container 基础概念

1.1 什么是 Container

Container 是 Flutter 中一个组合型 Widget,它将多个单一功能的 Widget 封装在一起,提供了便捷的一站式布局解决方案。
首先在项目根路径下,创建 lib/widgets/basic_container_example.dart

将 widgets 为组件目录,该目录下防止我们编写可复用的组件,当然你也可以将其更改为 components 或者其他的名称亦可。

import 'package:flutter/material.dart';
/// 最简单的 Container 示例
class BasicContainerExample extends StatelessWidget {

  const BasicContainerExample({
    super.key});

  Widget build(BuildContext context) {

    return Container(
      width: 200,            // 宽度
      height: 100,           // 高度
      color: Colors.blue,    // 背景色
      child: const Center(
        child: Text(
          'Hello Container',
          style: TextStyle(color: Colors.white),
        ),
      ),
    );
  }
}

编辑 lib/main.dart,内容如下:

import 'package:flutter/material.dart';
import 'widgets/basic_container_example.dart';
/// 应用入口函数
void main() {

  // 运行 Flutter 应用
  runApp(const MyApp());
}
/// 根 Widget - 应用程序的顶层组件
class MyApp extends StatelessWidget {

  const MyApp({
    super.key});

  Widget build(BuildContext context) {

    return MaterialApp(
      title: 'Flutter for OpenHarmony',  // 应用标题
      debugShowCheckedModeBanner: false, // 隐藏调试标签
      theme: ThemeData(
        // 主题配置
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.blue),
        useMaterial3: true, // 使用 Material 3 设计
      ),
      // 使用命名路由管理页面
      initialRoute: '/',
      home: const HomePage(),
    );
  }
}
/// 首页 Widget
class HomePage extends StatelessWidget {

  const HomePage({
    super.key});

  Widget build(BuildContext context) {

    return Scaffold(
      // 应用栏
      appBar: AppBar(
        title: const Text('基础 Container 示例'),
        backgroundColor: Theme.of(context).colorScheme.inversePrimary,
      ),
      // 页面主体
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            const BasicContainerExample(),
          ],
        ),
      ),
      // 悬浮按钮
      floatingActionButton: FloatingActionButton(
        onPressed: () {

          // 显示提示
          ScaffoldMessenger.of(context).showSnackBar(
            const SnackBar(content: Text('Flutter + OpenHarmony = ❤️')),
          );
        },
        child: const Icon(Icons.favorite),
      ),
    );
  }
}

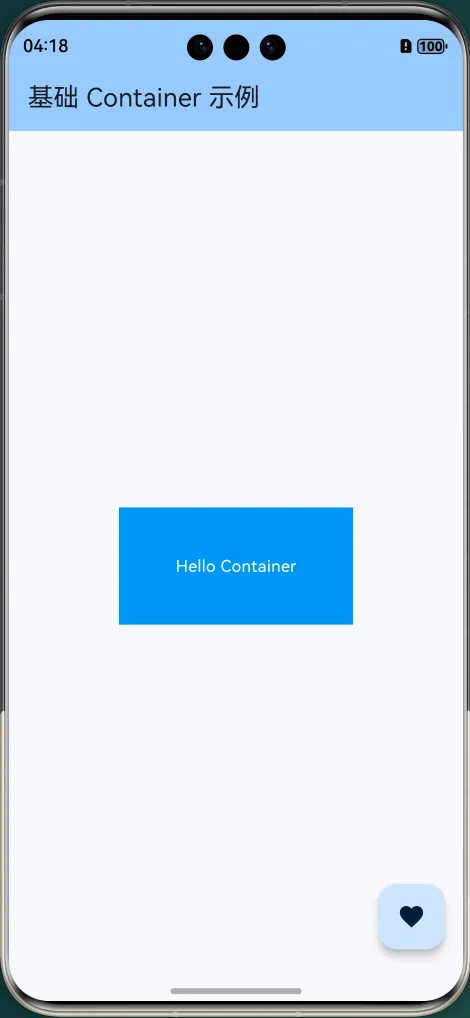

基础Container效果图

1.2 Container 的内部组成

Container 实际上是多个基础 Widget 的组合,理解这一点有助于优化性能:
这块设计起到其他一些组件,类似 CSS 中的属性,不必着急,后续我们会陆续讲到。
```dart
// Container 内部实现原理(简化版)
// 等价于以下 Widget 的嵌套组合:
Widget buildContainer() {
Widget current = child;

// 1. 对齐
if (alignment != null) {
current = Align(alignment: alignment, child: current);
}

// 2. 内填充
if (padding != null) {
current = Padding(padding: padding, child: current);
}

// 3. 装饰(背景、边框、阴影等)
if (decoration != null) {
current = DecoratedBox(decoration: decoration, child: current);
}

// 4. 尺寸约束
if (constraints != null) {
current = ConstrainedBox(constraints: constraints, child: current);
}

// 5. 外边距
if (margin != null) {
current = Padding(padding: margin, child: current);
}

// 6. 变换
if (transform != null) {
current = Transform(transform: transform, child: current);
}

return current;
}

💡 **性能提示**:如果只需要单一功能(如仅需要内边距),建议直接使用 `Padding` 而非 `Container`,这样可以减少 Widget 树的深度。
---
## 二、核心属性详解

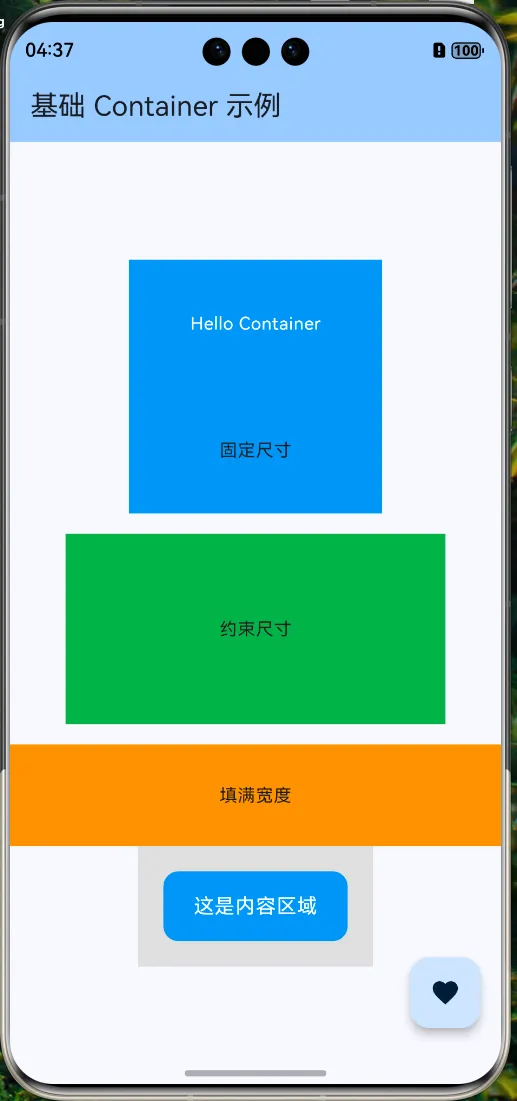

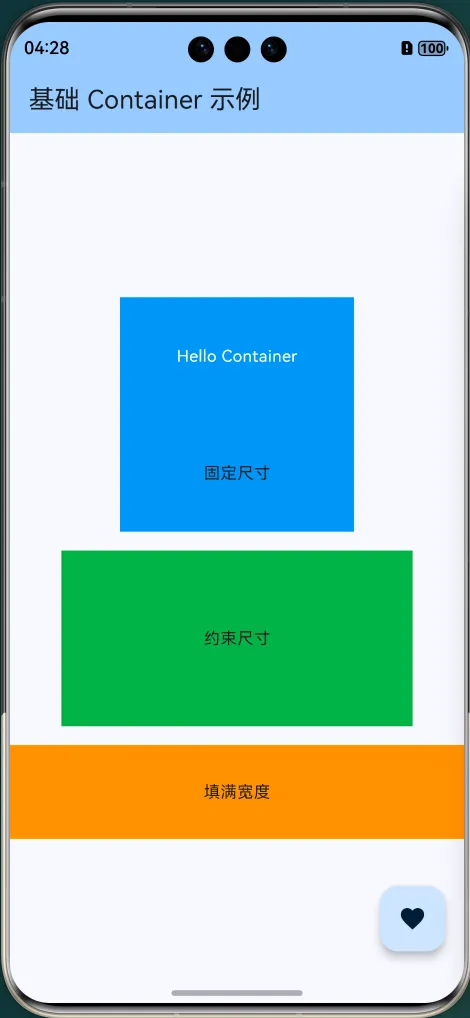

### 2.1 尺寸控制
Container 提供了多种控制尺寸的方式:
`widgets/size_control_example.dart`
```dart
import 'package:flutter/material.dart';
/// 尺寸控制示例
class SizeControlExample extends StatelessWidget {
  const SizeControlExample({super.key});
  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        // 方式一:固定宽高
        Container(
          width: 200,    // 固定宽度 200 像素
          height: 100,   // 固定高度 100 像素
          color: Colors.blue,
          child: const Center(child: Text('固定尺寸')),
        ),

        const SizedBox(height: 16),

        // 方式二:使用约束(更灵活)
        Container(
          constraints: const BoxConstraints(
            minWidth: 100,   // 最小宽度
            maxWidth: 300,   // 最大宽度
            minHeight: 50,   // 最小高度
            maxHeight: 150,  // 最大高度
          ),
          color: Colors.green,
          child: const Center(child: Text('约束尺寸')),
        ),

        const SizedBox(height: 16),

        // 方式三:填满父容器
        Container(
          width: double.infinity,  // 填满可用宽度
          height: 80,
          color: Colors.orange,
          child: const Center(child: Text('填满宽度')),
        ),
      ],
    );
  }
}

在这里插入图片描述

2.2 边距与填充

理解 margin(外边距)和 padding(内填充)的区别是掌握布局的关键:
widgets/margin_padding_example.dart

/// 边距与填充示例
class MarginPaddingExample extends StatelessWidget {

  const MarginPaddingExample({
   super.key});

  Widget build(BuildContext context) {

    return Container(
      color: Colors.grey[300],  // 外层背景(用于显示 margin 效果)
      child: Container(
        // 外边距:影响与周围元素的间距
        margin: const EdgeInsets.all(20),

        // 内填充:影响子组件的位置
        padding: const EdgeInsets.symmetric(
          horizontal: 24,  // 水平方向 24 像素
          vertical: 16,    // 垂直方向 16 像素
        ),

        decoration: BoxDecoration(
          color: Colors.blue,
          borderRadius: BorderRadius.circular(12),
        ),

        child: const Text(
          '这是内容区域',
          style: TextStyle(color: Colors.white, fontSize: 16),
        ),
      ),
    );
  }
}

在这里插入图片描述
EdgeInsets 常用构造方法

// 四周相同边距
EdgeInsets.all(16)
// 分别指定上下左右
EdgeInsets.only(top: 8, left: 16, right: 16, bottom: 8)
// 对称边距(水平/垂直)
EdgeInsets.symmetric(horizontal: 24, vertical: 12)
// 从左上右下顺序指定(类似 CSS)
EdgeInsets.fromLTRB(16, 8, 16, 8)

⚠️ 注意margin 是外边距,控制 Container 与外部元素的间距;padding 是内填充,控制 Container 内部内容与边框的间距。

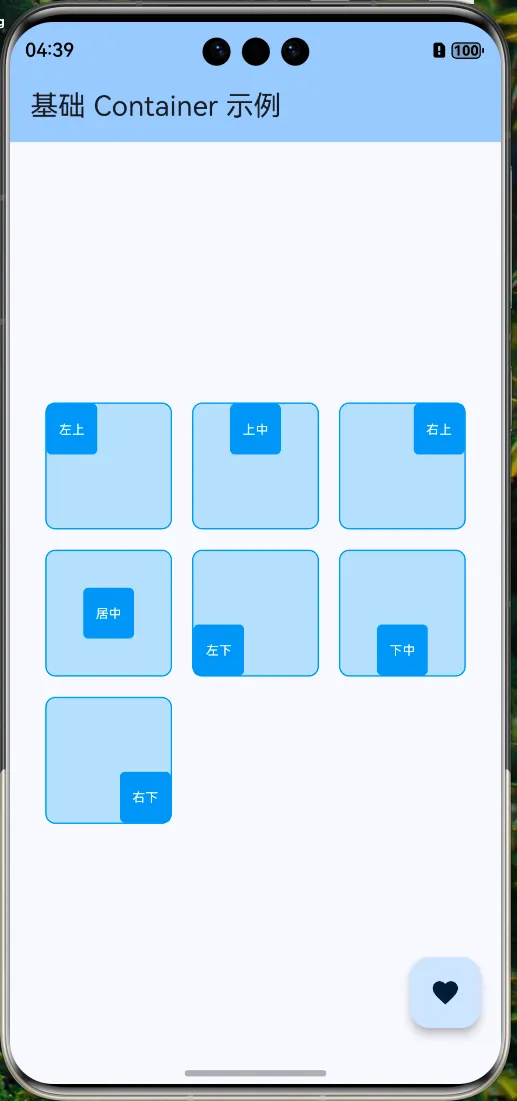

2.3 对齐方式

使用 alignment 属性控制子组件在 Container 内的对齐位置:
widgets/alignment_example.dart

/// 对齐方式示例
class AlignmentExample extends StatelessWidget {

  const AlignmentExample({
   super.key});

  Widget build(BuildContext context) {

    return Wrap(
      spacing: 16,
      runSpacing: 16,
      children: [
        // 左上角对齐
        _buildAlignedContainer(Alignment.topLeft, '左上'),
        // 顶部居中
        _buildAlignedContainer(Alignment.topCenter, '上中'),
        // 右上角对齐
        _buildAlignedContainer(Alignment.topRight, '右上'),
        // 居中对齐
        _buildAlignedContainer(Alignment.center, '居中'),
        // 左下角对齐
        _buildAlignedContainer(Alignment.bottomLeft, '左下'),
        // 底部居中
        _buildAlignedContainer(Alignment.bottomCenter, '下中'),
        // 右下角对齐
        _buildAlignedContainer(Alignment.bottomRight, '右下'),
      ],
    );
  }

  Widget _buildAlignedContainer(Alignment alignment, String label) {

    return Container(
      width: 100,
      height: 100,
      alignment: alignment,  // 设置对齐方式
      decoration: BoxDecoration(
        color: Colors.blue[100],
        border: Border.all(color: Colors.blue),
        borderRadius: BorderRadius.circular(8),
      ),
      child: Container(
        width: 40,
        height: 40,
        decoration: BoxDecoration(
          color: Colors.blue,
          borderRadius: BorderRadius.circular(4),
        ),
        child: Center(
          child: Text(
            label,
            style: const TextStyle(color: Colors.white, fontSize: 10),
          ),
        ),
      ),
    );
  }
}

在这里插入图片描述

三、BoxDecoration 装饰器

BoxDecoration 是 Container 最强大的特性之一,可以实现丰富的视觉效果。

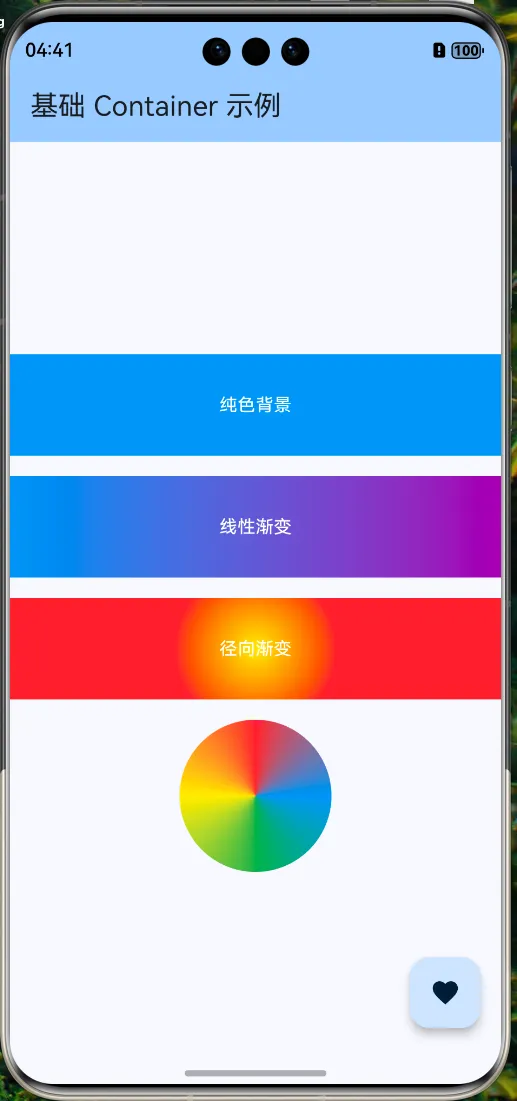

3.1 背景色与渐变

widgets/background_example.dart

/// 背景色与渐变示例
class BackgroundExample extends StatelessWidget {

  const BackgroundExample({
   super.key});

  Widget build(BuildContext context) {

    return Column(
      children: [
        // 纯色背景
        Container(
          width: double.infinity,
          height: 80,
          decoration: const BoxDecoration(
            color: Colors.blue,
          ),
          child: const Center(
            child: Text('纯色背景', style: TextStyle(color: Colors.white)),
          ),
        ),

        const SizedBox(height: 16),

        // 线性渐变
        Container(
          width: double.infinity,
          height: 80,
          decoration: const BoxDecoration(
            gradient: LinearGradient(
              colors: [Colors.blue, Colors.purple],
              begin: Alignment.centerLeft,
              end: Alignment.centerRight,
            ),
          ),
          child: const Center(
            child: Text('线性渐变', style: TextStyle(color: Colors.white)),
          ),
        ),

        const SizedBox(height: 16),

        // 径向渐变
        Container(
          width: double.infinity,
          height: 80,
          decoration: const BoxDecoration(
            gradient: RadialGradient(
              colors: [Colors.yellow, Colors.orange, Colors.red],
              center: Alignment.center,
              radius: 0.8,
            ),
          ),
          child: const Center(
            child: Text('径向渐变', style: TextStyle(color: Colors.white)),
          ),
        ),

        const SizedBox(height: 16),

        // 扫描渐变(类似雷达扫描效果)
        Container(
          width: 120,
          height: 120,
          decoration: const BoxDecoration(
            shape: BoxShape.circle,
            gradient: SweepGradient(
              colors: [Colors.blue, Colors.green, Colors.yellow, Colors.red, Colors.blue],
            ),
          ),
        ),
      ],
    );
  }
}

在这里插入图片描述

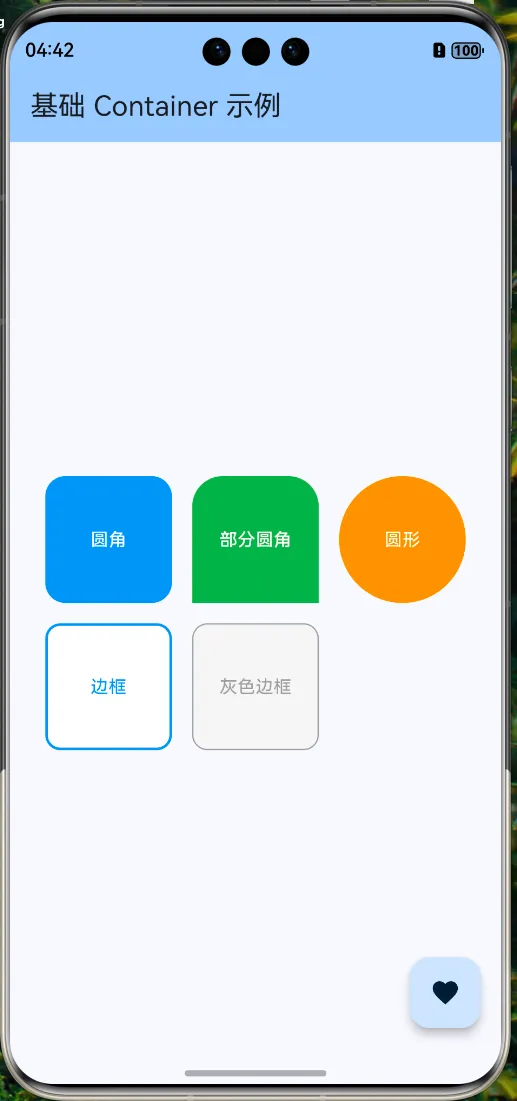

3.2 圆角与边框

widgets/border_radius_example.dart

/// 圆角与边框示例
class BorderRadiusExample extends StatelessWidget {

  const BorderRadiusExample({
   super.key});

  Widget build(BuildContext context) {

    return Wrap(
      spacing: 16,
      runSpacing: 16,
      children: [
        // 统一圆角
        Container(
          width: 100,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.blue,
            borderRadius: BorderRadius.circular(16),  // 四角统一圆角
          ),
          child: const Center(
            child: Text('圆角', style: TextStyle(color: Colors.white)),
          ),
        ),

        // 不同方向的圆角
        Container(
          width: 100,
          height: 100,
          decoration: const BoxDecoration(
            color: Colors.green,
            borderRadius: BorderRadius.only(
              topLeft: Radius.circular(24),      // 左上大圆角
              topRight: Radius.circular(24),     // 右上大圆角
              bottomLeft: Radius.circular(0),    // 左下直角
              bottomRight: Radius.circular(0),   // 右下直角
            ),
          ),
          child: const Center(
            child: Text('部分圆角', style: TextStyle(color: Colors.white)),
          ),
        ),

        // 圆形
        Container(
          width: 100,
          height: 100,
          decoration: const BoxDecoration(
            color: Colors.orange,
            shape: BoxShape.circle,  // 圆形
          ),
          child: const Center(
            child: Text('圆形', style: TextStyle(color: Colors.white)),
          ),
        ),

        // 边框
        Container(
          width: 100,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(12),
            border: Border.all(
              color: Colors.blue,
              width: 2,
            ),
          ),
          child: const Center(
            child: Text('边框', style: TextStyle(color: Colors.blue)),
          ),
        ),

        // 虚线边框效果(使用多层边框模拟)
        Container(
          width: 100,
          height: 100,
          decoration: BoxDecoration(
            color: Colors.grey[100],
            borderRadius: BorderRadius.circular(12),
            border: Border.all(
              color: Colors.grey,
              width: 1,
            ),
          ),
          child: const Center(
            child: Text('灰色边框', style: TextStyle(color: Colors.grey)),
          ),
        ),
      ],
    );
  }
}

在这里插入图片描述

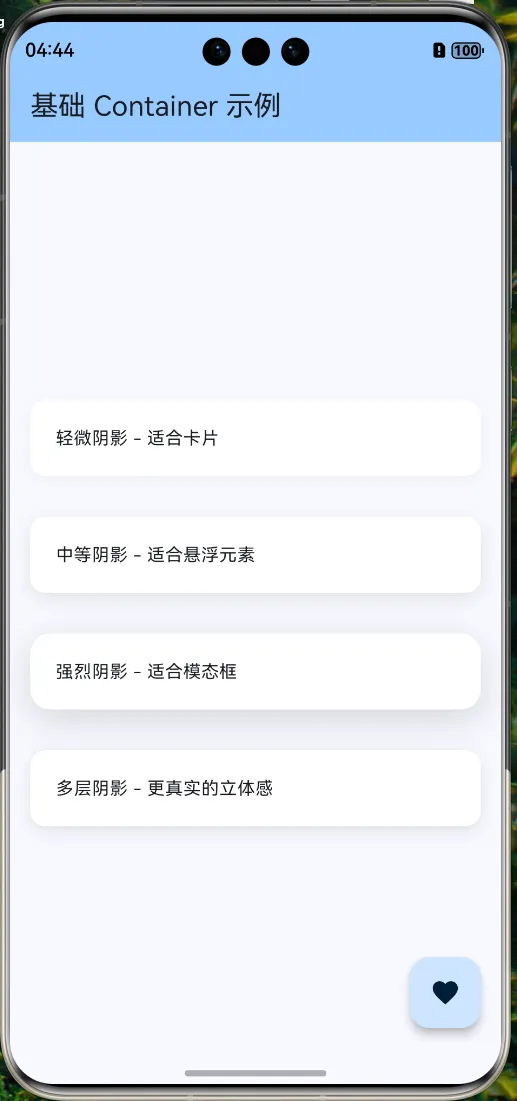

3.3 阴影效果

阴影是提升 UI 层次感的重要手段:
widgets/shadow_example.dart

/// 阴影效果示例
class ShadowExample extends StatelessWidget {

  const ShadowExample({
   super.key});

  Widget build(BuildContext context) {

    return Column(
      children: [
        // 轻微阴影(适合卡片)
        Container(
          width: double.infinity,
          padding: const EdgeInsets.all(20),
          margin: const EdgeInsets.all(16),
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(12),
            boxShadow: [
              BoxShadow(
                color: Colors.black.withOpacity(0.05),  // 阴影颜色
                offset: const Offset(0, 2),             // 偏移量
                blurRadius: 8,                          // 模糊半径
                spreadRadius: 0,                        // 扩散半径
              ),
            ],
          ),
          child: const Text('轻微阴影 - 适合卡片'),
        ),

        // 中等阴影(适合悬浮元素)
        Container(
          width: double.infinity,
          padding: const EdgeInsets.all(20),
          margin: const EdgeInsets.all(16),
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(12),
            boxShadow: [
              BoxShadow(
                color: Colors.black.withOpacity(0.1),
                offset: const Offset(0, 4),
                blurRadius: 12,
                spreadRadius: 0,
              ),
            ],
          ),
          child: const Text('中等阴影 - 适合悬浮元素'),
        ),

        // 强烈阴影(适合模态框)
        Container(
          width: double.infinity,
          padding: const EdgeInsets.all(20),
          margin: const EdgeInsets.all(16),
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(16),
            boxShadow: [
              BoxShadow(
                color: Colors.black.withOpacity(0.15),
                offset: const Offset(0, 8),
                blurRadius: 24,
                spreadRadius: 0,
              ),
            ],
          ),
          child: const Text('强烈阴影 - 适合模态框'),
        ),

        // 多层阴影(更真实的立体感)
        Container(
          width: double.infinity,
          padding: const EdgeInsets.all(20),
          margin: const EdgeInsets.all(16),
          decoration: BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(12),
            boxShadow: [
              // 第一层:轻微扩散
              BoxShadow(
                color: Colors.black.withOpacity(0.04),
                offset: const Offset(0, 1),
                blurRadius: 3,
                spreadRadius: 0,
              ),
              // 第二层:主阴影
              BoxShadow(
                color: Colors.black.withOpacity(0.08),
                offset: const Offset(0, 4),
                blurRadius: 12,
                spreadRadius: 0,
              ),
            ],
          ),
          child: const Text('多层阴影 - 更真实的立体感'),
        ),
      ],
    );
  }
}

在这里插入图片描述

四、OpenHarmony 平台适配

4.1 多分辨率适配

OpenHarmony 设备分辨率跨度极大(720×1280 ~ 3840×2160),直接使用硬编码像素值会导致:

  • 小屏设备:元素重叠、文字截断
  • 大屏设备:元素间距过大、布局稀疏
  • 折叠屏/分屏:定位坐标失效
    反面示例

    // 硬编码像素值,在不同设备上效果差异大
    Container(
    width: 300,   // 在小屏设备可能溢出
    height: 200,  // 在大屏设备显得太小
    child: YourWidget(),
    )


    正确做法

    /// 响应式尺寸适配示例
    class ResponsiveSizeExample extends StatelessWidget {

    const ResponsiveSizeExample({
         super.key});

    Widget build(BuildContext context) {

      // 获取屏幕尺寸
      final screenWidth = MediaQuery.of(context).size.width;
      final screenHeight = MediaQuery.of(context).size.height;

      return Container(
        // 使用屏幕比例计算尺寸
        width: screenWidth * 0.9,    // 屏幕宽度的 90%
        height: screenHeight * 0.3,  // 屏幕高度的 30%

        // 动态计算内边距
        padding: EdgeInsets.symmetric(
          horizontal: screenWidth * 0.05,  // 水平边距为屏幕宽度的 5%
          vertical: 16,
        ),

        decoration: BoxDecoration(
          color: Colors.blue,
          borderRadius: BorderRadius.circular(
            screenWidth * 0.03,  // 圆角也可以根据屏幕动态计算
          ),
        ),

        child: const Center(
          child: Text(
            '响应式布局',
            style: TextStyle(color: Colors.white),
          ),
        ),
      );
    }
    }

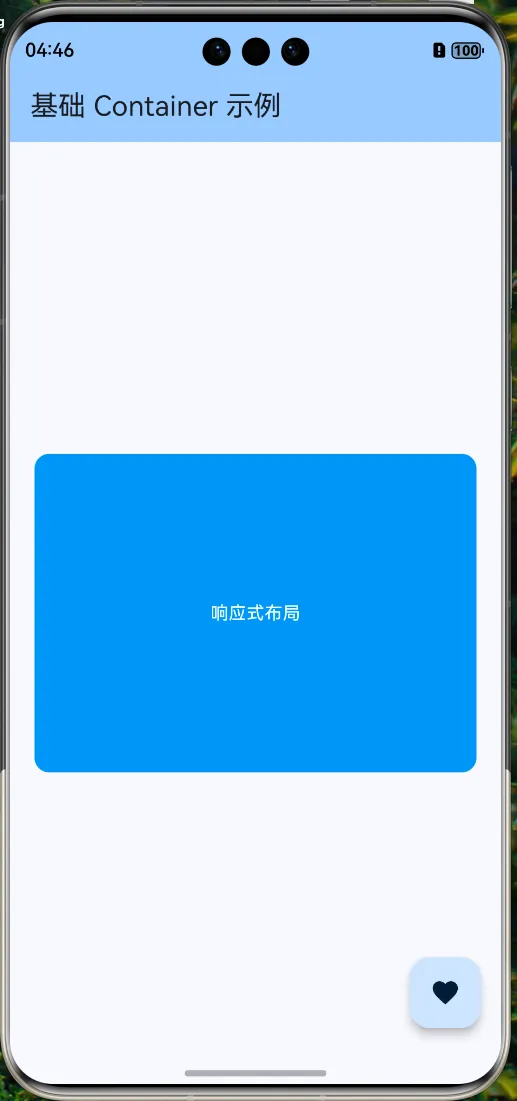

    在这里插入图片描述

    4.2 使用 LayoutBuilder 动态布局

    /// 使用 LayoutBuilder 实现自适应布局
    class AdaptiveLayoutExample extends StatelessWidget {

    const AdaptiveLayoutExample({
         super.key});

    Widget build(BuildContext context) {

      return LayoutBuilder(
        builder: (context, constraints) {

          // 根据可用宽度判断设备类型
          final isTablet = constraints.maxWidth > 600;
          final isDesktop = constraints.maxWidth > 1024;

          return Container(
            // 根据设备类型调整宽度
            width: isDesktop
                ? 800
                : isTablet
                    ? constraints.maxWidth * 0.8
                    : constraints.maxWidth,

            // 根据设备类型调整边距
            padding: EdgeInsets.all(isTablet ? 32 : 16),

            // 根据设备类型调整圆角
            decoration: BoxDecoration(
              color: Colors.white,
              borderRadius: BorderRadius.circular(isTablet ? 24 : 12),
              boxShadow: [
                BoxShadow(
                  color: Colors.black.withOpacity(0.1),
                  blurRadius: isTablet ? 24 : 12,
                  offset: Offset(0, isTablet ? 8 : 4),
                ),
              ],
            ),

            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              children: [
                Text(
                  '自适应卡片',
                  style: TextStyle(
                    fontSize: isTablet ? 24 : 18,
                    fontWeight: FontWeight.bold,
                  ),
                ),
                const SizedBox(height: 8),
                Text(
                  '设备类型:${isDesktop ? "桌面" : isTablet ? "平板" : "手机"}',
                  style: TextStyle(
                    fontSize: isTablet ? 16 : 14,
                    color: Colors.grey[600],
                  ),
                ),
                Text(
                  '可用宽度:${constraints.maxWidth.toStringAsFixed(0)}px',
                  style: TextStyle(
                    fontSize: isTablet ? 16 : 14,
                    color: Colors.grey[600],
                  ),
                ),
              ],
            ),
          );
        },
      );
    }
    }

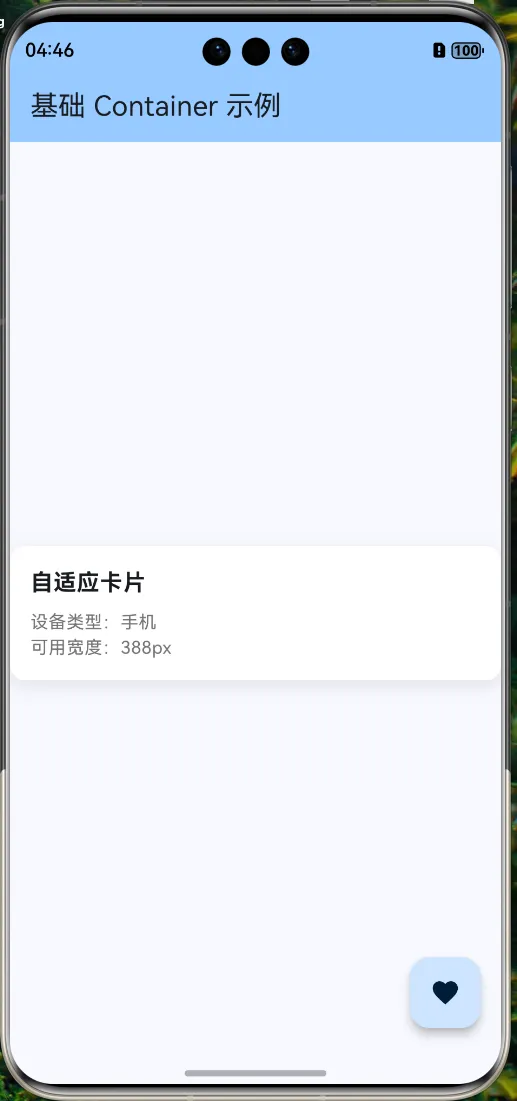

    在这里插入图片描述

    4.3 刘海屏适配

    /// 刘海屏安全区域适配
    class SafeAreaExample extends StatelessWidget {

    const SafeAreaExample({
         super.key});

    Widget build(BuildContext context) {

      // 获取安全区域边距
      final padding = MediaQuery.of(context).padding;

      return Container(
        // 考虑安全区域的顶部边距
        margin: EdgeInsets.only(
          top: padding.top + 16,     // 刘海区域 + 额外边距
          left: 16,
          right: 16,
          bottom: padding.bottom + 16,  // 底部安全区域 + 额外边距
        ),
        padding: const EdgeInsets.all(20),
        decoration: BoxDecoration(
          color: Colors.white,
          borderRadius: BorderRadius.circular(16),
          boxShadow: [
            BoxShadow(
              color: Colors.black.withOpacity(0.1),
              blurRadius: 12,
              offset: const Offset(0, 4),
            ),
          ],
        ),
        child: Column(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            const Text(
              '安全区域适配',
              style: TextStyle(fontSize: 20, fontWeight: FontWeight.bold),
            ),
            const SizedBox(height: 8),
            Text('顶部安全区域:${padding.top.toStringAsFixed(1)}px'),
            Text('底部安全区域:${padding.bottom.toStringAsFixed(1)}px'),
            Text('左侧安全区域:${padding.left.toStringAsFixed(1)}px'),
            Text('右侧安全区域:${padding.right.toStringAsFixed(1)}px'),
          ],
        ),
      );
    }
    }


    📌 提示:在 OpenHarmony 设备测试时,建议使用多种分辨率验证布局效果。


五、实战案例:精美卡片组件

综合运用以上知识,构建一个精美的卡片组件:

import 'package:flutter/material.dart';
/// 精美卡片组件
class BeautifulCard extends StatelessWidget {

  final String title;
  final String subtitle;
  final String imageUrl;
  final VoidCallback? onTap;

  const BeautifulCard({

    super.key,
    required this.title,
    required this.subtitle,
    required this.imageUrl,
    this.onTap,
  });

  Widget build(BuildContext context) {

    return GestureDetector(
      onTap: onTap,
      child: Container(
        margin: const EdgeInsets.symmetric(horizontal: 16, vertical: 8),
        decoration: BoxDecoration(
          color: Colors.white,
          borderRadius: BorderRadius.circular(16),
          boxShadow: [
            // 多层阴影,营造立体感
            BoxShadow(
              color: Colors.black.withOpacity(0.04),
              offset: const Offset(0, 1),
              blurRadius: 3,
            ),
            BoxShadow(
              color: Colors.black.withOpacity(0.08),
              offset: const Offset(0, 4),
              blurRadius: 12,
            ),
          ],
        ),
        child: ClipRRect(
          borderRadius: BorderRadius.circular(16),
          child: Column(
            crossAxisAlignment: CrossAxisAlignment.start,
            children: [
              // 图片区域
              Container(
                height: 160,
                width: double.infinity,
                decoration: BoxDecoration(
                  gradient: LinearGradient(
                    colors: [Colors.blue.shade400, Colors.purple.shade400],
                    begin: Alignment.topLeft,
                    end: Alignment.bottomRight,
                  ),
                ),
                child: const Center(
                  child: Icon(
                    Icons.image,
                    size: 48,
                    color: Colors.white54,
                  ),
                ),
              ),

              // 内容区域
              Container(
                padding: const EdgeInsets.all(16),
                child: Column(
                  crossAxisAlignment: CrossAxisAlignment.start,
                  children: [
                    // 标题
                    Text(
                      title,
                      style: const TextStyle(
                        fontSize: 18,
                        fontWeight: FontWeight.bold,
                        color: Color(0xFF1E293B),
                      ),
                    ),
                    const SizedBox(height: 8),

                    // 副标题
                    Text(
                      subtitle,
                      style: TextStyle(
                        fontSize: 14,
                        color: Colors.grey[600],
                        height: 1.5,
                      ),
                      maxLines: 2,
                      overflow: TextOverflow.ellipsis,
                    ),
                    const SizedBox(height: 16),

                    // 底部操作区
                    Row(
                      children: [
                        // 标签
                        Container(
                          padding: const EdgeInsets.symmetric(
                            horizontal: 12,
                            vertical: 6,
                          ),
                          decoration: BoxDecoration(
                            color: Colors.blue.withOpacity(0.1),
                            borderRadius: BorderRadius.circular(20),
                          ),
                          child: const Text(
                            'Flutter',
                            style: TextStyle(
                              fontSize: 12,
                              color: Colors.blue,
                              fontWeight: FontWeight.w500,
                            ),
                          ),
                        ),
                        const SizedBox(width: 8),
                        Container(
                          padding: const EdgeInsets.symmetric(
                            horizontal: 12,
                            vertical: 6,
                          ),
                          decoration: BoxDecoration(
                            color: Colors.orange.withOpacity(0.1),
                            borderRadius: BorderRadius.circular(20),
                          ),
                          child: const Text(
                            'OpenHarmony',
                            style: TextStyle(
                              fontSize: 12,
                              color: Colors.orange,
                              fontWeight: FontWeight.w500,
                            ),
                          ),
                        ),
                        const Spacer(),
                        // 箭头图标
                        Icon(
                          Icons.arrow_forward_ios,
                          size: 16,
                          color: Colors.grey[400],
                        ),
                      ],
                    ),
                  ],
                ),
              ),
            ],
          ),
        ),
      ),
    );
  }
}
/// 使用示例
class CardDemoPage extends StatelessWidget {

  const CardDemoPage({
   super.key});

  Widget build(BuildContext context) {

    return Scaffold(
      appBar: AppBar(
        title: const Text('卡片组件示例'),
        backgroundColor: Theme.of(context).colorScheme.inversePrimary,
      ),
      backgroundColor: const Color(0xFFF8FAFC),
      body: ListView(
        padding: const EdgeInsets.symmetric(vertical: 16),
        children: [
          BeautifulCard(
            title: 'Flutter for OpenHarmony',
            subtitle: '使用 Flutter 开发鸿蒙应用,一套代码多端运行,享受高效开发体验。',
            imageUrl: '',
            onTap: () {

              // 处理点击事件
            },
          ),
          BeautifulCard(
            title: 'Container 组件详解',
            subtitle: '深入学习 Container 的尺寸控制、装饰样式和响应式适配技巧。',
            imageUrl: '',
            onTap: () {
   },
          ),
          BeautifulCard(
            title: '多分辨率适配实战',
            subtitle: '针对 OpenHarmony 设备的多分辨率特性,实现完美的响应式布局。',
            imageUrl: '',
            onTap: () {
   },
          ),
        ],
      ),
    );
  }
}

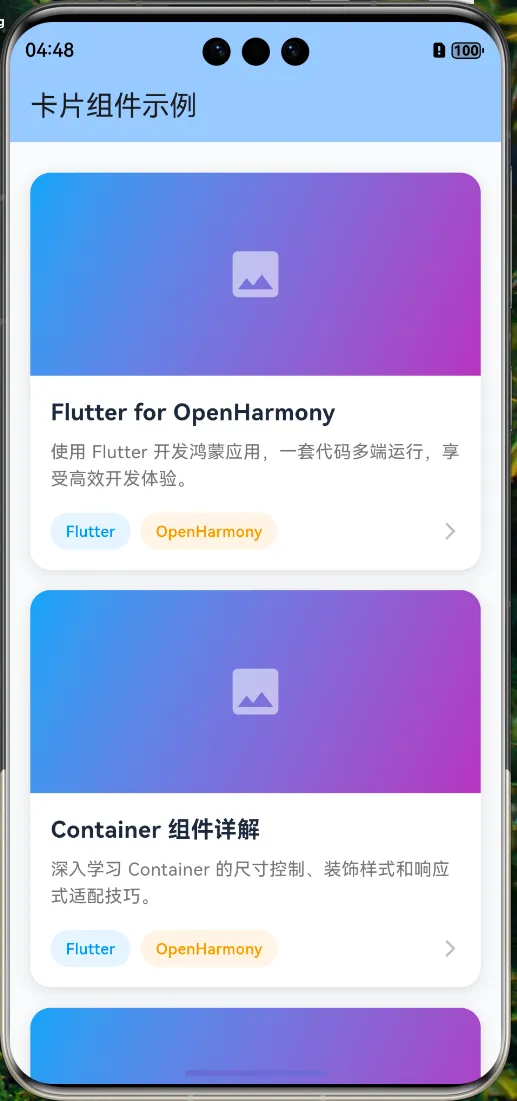

card

六、常见问题与最佳实践

6.1 color 与 decoration 冲突

// ❌ 错误:同时使用 color 和 decoration
Container(
  color: Colors.blue,          // ❌ 这会报错!
  decoration: BoxDecoration(
    borderRadius: BorderRadius.circular(12),
  ),
)
// ✅ 正确:将颜色放入 decoration 中
Container(
  decoration: BoxDecoration(
    color: Colors.blue,        // ✅ 颜色放在 decoration 中
    borderRadius: BorderRadius.circular(12),
  ),
)

6.2 性能优化建议

// ❌ 过度使用 Container
Container(
  padding: const EdgeInsets.all(16),
  child: Container(
    margin: const EdgeInsets.all(8),
    child: Text('内容'),
  ),
)
// ✅ 简化 Widget 树
Padding(
  padding: const EdgeInsets.all(16),
  child: Container(
    margin: const EdgeInsets.all(8),
    child: Text('内容'),
  ),
)
// 或者合并为一个 Container
Container(
  padding: const EdgeInsets.all(16),
  margin: const EdgeInsets.all(8),
  child: Text('内容'),
)

6.3 阴影性能问题

// ⚠️ 复杂阴影可能影响性能
// 在列表中使用时要注意
// 推荐:使用 Card 组件(内置优化)
Card(
  elevation: 4,
  shadowColor: Colors.black26,
  shape: RoundedRectangleBorder(
    borderRadius: BorderRadius.circular(12),
  ),
  child: YourContent(),
)

七、总结

本文详细介绍了 Container 组件的核心用法:

  • 尺寸控制:width/height、constraints、double.infinity
  • 边距设置:margin(外边距)和 padding(内填充)
  • 对齐方式:alignment 属性控制子组件位置
  • 装饰样式:BoxDecoration 实现渐变、圆角、边框、阴影
  • 平台适配:MediaQuery、LayoutBuilder 实现响应式布局

    关键要点

  1. 理解组成:Container 是多个基础 Widget 的组合
  2. 善用装饰:BoxDecoration 可实现丰富的视觉效果
  3. 响应式设计:避免硬编码尺寸,使用比例计算
  4. 性能优化:简化 Widget 树,避免不必要的嵌套

    下一步学习

  • Row 与 Column 弹性布局
  • Stack 层叠定位
  • ListView 列表组件
相关文章
|
30天前
|
传感器 人工智能 自动驾驶
自动驾驶中行人目标检测数据集(近4000张图片已标注)| YOLO训练数据集 AI视觉检测
本数据集含近4000张高质量标注图像,专为自动驾驶行人检测设计,精细划分pedestrian(动态行人)、ped(旁观者)、people(人群)三类,覆盖城市、城郊、商圈等多场景,支持YOLOv5-v10等模型训练,助力行为预测与安全决策。
自动驾驶中行人目标检测数据集(近4000张图片已标注)| YOLO训练数据集 AI视觉检测
|
2月前
|
人工智能 API 机器人
OpenClaw 用户部署和使用指南汇总
本文档为OpenClaw(原MoltBot)官方使用指南,涵盖一键部署(阿里云轻量服务器年仅68元)、钉钉/飞书/企微等多平台AI员工搭建、典型场景实践及高频问题FAQ。同步更新产品化修复进展,助力用户高效落地7×24小时主动执行AI助手。
26866 199
|
18天前
|
Web App开发 安全 数据挖掘
TA446 组织利用 DarkSword 漏洞套件针对 iOS 的定向钓鱼攻击研究
2026年3月,俄APT组织TA446利用泄露的DarkSword iOS漏洞套件,通过伪造大西洋理事会邮件实施定向钓鱼攻击。该攻击依托PAC绕过、内核提权等0day链,实现无文件、低交互的Safari远程入侵,窃取iCloud凭证、钥匙串等敏感数据,并部署GHOSTBLADE与MAYBEROBOT载荷。研究表明,国家级漏洞工具公开化正加速高端移动威胁平民化,亟需构建终端加固、流量检测与行为监控相结合的纵深防御体系。(239字)
285 7
|
19天前
|
人工智能 机器人 Linux
阿里云轻量服务器部署OpenClaw|钉钉接入+千问/Coding Plan API配置+避坑指南
2026年,OpenClaw(原Clawdbot)凭借轻量化部署、多平台兼容与大模型深度集成能力,成为企业与个人搭建专属AI自动化代理的首选工具。依托阿里云轻量服务器的稳定运行与公网访问能力,搭配钉钉的企业级通信生态,可快速实现“云端AI服务+钉钉消息交互+大模型智能响应”的办公自动化闭环。本文基于2026年OpenClaw最新稳定版(v2026.3.28),完整覆盖**阿里云轻量服务器部署、本地MacOS/Linux/Windows11部署、钉钉接入全流程、阿里云千问大模型API配置、Coding Plan免费API配置、核心避坑指南、常见问题解答**七大核心模块,所有代码命令可直接复制执行
459 4
|
22天前
|
弹性计算 人工智能 Linux
OpenClaw是什么?OpenClaw入门详解、阿里云ECS/本地部署及免费大模型配置教程
OpenClaw(社区俗称Clawdbot,龙虾)是一款基于MIT开源协议开发的自托管AI智能体执行网关,核心价值在于打破传统AI“只会说不会做”的局限,连接大语言模型与设备系统、工具应用,将自然语言指令转化为可落地的实操动作,实现从需求下达、任务拆解到执行反馈的全流程闭环。与单纯输出文字的对话式AI不同,OpenClaw可直接操控终端、管理文件、自动化浏览器操作,兼顾数据隐私与执行效率,无需专业技术背景,零基础用户也能快速部署使用。
1327 5
|
19天前
|
人工智能 Linux API
告别OpenClaw假数据!跨境电商专用Agent+阿里云/本地全部署+模型配置实战与避坑指南
当前大量用户在使用OpenClaw(Clawdbot)进行市场分析、竞品调研、选品决策时,普遍遇到一个致命问题:AI在数据不足、网页抓取受阻、节点受限的情况下,会自动编造价格、销量、评论、重量等关键信息,生成看似专业却完全失真的报告,直接导致决策错误。尤其在跨境电商场景,假数据会造成选品失败、投产亏损、专利侵权、账号违规等严重后果。
215 3
|
10天前
|
数据采集 人工智能 Shell
从脚本到智能定时任务:Crontab MCP Tool 与 DMXAPI
Crontab MCP Tool 是被严重低估的LLM基础设施:它不替代cron,而是为大模型提供稳定、可审计的时间驱动入口。在夜间巡检等场景中,它将数据采集、结构化推理与通知链路解耦组合,强调确定性、可观测性与工程鲁棒性——让AI在边界清晰的流程中做擅长之事。(239字)
|
3天前
|
数据采集 人工智能 安全
给你的AI 配一个专属"数据厨师",DataBridge Agent 让多源数据“可用、好用、易用”
阿里云DTS推出DataBridge Agent,专为AI打造的智能数据处理Agent。支持网页、文档、数据库等多源数据一键采集,自动解析为结构化格式(JSON/CSV/Parquet),具备安全传输与AI生态无缝对接能力,显著降低大模型训练、RAG、跨云整合等场景的数据准备成本。
|
9天前
|
人工智能 自然语言处理 API
Windows OpenClaw 一键部署教程 |全图形化、无代码
OpenClaw Windows 一键部署包,图形化操作、零代码,5分钟完成本地安装。支持微信/企微/钉钉/飞书联动,内置全依赖,保障数据安全。适配Win10/11,需8GB内存,关闭杀软即可运行。
173 8
|
9天前
|
人工智能 安全 Linux
3 分钟玩转龙虾 AI!OpenClaw 阿里云 + 本地部署保姆级教程
OpenClaw(龙虾AI)是2026年热门开源个人AI助手,由PSPDFKit创始人打造,主打“可执行任务”:自动收发邮件、订机票、管日程、写代码。全本地运行,隐私可控;兼容GPT/Claude/MiniMax等模型,支持微信、飞书等平台,内置100+可扩展技能。(239字)
547 5
下一篇
开通oss服务
