吃透 Spring 12 个核心扩展点：从源码底层到生产级实战，90% 的高级开发都在用-阿里云开发者社区

前言

Spring之所以能成为Java生态的事实标准，核心在于其极致灵活的扩展能力。几乎所有主流中间件（MyBatis、Dubbo、RocketMQ等）的Spring整合包，都是基于Spring原生扩展点实现的。掌握这些扩展点，不仅能让你写出更优雅的Spring应用，更是阅读源码、二次开发框架、排查疑难问题的核心能力。

一、Spring Bean完整生命周期全景

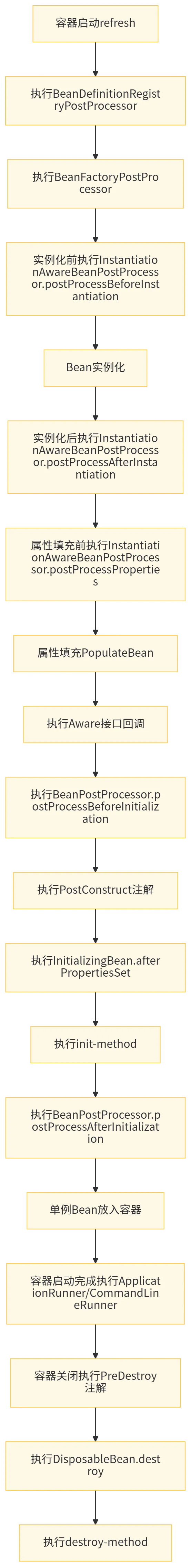

所有Spring扩展点都是围绕Bean生命周期的回调机制实现的，先通过流程图建立全局认知：

二、项目基础环境配置

pom.xml配置如下：

<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>3.4.3</version> <relativePath/> </parent> <groupId>com.jam</groupId> <artifactId>spring-extension-demo</artifactId> <version>0.0.1-SNAPSHOT</version> <name>spring-extension-demo</name> <description>Spring扩展点实战demo</description> <properties> <java.version>17</java.version> <lombok.version>1.18.34</lombok.version> <guava.version>33.2.1-jre</guava.version> <fastjson2.version>2.0.52</fastjson2.version> <mybatis-plus.version>3.5.7</mybatis-plus.version> <springdoc.version>2.6.0</springdoc.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-jdbc</artifactId> </dependency> <dependency> <groupId>com.mysql</groupId> <artifactId>mysql-connector-j</artifactId> <version>8.4.0</version> </dependency> <dependency> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus-boot-starter</artifactId> <version>${mybatis-plus.version}</version> </dependency> <dependency> <groupId>org.springdoc</groupId> <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId> <version>${springdoc.version}</version> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>${lombok.version}</version> <scope>provided</scope> </dependency> <dependency> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> <version>${guava.version}</version> </dependency> <dependency> <groupId>com.alibaba.fastjson2</groupId> <artifactId>fastjson2</artifactId> <version>${fastjson2.version}</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> <configuration> <excludes> <exclude> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> </exclude> </excludes> </configuration> </plugin> </plugins> </build> </project>

application.yml基础配置：

spring: datasource: url: jdbc:mysql://localhost:3306/test_db?useUnicode=true&characterEncoding=utf8&serverTimezone=Asia/Shanghai username: root password: MTIzNDU2 application: name: spring-extension-demo encrypt: db-password: MTIzNDU2

三、核心扩展点详解（按生命周期顺序）

3.1 BeanDefinition注册阶段：容器最前置扩展

该阶段Bean还未实例化，是修改Bean定义的黄金时期，也是框架整合的核心扩展点。

3.1.1 BeanDefinitionRegistryPostProcessor

核心作用：动态注册、修改、删除BeanDefinition，是Spring容器启动最先执行的扩展点，优先级高于BeanFactoryPostProcessor。源码触发时机：AbstractApplicationContext#refresh()方法中，invokeBeanFactoryPostProcessors()优先执行该接口的postProcessBeanDefinitionRegistry方法。适用场景：动态注册Bean、扫描自定义注解注册Bean、框架整合时批量注册Mapper/Service。

实战示例：动态注册Bean

package com.jam.demo.processor; import com.jam.demo.service.DynamicService; import lombok.extern.slf4j.Slf4j; import org.springframework.beans.BeansException; import org.springframework.beans.factory.config.BeanDefinition; import org.springframework.beans.factory.config.ConfigurableListableBeanFactory; import org.springframework.beans.factory.support.BeanDefinitionBuilder; import org.springframework.beans.factory.support.BeanDefinitionRegistry; import org.springframework.beans.factory.support.BeanDefinitionRegistryPostProcessor; import org.springframework.stereotype.Component; /** * 自定义BeanDefinition注册后置处理器 * @author ken */ @Slf4j @Component public class CustomBeanDefinitionRegistryPostProcessor implements BeanDefinitionRegistryPostProcessor { /** * 注册BeanDefinition的核心方法，优先于postProcessBeanFactory执行 * @param registry Bean定义注册器，提供BeanDefinition的增删改查能力 * @throws BeansException 处理过程中抛出的异常 */ @Override public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException { log.info("执行CustomBeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry"); BeanDefinitionBuilder beanDefinitionBuilder = BeanDefinitionBuilder.genericBeanDefinition(DynamicService.class); beanDefinitionBuilder.addPropertyValue("serviceName", "dynamicRegisterService"); beanDefinitionBuilder.setScope(BeanDefinition.SCOPE_SINGLETON); registry.registerBeanDefinition("dynamicService", beanDefinitionBuilder.getBeanDefinition()); log.info("动态注册BeanDefinition[dynamicService]完成"); if (registry.containsBeanDefinition("dataSource")) { BeanDefinition dataSourceBeanDefinition = registry.getBeanDefinition("dataSource"); dataSourceBeanDefinition.setLazyInit(true); log.info("修改dataSource的懒加载属性为true完成"); } } /** * 父接口BeanFactoryPostProcessor的方法，在postProcessBeanDefinitionRegistry之后执行 * @param beanFactory 可配置的Bean工厂 * @throws BeansException 处理过程中抛出的异常 */ @Override public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException { log.info("执行CustomBeanDefinitionRegistryPostProcessor.postProcessBeanFactory"); } }

package com.jam.demo.service; import lombok.Data; import lombok.extern.slf4j.Slf4j; /** * 动态注册的服务类 * @author ken */ @Slf4j @Data public class DynamicService { private String serviceName; /** * 测试方法 */ public void test() { log.info("DynamicService.test执行，serviceName:{}", serviceName); } }

3.1.2 BeanFactoryPostProcessor

核心作用：修改已注册的BeanDefinition，无BeanDefinition注册能力。源码触发时机：AbstractApplicationContext#refresh()方法中，所有BeanDefinitionRegistryPostProcessor执行完成后，执行该接口的postProcessBeanFactory方法。适用场景：批量修改已注册Bean的属性、作用域、懒加载等配置。

实战示例：修改已注册Bean的属性

package com.jam.demo.processor; import lombok.extern.slf4j.Slf4j; import org.springframework.beans.BeansException; import org.springframework.beans.factory.config.BeanFactoryPostProcessor; import org.springframework.beans.factory.config.ConfigurableListableBeanFactory; import org.springframework.stereotype.Component; /** * 自定义Bean工厂后置处理器 * @author ken */ @Slf4j @Component public class CustomBeanFactoryPostProcessor implements BeanFactoryPostProcessor { /** * 对BeanFactory进行后置处理的核心方法 * @param beanFactory 可配置的Bean工厂，包含所有已注册的BeanDefinition * @throws BeansException 处理过程中抛出的异常 */ @Override public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException { log.info("执行CustomBeanFactoryPostProcessor.postProcessBeanFactory"); if (beanFactory.containsBeanDefinition("dynamicService")) { beanFactory.getBeanDefinition("dynamicService") .getPropertyValues() .addPropertyValue("serviceName", "modifiedByBeanFactoryPostProcessor"); log.info("修改dynamicService的serviceName属性完成"); } } }

3.2 Bean实例化阶段：控制Bean的创建流程

该阶段在Bean实例化前后执行，可跳过Spring默认的实例化流程，实现自定义对象创建。

3.2.1 InstantiationAwareBeanPostProcessor

核心作用：Bean实例化前后、属性填充前后的回调，可控制Bean的实例化和属性填充流程。源码触发时机：AbstractAutowireCapableBeanFactory#createBean()中，先执行postProcessBeforeInstantiation，若返回非null对象，直接跳过默认实例化流程；实例化后在populateBean()中执行后续方法。核心方法说明：

postProcessBeforeInstantiation：实例化前执行，返回非null则跳过默认实例化
postProcessAfterInstantiation：实例化后、属性填充前执行，返回false则跳过属性填充
postProcessProperties：属性填充前执行，实现自定义属性注入逻辑

实战示例：加密配置自动解密注入自定义注解：

package com.jam.demo.annotation; import java.lang.annotation.*; /** * 加密配置值注解，标注在字段上实现加密配置自动解密注入 * @author ken */ @Target({ElementType.FIELD}) @Retention(RetentionPolicy.RUNTIME) @Documented public @interface EncryptValue { /** * 配置文件中的key * @return 配置key */ String value(); }

处理器实现：

package com.jam.demo.processor; import com.jam.demo.annotation.EncryptValue; import lombok.extern.slf4j.Slf4j; import org.springframework.beans.BeansException; import org.springframework.beans.PropertyValues; import org.springframework.beans.factory.config.InstantiationAwareBeanPostProcessor; import org.springframework.core.env.Environment; import org.springframework.stereotype.Component; import org.springframework.util.ObjectUtils; import org.springframework.util.ReflectionUtils; import java.lang.reflect.Field; import java.util.Base64; /** * 自定义实例化感知Bean后置处理器 * @author ken */ @Slf4j @Component public class CustomInstantiationAwareBeanPostProcessor implements InstantiationAwareBeanPostProcessor { private final Environment environment; public CustomInstantiationAwareBeanPostProcessor(Environment environment) { this.environment = environment; } @Override public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException { return InstantiationAwareBeanPostProcessor.super.postProcessBeforeInstantiation(beanClass, beanName); } @Override public boolean postProcessAfterInstantiation(Object bean, String beanName) throws BeansException { return InstantiationAwareBeanPostProcessor.super.postProcessAfterInstantiation(bean, beanName); } @Override public PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName) throws BeansException { Field[] declaredFields = bean.getClass().getDeclaredFields(); if (ObjectUtils.isEmpty(declaredFields)) { return pvs; } for (Field field : declaredFields) { EncryptValue encryptValue = field.getAnnotation(EncryptValue.class); if (ObjectUtils.isEmpty(encryptValue)) { continue; } String encryptKey = encryptValue.value(); String encryptValueStr = environment.getProperty(encryptKey); if (!org.springframework.util.StringUtils.hasText(encryptValueStr)) { log.warn("配置key:{}对应的加密值为空", encryptKey); continue; } String decryptValue = new String(Base64.getDecoder().decode(encryptValueStr)); ReflectionUtils.makeAccessible(field); ReflectionUtils.setField(field, bean, decryptValue); log.info("Bean[{}]的字段[{}]解密注入完成", beanName, field.getName()); } return pvs; } }

测试类：

package com.jam.demo.config; import com.jam.demo.annotation.EncryptValue; import lombok.Data; import lombok.extern.slf4j.Slf4j; import org.springframework.stereotype.Component; /** * 加密配置测试类 * @author ken */ @Slf4j @Data @Component public class EncryptConfigTest { @EncryptValue("encrypt.db-password") private String dbPassword; public void printPassword() { log.info("解密后的数据库密码:{}", dbPassword); } }

3.3 属性填充完成阶段：容器核心组件感知

该阶段在Bean属性填充完成后执行，通过Aware接口获取Spring容器的核心组件，实现对容器的感知。

3.3.1 Aware接口家族

核心作用：回调注入Spring容器的核心组件，解除Bean对容器的耦合。源码触发时机：AbstractAutowireCapableBeanFactory#initializeBean()中，先执行invokeAwareMethods()处理Aware接口，执行时机在初始化之前。高频Aware接口说明：

BeanNameAware：注入当前Bean的名称
BeanFactoryAware：注入BeanFactory实例
ApplicationContextAware：注入ApplicationContext上下文
EnvironmentAware：注入环境配置对象Environment
ResourceLoaderAware：注入资源加载器ResourceLoader

实战示例：Aware接口综合使用

package com.jam.demo.service; import lombok.extern.slf4j.Slf4j; import org.springframework.beans.BeansException; import org.springframework.beans.factory.BeanFactory; import org.springframework.beans.factory.BeanFactoryAware; import org.springframework.beans.factory.BeanNameAware; import org.springframework.context.ApplicationContext; import org.springframework.context.ApplicationContextAware; import org.springframework.context.EnvironmentAware; import org.springframework.core.env.Environment; import org.springframework.stereotype.Component; /** * Aware接口回调测试类 * @author ken */ @Slf4j @Component public class AwareTestService implements BeanNameAware, BeanFactoryAware, ApplicationContextAware, EnvironmentAware { private String beanName; private BeanFactory beanFactory; private ApplicationContext applicationContext; private Environment environment; @Override public void setBeanName(String name) { this.beanName = name; log.info("BeanNameAware.setBeanName执行，beanName:{}", name); } @Override public void setBeanFactory(BeanFactory beanFactory) throws BeansException { this.beanFactory = beanFactory; log.info("BeanFactoryAware.setBeanFactory执行"); } @Override public void setApplicationContext(ApplicationContext applicationContext) throws BeansException { this.applicationContext = applicationContext; log.info("ApplicationContextAware.setApplicationContext执行"); } @Override public void setEnvironment(Environment environment) { this.environment = environment; log.info("EnvironmentAware.setEnvironment执行"); } public void printContainerInfo() { log.info("当前Bean名称:{}", beanName); log.info("应用名称:{}", environment.getProperty("spring.application.name")); log.info("容器中Bean的数量:{}", applicationContext.getBeanDefinitionCount()); } }

3.4 Bean初始化阶段：Spring最核心的扩展点

该阶段是Bean生命周期中最核心的扩展阶段，Spring AOP、注解处理等核心能力均基于此实现。

3.4.1 BeanPostProcessor

核心作用：Bean初始化前后的回调，可对Bean进行包装、修改、生成代理对象，是Spring AOP的底层实现核心。源码触发时机：AbstractAutowireCapableBeanFactory#initializeBean()中，先执行applyBeanPostProcessorsBeforeInitialization，再执行初始化方法，最后执行applyBeanPostProcessorsAfterInitialization。核心方法说明：

postProcessBeforeInitialization：初始化前执行，可修改Bean属性、参数校验
postProcessAfterInitialization：初始化后执行，生成AOP代理对象的核心位置

实战示例：操作日志注解实现自定义注解：

package com.jam.demo.annotation; import java.lang.annotation.*; /** * 操作日志注解，标注在方法上自动打印方法执行日志 * @author ken */ @Target({ElementType.METHOD}) @Retention(RetentionPolicy.RUNTIME) @Documented public @interface OperateLog { /** * 操作描述 * @return 操作描述 */ String value(); }

处理器实现：

package com.jam.demo.processor; import com.alibaba.fastjson2.JSON; import com.jam.demo.annotation.OperateLog; import lombok.extern.slf4j.Slf4j; import org.aopalliance.intercept.MethodInterceptor; import org.springframework.aop.framework.ProxyFactory; import org.springframework.beans.BeansException; import org.springframework.beans.factory.config.BeanPostProcessor; import org.springframework.stereotype.Component; import org.springframework.util.ObjectUtils; import java.lang.reflect.Method; /** * 自定义Bean后置处理器 * @author ken */ @Slf4j @Component public class CustomBeanPostProcessor implements BeanPostProcessor { @Override public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException { return BeanPostProcessor.super.postProcessBeforeInitialization(bean, beanName); } @Override public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException { Method[] declaredMethods = bean.getClass().getDeclaredMethods(); boolean hasOperateLog = false; for (Method method : declaredMethods) { if (!ObjectUtils.isEmpty(method.getAnnotation(OperateLog.class))) { hasOperateLog = true; break; } } if (hasOperateLog) { ProxyFactory proxyFactory = new ProxyFactory(bean); proxyFactory.addAdvice((MethodInterceptor) invocation -> { Method method = invocation.getMethod(); OperateLog operateLog = method.getAnnotation(OperateLog.class); String operateDesc = operateLog.value(); String className = method.getDeclaringClass().getName(); String methodName = method.getName(); Object[] args = invocation.getArguments(); long startTime = System.currentTimeMillis(); log.info("【操作日志】开始执行，操作描述:{}, 类名:{}, 方法名:{}, 入参:{}", operateDesc, className, methodName, JSON.toJSONString(args)); Object result = null; try { result = invocation.proceed(); log.info("【操作日志】执行成功，操作描述:{}, 耗时:{}ms, 出参:{}", operateDesc, System.currentTimeMillis() - startTime, JSON.toJSONString(result)); return result; } catch (Throwable e) { log.error("【操作日志】执行异常，操作描述:{}, 耗时:{}ms, 异常信息:{}", operateDesc, System.currentTimeMillis() - startTime, e.getMessage(), e); throw e; } }); return proxyFactory.getProxy(); } return bean; } }

测试服务：

package com.jam.demo.service; import com.jam.demo.annotation.OperateLog; import lombok.extern.slf4j.Slf4j; import org.springframework.stereotype.Service; /** * 操作日志测试服务类 * @author ken */ @Slf4j @Service public class OperateLogTestService { /** * 测试方法 * @param username 用户名 * @param age 年龄 * @return 拼接后的字符串 */ @OperateLog("测试用户信息查询") public String testOperateLog(String username, Integer age) { log.info("执行testOperateLog方法，username:{}, age:{}", username, age); return "用户名:" + username + ", 年龄:" + age; } }

3.4.2 InitializingBean + @PostConstruct

核心作用：Bean属性填充完成后执行初始化逻辑，完成资源加载、参数校验等操作。执行顺序（100%准确）：@PostConstruct → InitializingBean.afterPropertiesSet → init-method核心区别：

@PostConstruct：JSR-250标准注解，无Spring耦合，由CommonAnnotationBeanPostProcessor处理
InitializingBean：Spring原生接口，耦合度高，无需反射，性能更好
init-method：XML/注解配置的初始化方法，完全解耦

实战示例：InitializingBean初始化线程池

package com.jam.demo.service; import lombok.extern.slf4j.Slf4j; import org.springframework.beans.factory.InitializingBean; import org.springframework.stereotype.Component; import org.springframework.util.ObjectUtils; import java.util.concurrent.ArrayBlockingQueue; import java.util.concurrent.ThreadPoolExecutor; import java.util.concurrent.TimeUnit; /** * InitializingBean测试类 * @author ken */ @Slf4j @Component public class InitializingBeanTestService implements InitializingBean { private ThreadPoolExecutor threadPoolExecutor; @Override public void afterPropertiesSet() throws Exception { log.info("执行InitializingBean.afterPropertiesSet方法，初始化线程池"); this.threadPoolExecutor = new ThreadPoolExecutor( 2, 8, 60, TimeUnit.SECONDS, new ArrayBlockingQueue<>(100), r -> new Thread(r, "business-thread-" + r.hashCode()), new ThreadPoolExecutor.CallerRunsPolicy() ); log.info("业务线程池初始化完成"); } public void submitTask(Runnable runnable) { if (ObjectUtils.isEmpty(threadPoolExecutor) || threadPoolExecutor.isShutdown()) { throw new IllegalStateException("线程池未初始化或已关闭"); } threadPoolExecutor.submit(runnable); } public void shutdownThreadPool() { if (!ObjectUtils.isEmpty(threadPoolExecutor) && !threadPoolExecutor.isShutdown()) { threadPoolExecutor.shutdown(); log.info("业务线程池已关闭"); } } }

3.5 容器启动完成阶段：启动后初始化

该阶段在Spring容器完全启动、所有单例Bean初始化完成后执行，用于执行启动后的初始化任务。

3.5.1 ApplicationRunner + CommandLineRunner

核心作用：容器启动完成后执行自定义逻辑，支持通过@Order注解控制执行顺序。核心区别：

ApplicationRunner：入参为ApplicationArguments，封装了启动参数，支持--key=value格式参数解析
CommandLineRunner：入参为原始String数组，仅支持简单的启动参数处理

实战示例：启动后字典缓存预热MySQL表结构（MySQL 8.0+）：

CREATE TABLE `sys_dict` ( `id` bigint NOT NULL AUTO_INCREMENT COMMENT '主键ID', `dict_code` varchar(64) NOT NULL COMMENT '字典编码', `dict_name` varchar(128) NOT NULL COMMENT '字典名称', `dict_value` varchar(256) NOT NULL COMMENT '字典值', `status` tinyint NOT NULL DEFAULT '1' COMMENT '状态 0-禁用 1-启用', `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间', `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间', PRIMARY KEY (`id`), UNIQUE KEY `uk_dict_code_value` (`dict_code`,`dict_value`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='系统字典表';

实体类：

package com.jam.demo.entity; import com.baomidou.mybatisplus.annotation.IdType; import com.baomidou.mybatisplus.annotation.TableId; import com.baomidou.mybatisplus.annotation.TableName; import io.swagger.v3.oas.annotations.media.Schema; import lombok.Data; import java.time.LocalDateTime; /** * 系统字典实体类 * @author ken */ @Data @TableName("sys_dict") @Schema(description = "系统字典实体") public class SysDict { @TableId(type = IdType.AUTO) @Schema(description = "主键ID", example = "1") private Long id; @Schema(description = "字典编码", example = "user_status") private String dictCode; @Schema(description = "字典名称", example = "用户状态") private String dictName; @Schema(description = "字典值", example = "1") private String dictValue; @Schema(description = "状态 0-禁用 1-启用", example = "1") private Integer status; @Schema(description = "创建时间") private LocalDateTime createTime; @Schema(description = "更新时间") private LocalDateTime updateTime; }

Mapper接口：

package com.jam.demo.mapper; import com.baomidou.mybatisplus.core.mapper.BaseMapper; import com.jam.demo.entity.SysDict; import org.apache.ibatis.annotations.Mapper; /** * 系统字典Mapper接口 * @author ken */ @Mapper public interface SysDictMapper extends BaseMapper<SysDict> { }

服务接口：

package com.jam.demo.service; import com.baomidou.mybatisplus.extension.service.IService; import com.jam.demo.entity.SysDict; import java.util.Set; /** * 系统字典服务接口 * @author ken */ public interface SysDictService extends IService<SysDict> { /** * 根据字典编码获取字典值集合 * @param dictCode 字典编码 * @return 字典值集合 */ Set<String> getDictValuesByCode(String dictCode); /** * 刷新字典缓存 */ void refreshDictCache(); }

服务实现：

package com.jam.demo.service.impl; import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper; import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl; import com.google.common.collect.Maps; import com.google.common.collect.Sets; import com.jam.demo.entity.SysDict; import com.jam.demo.mapper.SysDictMapper; import com.jam.demo.service.SysDictService; import lombok.extern.slf4j.Slf4j; import org.springframework.stereotype.Service; import org.springframework.util.StringUtils; import java.util.Map; import java.util.Set; import java.util.stream.Collectors; /** * 系统字典服务实现类 * @author ken */ @Slf4j @Service public class SysDictServiceImpl extends ServiceImpl<SysDictMapper, SysDict> implements SysDictService { private final Map<String, Set<String>> dictCache = Maps.newConcurrentMap(); @Override public Set<String> getDictValuesByCode(String dictCode) { if (!StringUtils.hasText(dictCode)) { return Sets.newHashSet(); } return dictCache.getOrDefault(dictCode, Sets.newHashSet()); } @Override public void refreshDictCache() { log.info("开始刷新字典缓存"); LambdaQueryWrapper<SysDict> queryWrapper = new LambdaQueryWrapper<SysDict>() .eq(SysDict::getStatus, 1); Map<String, Set<String>> newDictCache = this.list(queryWrapper).stream() .filter(dict -> StringUtils.hasText(dict.getDictCode()) && StringUtils.hasText(dict.getDictValue())) .collect(Collectors.groupingBy( SysDict::getDictCode, Collectors.mapping(SysDict::getDictValue, Collectors.toSet()) )); dictCache.clear(); dictCache.putAll(newDictCache); log.info("字典缓存刷新完成，共加载{}个字典编码", dictCache.size()); } }

启动预热实现：

package com.jam.demo.runner; import com.jam.demo.service.SysDictService; import lombok.extern.slf4j.Slf4j; import org.springframework.boot.ApplicationArguments; import org.springframework.boot.ApplicationRunner; import org.springframework.stereotype.Component; /** * 字典缓存预加载处理器 * @author ken */ @Slf4j @Component public class DictCachePreloadRunner implements ApplicationRunner { private final SysDictService sysDictService; public DictCachePreloadRunner(SysDictService sysDictService) { this.sysDictService = sysDictService; } @Override public void run(ApplicationArguments args) throws Exception { log.info("执行DictCachePreloadRunner.run，开始预加载字典缓存"); sysDictService.refreshDictCache(); log.info("字典缓存预加载完成"); } }

3.6 AOP高级扩展：PointcutAdvisor

核心作用：Spring AOP的原生高级扩展点，比@Aspect注解更灵活、性能更高，是中间件AOP实现的首选方案。底层逻辑：Spring AOP自动代理创建器基于BeanPostProcessor，扫描容器中所有Advisor，匹配目标Bean并生成代理对象。核心组成：Pointcut（切点，定义拦截规则） + Advice（通知，定义拦截逻辑）

实战示例：基于Guava的接口限流实现自定义注解：

package com.jam.demo.annotation; import java.lang.annotation.*; /** * 接口限流注解 * @author ken */ @Target({ElementType.METHOD}) @Retention(RetentionPolicy.RUNTIME) @Documented public @interface RateLimit { /** * 每秒允许的请求数（QPS） * @return QPS */ double permitsPerSecond(); /** * 获取令牌的超时时间，单位毫秒 * @return 超时时间 */ long timeout() default 500; }

限流拦截器：

package com.jam.demo.aop; import com.google.common.util.concurrent.RateLimiter; import com.jam.demo.annotation.RateLimit; import lombok.extern.slf4j.Slf4j; import org.aopalliance.intercept.MethodInterceptor; import org.aopalliance.intercept.MethodInvocation; import org.springframework.util.ObjectUtils; import java.lang.reflect.Method; import java.util.Map; import java.util.concurrent.ConcurrentHashMap; /** * 限流拦截器 * @author ken */ @Slf4j public class RateLimitInterceptor implements MethodInterceptor { private final Map<String, RateLimiter> rateLimiterCache = new ConcurrentHashMap<>(); @Override public Object invoke(MethodInvocation invocation) throws Throwable { Method method = invocation.getMethod(); RateLimit rateLimit = method.getAnnotation(RateLimit.class); if (ObjectUtils.isEmpty(rateLimit)) { return invocation.proceed(); } String methodKey = method.getDeclaringClass().getName() + "#" + method.getName(); RateLimiter rateLimiter = rateLimiterCache.computeIfAbsent(methodKey, k -> RateLimiter.create(rateLimit.permitsPerSecond())); boolean acquire = rateLimiter.tryAcquire(rateLimit.timeout(), java.util.concurrent.TimeUnit.MILLISECONDS); if (!acquire) { log.warn("接口限流触发，方法:{}, QPS限制:{}", methodKey, rateLimit.permitsPerSecond()); throw new RuntimeException("系统繁忙，请稍后再试"); } return invocation.proceed(); } }

切面配置：

package com.jam.demo.aop; import com.jam.demo.annotation.RateLimit; import org.springframework.aop.Pointcut; import org.springframework.aop.support.AbstractPointcutAdvisor; import org.springframework.aop.support.annotation.AnnotationMatchingPointcut; import org.springframework.stereotype.Component; /** * 限流切面配置 * @author ken */ @Component public class RateLimitAdvisor extends AbstractPointcutAdvisor { private final Pointcut pointcut; private final RateLimitInterceptor interceptor; public RateLimitAdvisor() { this.pointcut = new AnnotationMatchingPointcut(null, RateLimit.class); this.interceptor = new RateLimitInterceptor(); } @Override public Pointcut getPointcut() { return this.pointcut; } @Override public org.aopalliance.aop.Advice getAdvice() { return this.interceptor; } }

3.7 事务扩展：TransactionSynchronization

核心作用：事务同步回调，在事务的不同阶段执行自定义逻辑，解决事务与外部操作的一致性问题。源码触发时机：Spring事务管理器在事务提交、回滚的各个阶段，会遍历所有注册的TransactionSynchronization，执行对应的回调方法。核心回调方法：

afterCommit()：事务提交成功后执行，最常用的方法
beforeCommit()：事务提交前执行
afterCompletion()：事务完成后执行（提交/回滚都会执行）
beforeCompletion()：事务完成前执行

实战示例：事务提交后发送消息服务接口：

package com.jam.demo.service; import com.jam.demo.entity.SysDict; /** * 事务测试服务接口 * @author ken */ public interface TransactionTestService { /** * 新增字典并在事务提交后发送消息 * @param sysDict 字典数据 */ void addDictWithMessageSend(SysDict sysDict); }

服务实现（编程式事务）：

package com.jam.demo.service.impl; import com.jam.demo.entity.SysDict; import com.jam.demo.mapper.SysDictMapper; import com.jam.demo.service.TransactionTestService; import lombok.extern.slf4j.Slf4j; import org.springframework.stereotype.Service; import org.springframework.transaction.PlatformTransactionManager; import org.springframework.transaction.TransactionStatus; import org.springframework.transaction.support.DefaultTransactionDefinition; import org.springframework.transaction.support.TransactionSynchronization; import org.springframework.transaction.support.TransactionSynchronizationManager; /** * 事务测试服务实现类 * @author ken */ @Slf4j @Service public class TransactionTestServiceImpl implements TransactionTestService { private final PlatformTransactionManager transactionManager; private final SysDictMapper sysDictMapper; public TransactionTestServiceImpl(PlatformTransactionManager transactionManager, SysDictMapper sysDictMapper) { this.transactionManager = transactionManager; this.sysDictMapper = sysDictMapper; } @Override public void addDictWithMessageSend(SysDict sysDict) { DefaultTransactionDefinition transactionDefinition = new DefaultTransactionDefinition(); TransactionStatus transactionStatus = transactionManager.getTransaction(transactionDefinition); try { sysDictMapper.insert(sysDict); log.info("字典数据插入成功，id:{}", sysDict.getId()); TransactionSynchronizationManager.registerSynchronization(new TransactionSynchronization() { @Override public void afterCommit() { log.info("事务提交成功，开始发送字典新增消息，dictCode:{}", sysDict.getDictCode()); sendMessage(sysDict); log.info("字典新增消息发送完成"); } @Override public void afterCompletion(int status) { if (status == STATUS_ROLLED_BACK) { log.error("事务回滚，取消消息发送，dictCode:{}", sysDict.getDictCode()); } } }); transactionManager.commit(transactionStatus); } catch (Exception e) { transactionManager.rollback(transactionStatus); log.error("字典数据插入失败，事务回滚", e); throw e; } } private void sendMessage(SysDict sysDict) { log.info("模拟发送MQ消息，内容:{}", sysDict); } }

3.8 容器关闭阶段：资源释放扩展

该阶段在Spring容器关闭时执行，用于释放资源、执行清理操作。核心扩展点：

DisposableBean：Spring原生接口，destroy()方法在容器关闭时执行
@PreDestroy：JSR-250注解，执行时机早于DisposableBean.destroy()
SmartLifecycle：更灵活的生命周期接口，可控制启动和关闭的执行顺序

实战示例：DisposableBean资源释放

package com.jam.demo.service; import lombok.extern.slf4j.Slf4j; import org.springframework.beans.factory.DisposableBean; import org.springframework.stereotype.Component; /** * 容器关闭资源释放测试类 * @author ken */ @Slf4j @Component public class DisposableBeanTestService implements DisposableBean { private final InitializingBeanTestService initializingBeanTestService; public DisposableBeanTestService(InitializingBeanTestService initializingBeanTestService) { this.initializingBeanTestService = initializingBeanTestService; } @Override public void destroy() throws Exception { log.info("执行DisposableBean.destroy方法，释放资源"); initializingBeanTestService.shutdownThreadPool(); log.info("所有资源释放完成"); } }

四、易混淆扩展点核心区分表

扩展点接口	核心触发时机	核心作用	易混淆点区分
BeanDefinitionRegistryPostProcessor	Bean实例化之前，BeanFactoryPostProcessor之前	注册、修改、删除BeanDefinition	比BeanFactoryPostProcessor执行更早，拥有BeanDefinition注册能力，是其子接口
BeanFactoryPostProcessor	Bean实例化之前，BeanDefinitionRegistryPostProcessor之后	修改已注册的BeanDefinition	无BeanDefinition注册能力，执行时机更晚
InstantiationAwareBeanPostProcessor	Bean实例化前后、属性填充前后	控制Bean实例化和属性填充流程	触发时机远早于BeanPostProcessor，是其子接口
BeanPostProcessor	Bean初始化前后	处理已实例化的Bean，生成代理对象	Spring AOP的核心实现点，实例化已完成
InitializingBean.afterPropertiesSet	属性填充完成后，init-method之前	Bean初始化逻辑	Spring原生接口，执行时机晚于@PostConstruct
@PostConstruct	属性填充完成后，afterPropertiesSet之前	Bean初始化逻辑	JSR-250注解，无Spring耦合，执行时机最早
ApplicationRunner	容器完全启动完成后	启动后初始化任务	入参封装了启动参数，解析更方便
CommandLineRunner	容器完全启动完成后	启动后初始化任务	入参为原始启动参数数组

五、测试接口（Swagger3）

package com.jam.demo.controller; import com.jam.demo.annotation.OperateLog; import com.jam.demo.annotation.RateLimit; import com.jam.demo.service.OperateLogTestService; import com.jam.demo.service.SysDictService; import io.swagger.v3.oas.annotations.Operation; import io.swagger.v3.oas.annotations.Parameter; import io.swagger.v3.oas.annotations.tags.Tag; import lombok.extern.slf4j.Slf4j; import org.springframework.web.bind.annotation.*; import java.util.Set; /** * 测试控制器 * @author ken */ @Slf4j @RestController @RequestMapping("/test") @Tag(name = "测试接口", description = "Spring扩展点测试接口") public class TestController { private final OperateLogTestService operateLogTestService; private final SysDictService sysDictService; public TestController(OperateLogTestService operateLogTestService, SysDictService sysDictService) { this.operateLogTestService = operateLogTestService; this.sysDictService = sysDictService; } @GetMapping("/operate-log") @Operation(summary = "操作日志测试", description = "测试@OperateLog注解的功能") @OperateLog("测试操作日志接口") @RateLimit(permitsPerSecond = 10, timeout = 500) public String testOperateLog( @Parameter(description = "用户名", required = true, example = "test") @RequestParam String username, @Parameter(description = "年龄", required = true, example = "20") @RequestParam Integer age) { return operateLogTestService.testOperateLog(username, age); } @GetMapping("/dict/{dictCode}") @Operation(summary = "字典查询", description = "根据字典编码查询字典值") @RateLimit(permitsPerSecond = 100, timeout = 200) public Set<String> getDictByCode( @Parameter(description = "字典编码", required = true, example = "user_status") @PathVariable String dictCode) { return sysDictService.getDictValuesByCode(dictCode); } @PostMapping("/dict/refresh") @Operation(summary = "刷新字典缓存", description = "手动刷新字典缓存") @OperateLog("刷新字典缓存") public void refreshDictCache() { sysDictService.refreshDictCache(); } }

六、总结

Spring扩展点的核心设计思想是开闭原则，对扩展开放，对修改关闭。所有扩展点都严格遵循Bean生命周期的回调机制，掌握了生命周期，就掌握了Spring扩展的核心逻辑。

本文覆盖的12个核心扩展点，覆盖了Spring容器从启动到关闭的全流程，不仅能解决日常开发中的90%的扩展需求，更是阅读Spring生态中间件源码的基础。在实际开发中，应根据业务场景选择合适的扩展点，避免滥用导致生命周期混乱。

学习建议：先通过本文的示例跑通每个扩展点，再去看Spring源码中对应的触发逻辑，最后去看MyBatis Plus、Dubbo等框架的Spring整合源码，看它们是如何利用这些扩展点实现框架整合的，举一反三，真正吃透Spring的扩展能力。
