通过前面十五个过滤器功能的介绍，对于SpringSecurity简单入门中的疑惑是不是在心中已经有了答案了呀？ 但新的问题来了！我们并没有配置这些过滤器啊？它们都是怎么被加载出来的？
1-DelegatingFilterProxy
我们在web.xml中配置了一个名称为springSecurityFilterChain的过滤器DelegatingFilterProxy，接下我直接对 DelegatingFilterProxy源码里重要代码进行说明，其中删减掉了一些不重要的代码，大家注意我写的注释就行了！
public class DelegatingFilterProxy extends GenericFilterBean { @Nullable private String contextAttribute; @Nullable private WebApplicationContext webApplicationContext; @Nullable private String targetBeanName; private boolean targetFilterLifecycle; @Nullable private volatile Filter delegate;//注：这个过滤器才是真正加载的过滤器 private final Object delegateMonitor; //注：doFilter才是过滤器的入口，直接从这看！ public void doFilter(ServletRequest request, ServletResponse response, FilterChain filterChain) throws ServletException, IOException { Filter delegateToUse = this.delegate; if (delegateToUse == null) { synchronized(this.delegateMonitor) { delegateToUse = this.delegate; if (delegateToUse == null) { WebApplicationContext wac = this.findWebApplicationContext(); if (wac == null) { throw new IllegalStateException("No WebApplicationContext found: no ContextLoaderListener or DispatcherServlet registered?"); } //第一步：doFilter中最重要的一步，初始化上面私有过滤器属性delegate delegateToUse = this.initDelegate(wac); } this.delegate = delegateToUse; } } //第三步：执行FilterChainProxy过滤器 this.invokeDelegate(delegateToUse, request, response, filterChain); } //第二步：直接看最终加载的过滤器到底是谁 protected Filter initDelegate(WebApplicationContext wac) throws ServletException { //debug得知targetBeanName为：springSecurityFilterChain String targetBeanName = this.getTargetBeanName(); Assert.state(targetBeanName != null, "No target bean name set"); //debug得知delegate对象为：FilterChainProxy Filter delegate = (Filter)wac.getBean(targetBeanName, Filter.class); if (this.isTargetFilterLifecycle()) { delegate.init(this.getFilterConfig()); } return delegate; } }

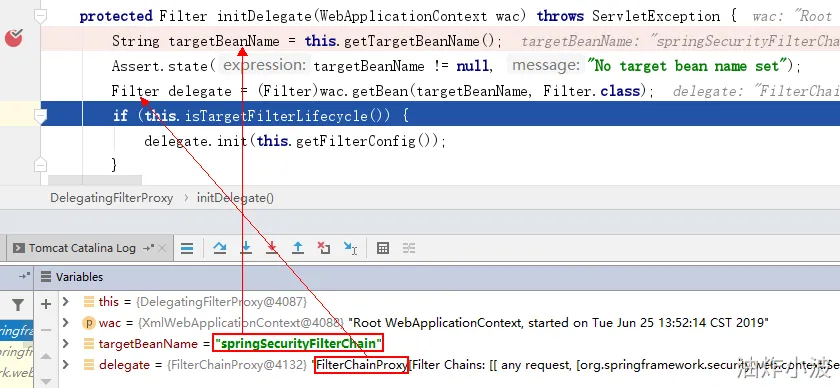

第二步debug结果如下：
由此可知，DelegatingFilterProxy通过springSecurityFilterChain这个名称，得到了一个FilterChainProxy过滤器， 最终在第三步执行了这个过滤器。
2-FilterChainProxy
注意代码注释！
public class FilterChainProxy extends GenericFilterBean { private static final Log logger = LogFactory.getLog(FilterChainProxy.class); private static final String FILTER_APPLIED = FilterChainProxy.class.getName().concat(".APPLIED"); private List<SecurityFilterChain> filterChains; private FilterChainProxy.FilterChainValidator filterChainValidator; private HttpFirewall firewall; //咿！？可以通过一个叫SecurityFilterChain的对象实例化出一个FilterChainProxy对象 //这FilterChainProxy又是何方神圣？会不会是真正的过滤器链对象呢？先留着这个疑问！ public FilterChainProxy(SecurityFilterChain chain) { this(Arrays.asList(chain)); } //又是SecurityFilterChain这家伙！嫌疑更大了！ public FilterChainProxy(List<SecurityFilterChain> filterChains) { this.filterChainValidator = new FilterChainProxy.NullFilterChainValidator(); this.firewall = new StrictHttpFirewall(); this.filterChains = filterChains; } //注：直接从doFilter看 public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException { boolean clearContext = request.getAttribute(FILTER_APPLIED) == null; if (clearContext) { try { request.setAttribute(FILTER_APPLIED, Boolean.TRUE); this.doFilterInternal(request, response, chain); } finally { SecurityContextHolder.clearContext(); request.removeAttribute(FILTER_APPLIED); } } else { //第一步：具体操作调用下面的doFilterInternal方法了 this.doFilterInternal(request, response, chain); } } private void doFilterInternal(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException { FirewalledRequest fwRequest = this.firewall.getFirewalledRequest((HttpServletRequest)request); HttpServletResponse fwResponse = this.firewall.getFirewalledResponse((HttpServletResponse)response); //第二步：封装要执行的过滤器链，那么多过滤器就在这里被封装进去了！ List<Filter> filters = this.getFilters((HttpServletRequest)fwRequest); if (filters != null && filters.size() != 0) { FilterChainProxy.VirtualFilterChain vfc = new FilterChainProxy.VirtualFilterChain(fwRequest, chain, filters); //第四步：加载过滤器链 vfc.doFilter(fwRequest, fwResponse); } else { if (logger.isDebugEnabled()) { logger.debug(UrlUtils.buildRequestUrl(fwRequest) + (filters == null ? " has no matching filters" : " has an empty filter list")); } fwRequest.reset(); chain.doFilter(fwRequest, fwResponse); } } private List<Filter> getFilters(HttpServletRequest request) { Iterator var2 = this.filterChains.iterator(); //第三步：封装过滤器链到SecurityFilterChain中！ SecurityFilterChain chain; do { if (!var2.hasNext()) { return null; } chain = (SecurityFilterChain)var2.next(); } while(!chain.matches(request)); return chain.getFilters(); } }

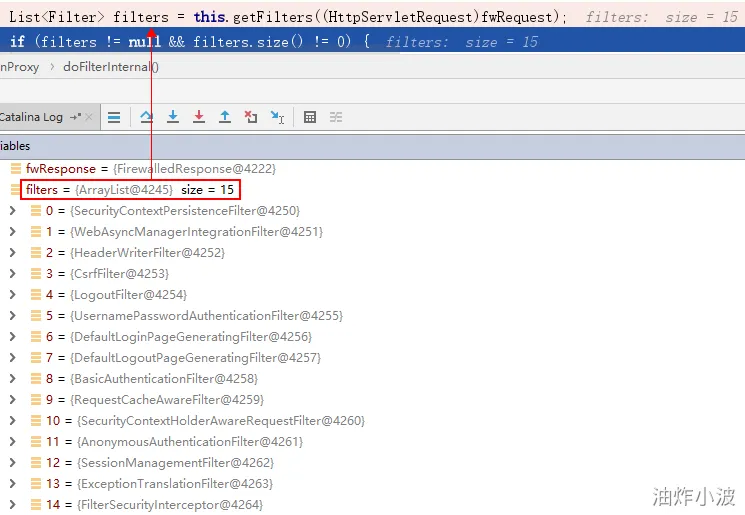

第二步debug结果如下图所示，惊不惊喜？十五个过滤器都在这里了！
再看第三步，怀疑这么久！原来这些过滤器还真是都被封装进SecurityFilterChain中了。
3-SecurityFilterChain
最后看SecurityFilterChain，这是个接口，实现类也只有一个，这才是web.xml中配置的过滤器链对象！
//接口 public interface SecurityFilterChain { boolean matches(HttpServletRequest var1); List<Filter> getFilters(); } //实现类 public final class DefaultSecurityFilterChain implements SecurityFilterChain { private static final Log logger = LogFactory.getLog(DefaultSecurityFilterChain.class); private final RequestMatcher requestMatcher; private final List<Filter> filters; public DefaultSecurityFilterChain(RequestMatcher requestMatcher, Filter... filters) { this(requestMatcher, Arrays.asList(filters)); } public DefaultSecurityFilterChain(RequestMatcher requestMatcher, List<Filter> filters) { logger.info("Creating filter chain: " + requestMatcher + ", " + filters); this.requestMatcher = requestMatcher; this.filters = new ArrayList(filters); } public RequestMatcher getRequestMatcher() { return this.requestMatcher; } public List<Filter> getFilters() { return this.filters; } public boolean matches(HttpServletRequest request) { return this.requestMatcher.matches(request); } public String toString() { return "[ " + this.requestMatcher + ", " + this.filters + "]"; } }
总结：通过此章节，我们对SpringSecurity工作原理有了一定的认识。但理论千万条，功能第一条，探寻底层，是为了更好的使用框架。 那么，言归正传！到底如何使用自己的页面来实现SpringSecurity的认证操作呢？要完成此功能，首先要有一套自己的页面！
