public class DelegatingFilterProxy extends GenericFilterBean {
    @Nullable
    private String contextAttribute;
    @Nullable
    private WebApplicationContext webApplicationContext;
    @Nullable
    private String targetBeanName;
    private boolean targetFilterLifecycle;
    @Nullable
    private volatile Filter delegate;//注：这个过滤器才是真正加载的过滤器
    private final Object delegateMonitor;
    //注：doFilter才是过滤器的入口，直接从这看！
    public void doFilter(ServletRequest request,
                         ServletResponse response,
                         FilterChain
                         filterChain) throws ServletException, IOException {
        Filter delegateToUse = this.delegate;
        if (delegateToUse == null) {
            synchronized(this.delegateMonitor) {
                delegateToUse = this.delegate;
                if (delegateToUse == null) {
                    WebApplicationContext wac = this.findWebApplicationContext();
                    if (wac == null) {
                        throw new IllegalStateException("No WebApplicationContext found: no
                        ContextLoaderListener or DispatcherServlet registered?");
                    }
                    //第一步：doFilter中最重要的一步，初始化上面私有过滤器属性delegate
                    delegateToUse = this.initDelegate(wac);
                }
                this.delegate = delegateToUse;
            }
        }
        //第三步：执行FilterChainProxy过滤器
        this.invokeDelegate(delegateToUse, request, response, filterChain);
    }
    //第二步：直接看最终加载的过滤器到底是谁
    protected Filter initDelegate(WebApplicationContext wac) throws ServletException {

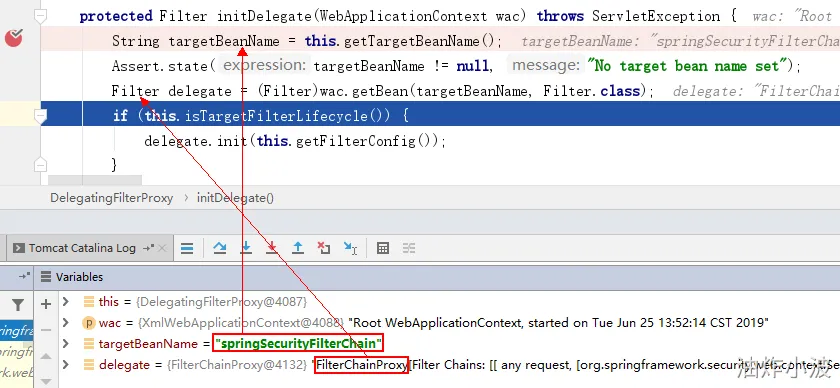

        //debug得知targetBeanName为：springSecurityFilterChain
        String targetBeanName = this.getTargetBeanName();
        Assert.state(targetBeanName != null, "No target bean name set");
        //debug得知delegate对象为：FilterChainProxy
        Filter delegate = (Filter)wac.getBean(targetBeanName, Filter.class);
        if (this.isTargetFilterLifecycle()) {
            delegate.init(this.getFilterConfig());
        }
    return delegate;
    }
}

public class FilterChainProxy extends GenericFilterBean {
    private static final Log logger = LogFactory.getLog(FilterChainProxy.class);
    private static final String FILTER_APPLIED =
    FilterChainProxy.class.getName().concat(".APPLIED");
    private List<SecurityFilterChain> filterChains;
    private FilterChainProxy.FilterChainValidator filterChainValidator;
    private HttpFirewall firewall;
    //咿！？可以通过一个叫SecurityFilterChain的对象实例化出一个FilterChainProxy对象
    //这FilterChainProxy又是何方神圣？会不会是真正的过滤器链对象呢？先留着这个疑问！
    public FilterChainProxy(SecurityFilterChain chain) {
        this(Arrays.asList(chain));
    }
    //又是SecurityFilterChain这家伙！嫌疑更大了！
    public FilterChainProxy(List<SecurityFilterChain> filterChains) {
        this.filterChainValidator = new FilterChainProxy.NullFilterChainValidator();
        this.firewall = new StrictHttpFirewall();
        this.filterChains = filterChains;
    }
    //注：直接从doFilter看
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
    throws IOException, ServletException {
        boolean clearContext = request.getAttribute(FILTER_APPLIED) == null;
        if (clearContext) {
            try {
                request.setAttribute(FILTER_APPLIED, Boolean.TRUE);
                this.doFilterInternal(request, response, chain);
            } finally {
                SecurityContextHolder.clearContext();
                request.removeAttribute(FILTER_APPLIED);
            }
        } else {
            //第一步：具体操作调用下面的doFilterInternal方法了
            this.doFilterInternal(request, response, chain);
        }
    }
    private void doFilterInternal(ServletRequest request, ServletResponse response, FilterChain
                                  chain) throws IOException, ServletException {
        FirewalledRequest fwRequest =
        this.firewall.getFirewalledRequest((HttpServletRequest)request);
        HttpServletResponse fwResponse =
        this.firewall.getFirewalledResponse((HttpServletResponse)response);

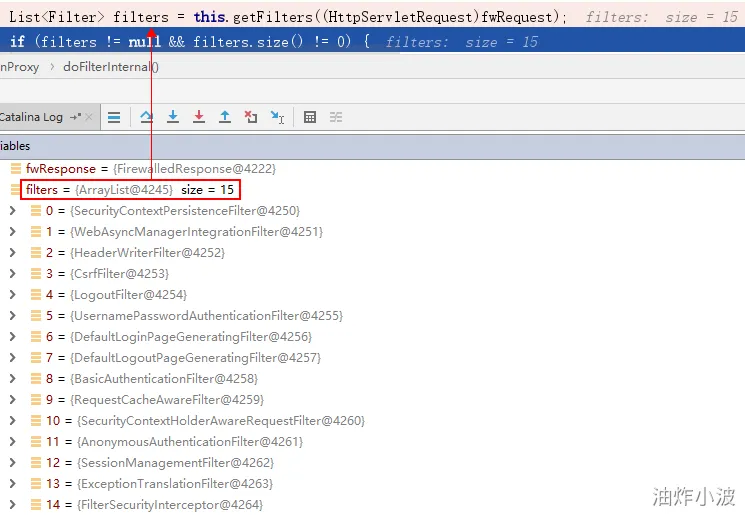

        //第二步：封装要执行的过滤器链，那么多过滤器就在这里被封装进去了！
        List<Filter> filters = this.getFilters((HttpServletRequest)fwRequest);
        if (filters != null && filters.size() != 0) {
            FilterChainProxy.VirtualFilterChain vfc = new
            FilterChainProxy.VirtualFilterChain(fwRequest, chain, filters);
            //第四步：加载过滤器链
            vfc.doFilter(fwRequest, fwResponse);
        } else {
            if (logger.isDebugEnabled()) {
                logger.debug(UrlUtils.buildRequestUrl(fwRequest)
                             + (filters == null ? " has no matching filters" : " has an empty filter list"));
            }
            fwRequest.reset();
            chain.doFilter(fwRequest, fwResponse);
        }
    }
    private List<Filter> getFilters(HttpServletRequest request) {
        Iterator var2 = this.filterChains.iterator();
        //第三步：封装过滤器链到SecurityFilterChain中！
        SecurityFilterChain chain;
        do {
            if (!var2.hasNext()) {
                return null;
            }
                chain = (SecurityFilterChain)var2.next();
        } while(!chain.matches(request));
        return chain.getFilters();
    }
}

//接口
public interface SecurityFilterChain {
    boolean matches(HttpServletRequest var1);
    List<Filter> getFilters();
}
//实现类
public final class DefaultSecurityFilterChain implements SecurityFilterChain {

    private static final Log logger = LogFactory.getLog(DefaultSecurityFilterChain.class);
    private final RequestMatcher requestMatcher;
    private final List<Filter> filters;

    public DefaultSecurityFilterChain(RequestMatcher requestMatcher,
                                      Filter... filters) {
        this(requestMatcher, Arrays.asList(filters));
    }

    public DefaultSecurityFilterChain(RequestMatcher requestMatcher,
                                      List<Filter> filters) {
        logger.info("Creating filter chain: " + requestMatcher + ", " + filters);
        this.requestMatcher = requestMatcher;
        this.filters = new ArrayList(filters);
    }

    public RequestMatcher getRequestMatcher() {
        return this.requestMatcher;
    }

    public List<Filter> getFilters() {
        return this.filters;
    }

    public boolean matches(HttpServletRequest request) {
        return this.requestMatcher.matches(request);
    }

    public String toString() {
        return "[ " + this.requestMatcher + ", " + this.filters + "]";
    }
}
