一、前言

在前面一篇文章中：SpringBoot 系列教程(一百零六)：SpringBoot封装企业通用Swagger配置，写了如何封装企业级Swagger常用配置为Starter启动器，为了验证我们自身封装的swagger-spring-boot-strater可用性，本章节专门选用技术栈 SpringBoot2.3.7.RELEASE+Swagger+Mybatis Plus3.4.2 搭建一套增删改查的简单代码，SpringBoot2.3.7.RELEASE为稳定版本，Mybatis Plus3.4.2 最新版本。

二、环境搭建

1. pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.thinkingcao</groupId>
    <artifactId>springboot-swagger-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springboot-swagger-demo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>2.3.7.RELEASE</spring-boot.version>
    </properties>

    <dependencies>
        <!-- 自身封装的swagger -->
        <dependency>
            <groupId>com.swagger</groupId>
            <artifactId>swagger-spring-boot-strater</artifactId>
            <version>1.0.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.baomidou/mybatis-plus-boot-starter -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.2</version>
        </dependency>


        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.47</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>2.3.7.RELEASE</version>
                <configuration>
                    <mainClass>com.thinkingcao.SwaggerDemoApplication</mainClass>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

2. application.yml

#应用程序名称
spring:
  application:
    name: springboot-swagger-demo
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/swagger-api-demo?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: 123456

  profiles:
    active: dev

#MyBatis-Plus配置
mybatis-plus:
  configuration:
    #是否开启自动驼峰命名规则（camel case）映射,# 该参数不能和mybatis-plus.config-location同时存在
    map-underscore-to-camel-case: true
    ##全局地开启或关闭配置文件中的所有映射器已经配置的任何缓存，默认为 true。
    cache-enabled: false
    auto-mapping-behavior: full
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
  #指定mapper对应xml文件位置
  mapper-locations: classpath*:mapper/**/*Mapper.xml
  #指定别名实体类扫描路径
  type-aliases-package: com.thinkingcao.entity
  #扫描枚举类 # 支持统配符 * 或者 ; 分割
  type-enums-package: com.thinkingcao.enums
  global-config:
    # 逻辑删除配置
    db-config:
      #逻辑未删除值，默认为0
      logic-not-delete-value: 0
      #逻辑已删除值，默认为1
      logic-delete-value: 1
      #全局逻辑删除实体字段名
      logic-delete-field: deleted
      #设置全局主键生成策略
      id-type: auto
      #全局表名配置,前缀
      table-prefix: t_

#Swagger配置信息
project:
  swagger:
    #启用、禁用
    enable: true
    #标题
    title: SpringBoot整合Swagger构建Api文档
    #描述
    desc: 简单优雅的restfull风格接口文档
    #版本
    version: 1.0.0
    #扫包配置
    base-package: com.thinkingcao.controller

三、项目配置

1. 乐观锁、分页插件配置MybatisPlusConfig

package com.thinkingcao.config;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.autoconfigure.ConfigurationCustomizer;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.OptimisticLockerInnerInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * 分页插件：PaginationInnerInterceptor
 * 乐观锁： OptimisticLockerInnerInterceptor
 */
@Configuration
@MapperScan("com.thinkingcao.mapper")
public class MybatisPlusConfig {

    /**
     * 新的分页插件,一缓和二缓遵循mybatis的规则,需要设置 MybatisConfiguration#useDeprecatedExecutor = false 避免缓存出现问题(该属性会在旧插件移除后一同移除)
     */
    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        //向Mybatis过滤器链中添加分页拦截器
        interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));
        //添加乐观锁
        interceptor.addInnerInterceptor(new OptimisticLockerInnerInterceptor());
        //还可以添加i他的拦截器
        return interceptor;
    }

    @Bean
    public ConfigurationCustomizer configurationCustomizer() {
        return configuration -> configuration.setUseDeprecatedExecutor(false);
    }

}

2. 自动填充时间配置MyMetaObjectHandler

package com.thinkingcao.config;

import com.baomidou.mybatisplus.core.handlers.MetaObjectHandler;
import lombok.extern.slf4j.Slf4j;
import org.apache.ibatis.reflection.MetaObject;
import org.springframework.stereotype.Component;

import java.time.LocalDateTime;

/**
 * 自动填充时间配置
 */
@Slf4j
@Component
public class MyMetaObjectHandler implements MetaObjectHandler {

    @Override
    public void insertFill(MetaObject metaObject) {
        log.info("start insert fill ....");
        // 起始版本 3.3.0(推荐使用)
        this.strictInsertFill(metaObject, "createTime", LocalDateTime.class, LocalDateTime.now());
    }

    @Override
    public void updateFill(MetaObject metaObject) {
        log.info("start update fill ....");
        // 起始版本 3.3.0(推荐)
        this.strictUpdateFill(metaObject, "updateTime", LocalDateTime.class, LocalDateTime.now());
    }
}

3. Entity配置

package com.thinkingcao.entity;

import com.baomidou.mybatisplus.annotation.*;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.util.Date;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class User {
    @TableId(value = "id",type = IdType.AUTO) // 自增ID
    private Long id;
    private String name;
    private Integer age;
    private String email;
    @TableField(fill = FieldFill.INSERT)
    private Date createTime; //自动填充时间
    @TableField(fill = FieldFill.INSERT_UPDATE)
    private Date updateTime; //自动填充时间
    private Integer version; //乐观锁
    @TableLogic //逻辑删除
    private Integer deleted;
}

4. UserMapper

package com.thinkingcao.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.thinkingcao.entity.User;

public interface UserMapper extends BaseMapper<User> {

}

5. UserService

package com.thinkingcao.service;

import com.thinkingcao.entity.User;
import com.thinkingcao.mapper.UserMapper;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.List;

/**
 * @desc:
 * @author: cao_wencao
 * @date: 2021-04-18 12:54
 */
@Service
public class UserService {
    @Resource
    private UserMapper userMapper;

    /**
     * 查询多个
     * @return
     */
    public List<User> selectListUser(){
        List<User> users = userMapper.selectList(null);
        return users;
    }

    /**
     * 查询单个
     * @return
     */
    public User selectOneUser(String id){
        User user = userMapper.selectById(id);
        return user;
    }

    /**
     * 增加
     * @return
     */
    public Boolean insertUser(User user){
        int insertResult = userMapper.insert(user);
        if (insertResult >=1){
            return true;
        }
        return false;
    }

    /**
     * 修改
     * @return
     */
    public Boolean updateUser(User user){
        int updateById = userMapper.updateById(user);
        if (updateById >=1){
            return true;
        }
        return false;
    }

    /**
     * 删除
     * @return
     */
    public Boolean deleteUser(String id){
        int deleteById = userMapper.deleteById(id);
        if (deleteById >=1){
            return true;
        }
        return false;
    }

}

6. UserController

package com.thinkingcao.controller;

import com.thinkingcao.enums.ErrorCode;
import com.thinkingcao.entity.User;
import com.thinkingcao.result.BaseResult;
import com.thinkingcao.service.UserService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

/**
 * @desc:
 * @author: cao_wencao
 * @date: 2021-04-18 12:58
 */
@RequestMapping("/user/api")
@RestController
@Api(value = "用户信息API接口",tags="用户信息API接口实现")
@Slf4j
public class UserController {

    @Autowired
    private UserService userService;

    /**
     * 查询多个
     * @return
     */
    @GetMapping("/selectListUser")
    @ApiOperation(value = "查询批量用户")
    public BaseResult selectListUser(){
        List<User> userList = userService.selectListUser();
        return BaseResult.success(userList);
    }

    /**
     * 查询单个
     * @return
     */
    @GetMapping("/selectOneUser/{id}")
    @ApiOperation(value = "查询单个用户")
    public BaseResult selectOneUser(@PathVariable("id") String id){
        User user = userService.selectOneUser(id);
        return BaseResult.success(user);
    }

    /**
     * 增加
     * @return
     */
    @PostMapping("/insertUser")
    @ApiOperation(value = "新增用户")
    public BaseResult insertUser(@RequestBody User user){
        Boolean result = userService.insertUser(user);
        if (result){
            return BaseResult.success(result);
        }
        return BaseResult.error(ErrorCode.DB_ERROR);
    }

    /**
     * 修改
     * @return
     */
    @PostMapping("/updateUser")
    @ApiOperation(value = "修改用户")
    public BaseResult updateUser(@RequestBody User user){
        Boolean result = userService.updateUser(user);
        if (result){
            return BaseResult.success(result);
        }
        return BaseResult.error(ErrorCode.DB_ERROR);
    }

    /**
     * 删除
     * @return
     */
    @PostMapping("/deleteUser/{id}")
    @ApiOperation(value = "删除用户")
    public BaseResult deleteUser(@PathVariable("id") String id){
        Boolean result = userService.deleteUser(id);
        if (result){
            return BaseResult.success(result);
        }
        return BaseResult.error(ErrorCode.DB_ERROR);
    }

}

7. 公共类

BaseResult

package com.thinkingcao.result;

import com.thinkingcao.enums.ErrorCode;
import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;

import java.io.Serializable;
import java.util.Objects;

@ApiModel
public class BaseResult<T> implements Serializable {
    @ApiModelProperty("返回状态码")
    protected Integer code;
    @ApiModelProperty("返回信息")
    protected String message;
    @ApiModelProperty("返回对象")
    protected T data;

    public BaseResult() {

    }

    public BaseResult(ErrorCode success) {
        this((ErrorCode)success, (T) null);
    }

    public BaseResult(ErrorCode success, T data) {
        this.code = success.getCode();
        this.message = success.getMessage();
        this.data = data;
    }

    public BaseResult(Integer code, String message) {
        this.code = code;
        this.message = message;
    }

    public BaseResult(Integer code, String message, T data) {
        this.code = code;
        this.message = message;
        this.data = data;
    }

    public static BaseResult success() {
        return new BaseResult(ErrorCode.SUCCESS);
    }

    public static <T> BaseResult<T> success(T data) {
        return new BaseResult(ErrorCode.SUCCESS, data);
    }

    public static BaseResult error() {
        return new BaseResult(ErrorCode.ERROR);
    }

    public static BaseResult error(ErrorCode code) {
        return new BaseResult(code);
    }

    public static BaseResult error(ErrorCode code, Throwable ex) {
        BaseResult baseResult = new BaseResult(code);
        return baseResult;
    }

    public Integer getCode() {
        return this.code;
    }

    public T getData() {
        return this.data;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public void setMessage(String message) {
        this.message = message;
    }

    public String getMessage() {
        return message;
    }

    public void setData(T data) {
        this.data = data;
    }


    @Override
    public String toString() {
        return "BaseResult{" +
                "code=" + code +
                ", message='" + message + '\'' +
                ", data=" + data +
                '}';
    }

    @Override
    public int hashCode() {
        return Objects.hash(code, message, data);
    }
}

ErrorCode

package com.thinkingcao.enums;

public enum ErrorCode {
    SUCCESS(200, "成功"),
    DB_ERROR(510, "操作数据库失败"),
    ERROR(511, "操作失败"),
    SYSTEM_ERROR(500, "系统异常"),
    VALID_ARGUMENT(400, "参数有误");

    private Integer code;
    private String message;

    private ErrorCode(Integer code, String message) {
        this.code = code;
        this.message = message;
    }

    public Integer getCode() {
        return this.code;
    }

    public String getMessage() {
        return this.message;
    }
}

8. 启动类

package com.thinkingcao;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class SwaggerDemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(SwaggerDemoApplication.class, args);
    }
}

四、数据库脚本

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for t_user
-- ----------------------------
DROP TABLE IF EXISTS `t_user`;
CREATE TABLE `t_user`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `name` varchar(30) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '姓名',
  `age` int(11) DEFAULT NULL COMMENT '年龄',
  `email` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '邮箱',
  `create_time` datetime(0) DEFAULT NULL COMMENT '创建时间',
  `update_time` datetime(0) DEFAULT NULL COMMENT '更新时间',
  `deleted` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '删除标记',
  `version` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL COMMENT '乐观锁版本号version',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 7 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of t_user
-- ----------------------------
INSERT INTO `t_user` VALUES (1, 'Jone', 18, 'test1@baomidou.com', NULL, NULL, '0', NULL);
INSERT INTO `t_user` VALUES (2, 'Jack', 20, 'test2@baomidou.com', NULL, NULL, '0', NULL);
INSERT INTO `t_user` VALUES (3, 'Tom', 28, 'test3@baomidou.com', NULL, NULL, '0', NULL);
INSERT INTO `t_user` VALUES (4, 'Sandy', 21, 'test4@baomidou.com', NULL, NULL, '0', NULL);
INSERT INTO `t_user` VALUES (5, 'Billie', 24, 'test5@baomidou.com', NULL, NULL, '1', NULL);
INSERT INTO `t_user` VALUES (6, '曹构', 22, '617271837', '2021-04-18 17:11:45', '2021-04-18 17:11:45', '0', '1');

SET FOREIGN_KEY_CHECKS = 1;

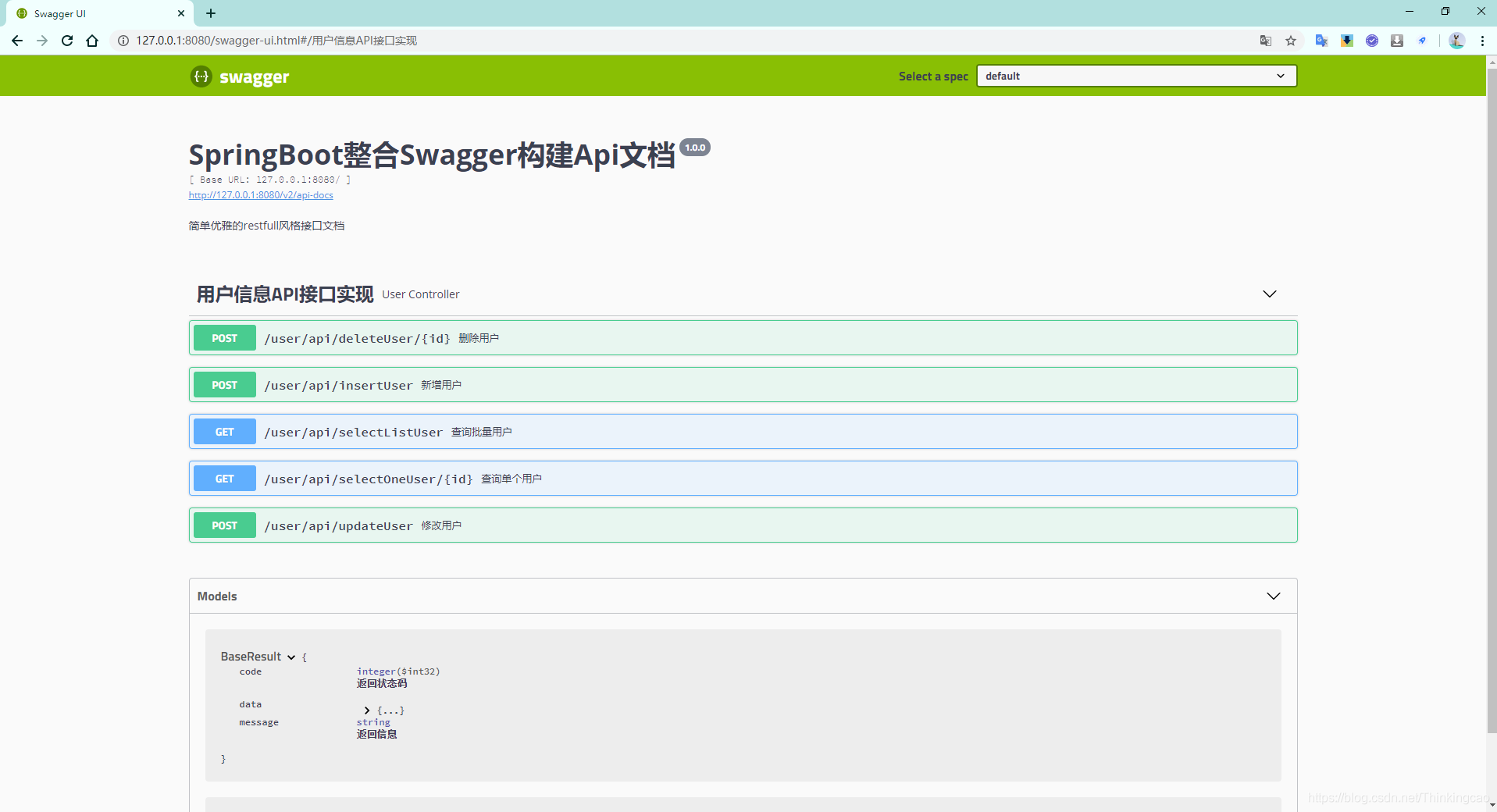

五、运行测试

http://127.0.0.1:8080/swagger-ui.html#

在这里插入图片描述

SpringBoot 系列教程(一百零七)：SpringBoot整合Mybatis Plus3.4.2+Swagger增删改查

一、前言

二、环境搭建

1. pom.xml

2. application.yml

三、项目配置

1. 乐观锁、分页插件配置MybatisPlusConfig

2. 自动填充时间配置MyMetaObjectHandler

3. Entity配置

4. UserMapper

5. UserService

6. UserController

7. 公共类

8. 启动类

四、数据库脚本

五、运行测试

热门文章

最新文章

相关课程

相关电子书

探索云世界

热门

云计算

大数据

云原生

人工智能

数据库

开发与运维

活动广场

任务中心

训练营

直播

乘风者计划

下载

镜像站

技术资料

SpringBoot 系列教程(一百零七)：SpringBoot整合Mybatis Plus3.4.2+Swagger增删改查

一、前言

二、环境搭建

1. pom.xml

2. application.yml

三、项目配置

1. 乐观锁、分页插件配置MybatisPlusConfig

2. 自动填充时间配置MyMetaObjectHandler

3. Entity配置

4. UserMapper

5. UserService

6. UserController

7. 公共类

8. 启动类

四、数据库脚本

五、运行测试

热门文章

最新文章

相关课程

相关电子书
