Oracle PL/SQL 开发的童鞋，一定对O家的bulk批量处理的性能很是赞赏吧。
但是PostgreSQL用户请不要垂涎，作为学院派和工业界的一颗璀璨明珠。
开源数据库PostgreSQL，也有对应的批量处理策略哦，而且看起来性能完全不输Oracle。

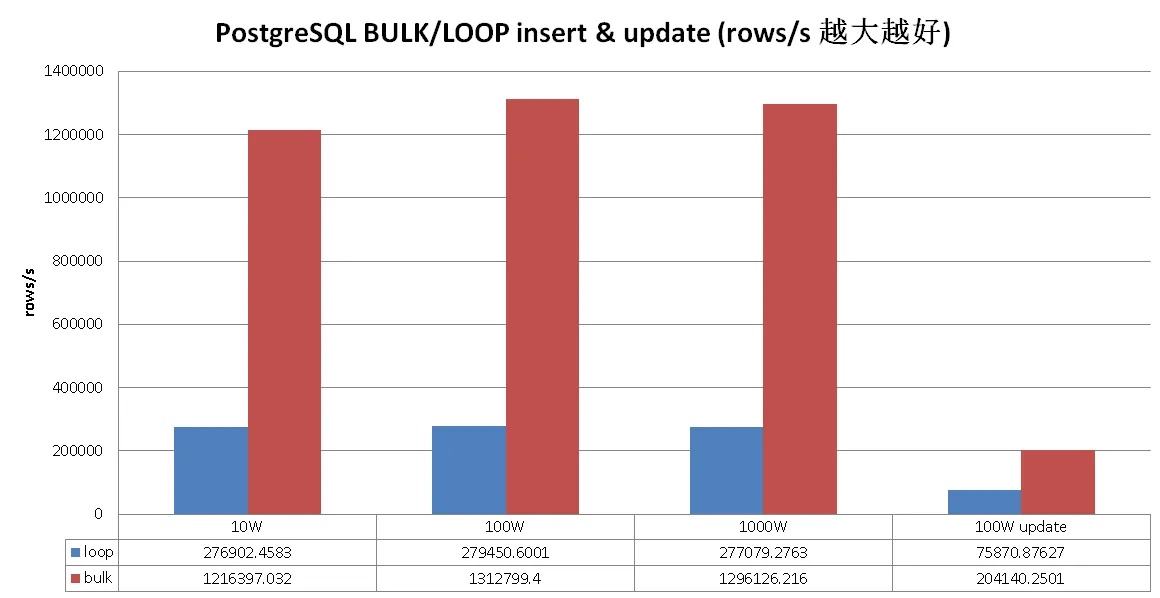

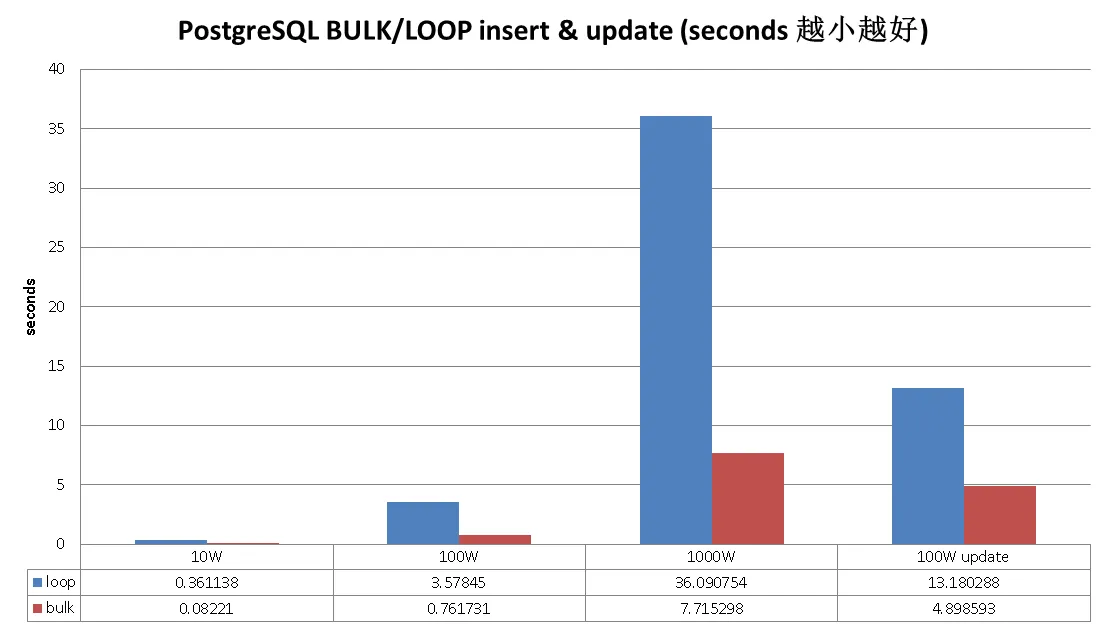

下面是一组LOOP和BULK的性能测试数据
一起来耍耍吧，先看看Oracle怎么耍的。
Oracle PL/SQL FORALL, BULK COLLECT

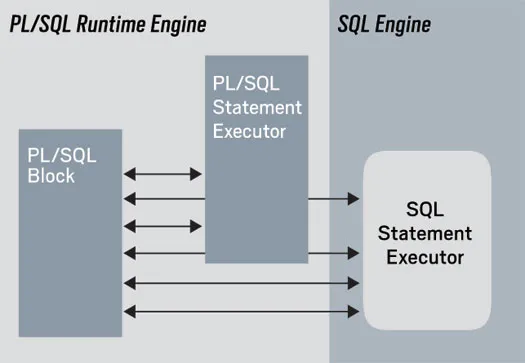

为什么Oracle的PL/SQL过程语言需要bulk处理SQL，看一张图你就明白了，因为过程语言handler和SQL之间需要切换，如果是一个较大的LOOP，切换一多，性能就会下降严重。
因此对于在PL/SQL需要多次调用SQL的处理场景，Oracle想到了bulk collect的处理方法。
比如用户提交一个数组，要求PL/SQL将这个数组的元素一条条插入到表里面，或者拿来更新表里面的值，又或是删除表里的值。
Oracle官网的例子
原始的处理方法，通过query loop来更新某个表的值，pl/sql引擎和sql引擎之间需要切换100次(即循环次数)
Code Listing 1: increase_salary procedure with FOR loop
PROCEDURE increase_salary (
department_id_in IN employees.department_id%TYPE,
increase_pct_in IN NUMBER)
IS
BEGIN
FOR employee_rec
IN (SELECT employee_id
FROM employees
WHERE department_id =
increase_salary.department_id_in)
LOOP
UPDATE employees emp
SET emp.salary = emp.salary +
emp.salary * increase_salary.increase_pct_in
WHERE emp.employee_id = employee_rec.employee_id;
END LOOP;
END increase_salary;
Suppose there are 100 employees in department 15. When I execute this block,
BEGIN
increase_salary (15, .10);
END;
the PL/SQL engine will “switch” over to the SQL engine 100 times, once for each row being updated. Tom Kyte, of AskTom (asktom.oracle.com), refers to row-by-row switching like this as “slow-by-slow processing,” and it is definitely something to be avoided.
把它改成bluk的模式
Code Listing 4: Bulk processing for the increase_salary procedure
1 CREATE OR REPLACE PROCEDURE increase_salary (
2 department_id_in IN employees.department_id%TYPE,
3 increase_pct_in IN NUMBER)
4 IS
5 TYPE employee_ids_t IS TABLE OF employees.employee_id%TYPE
6 INDEX BY PLS_INTEGER; -- 这里有点意思，用了某个字段作为IDX，PG里可用hstore或者一个数组来表示
7 l_employee_ids employee_ids_t;
8 l_eligible_ids employee_ids_t;
9
10 l_eligible BOOLEAN;
11 BEGIN
12 SELECT employee_id
13 BULK COLLECT INTO l_employee_ids -- 批量的插入到一个类似数组的对象中
14 FROM employees
15 WHERE department_id = increase_salary.department_id_in;
16
17 FOR indx IN 1 .. l_employee_ids.COUNT
18 LOOP
19 check_eligibility (l_employee_ids (indx),
20 increase_pct_in,
21 l_eligible);
22
23 IF l_eligible
24 THEN
25 l_eligible_ids (l_eligible_ids.COUNT + 1) :=
26 l_employee_ids (indx);
27 END IF;
28 END LOOP;
29
30 FORALL indx IN 1 .. l_eligible_ids.COUNT -- 批处理，不需要在pl/sql和sql引擎之间多次切换了
31 UPDATE employees emp
32 SET emp.salary =
33 emp.salary
34 + emp.salary * increase_salary.increase_pct_in
35 WHERE emp.employee_id = l_eligible_ids (indx);
36 END increase_salary;
效果

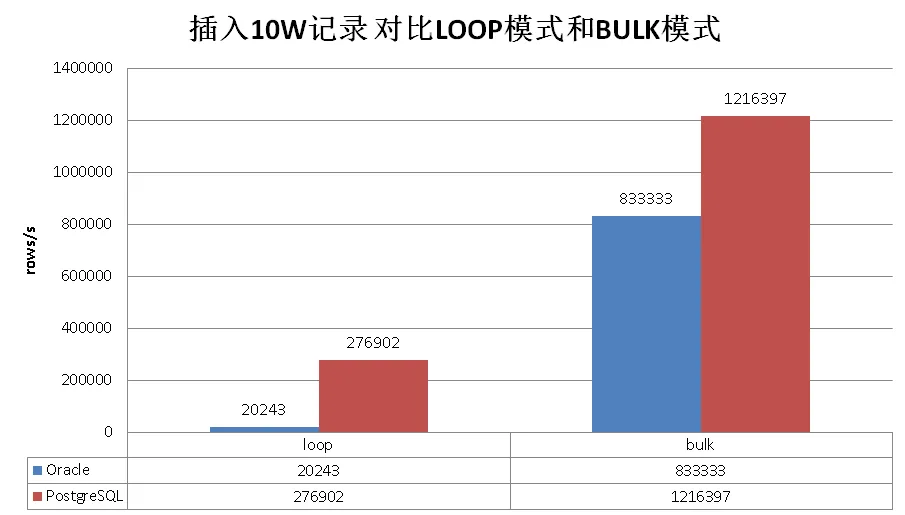

作者的描述， 插入10万记录，从4.94秒提升到了0.12秒。不过他没有给出具体的代码。
On my laptop running Oracle Database 11g Release 2, it took 4.94 seconds to insert 100,000 rows, one at a time. With FORALL, those 100,000 were inserted in 0.12 seconds. Wow!
PostgreSQL plpgsql BULK SQL
耍完Oracle，接下该是PostgreSQL登场了。
模拟的例子是批量插入，更新，删除，或查询. (下面是在一个虚拟机上进行的测试)
我这里用了两种方法来表示批量数据，标量数组以及hstore数组。
测试表
create table test(id int, info text);
类似Oracle FORALL的批量插入用法1
用一个数组表示条件，另一个数组表示VALUE
如果有多个条件或者value时，可以用record数组或者hstore（Key-Value类型）数组来表示。
CREATE OR REPLACE FUNCTION public.f_bulk_insert1(i_k integer[], i_v text[])
RETURNS void
LANGUAGE plpgsql
STRICT
AS $function$
declare
i_length int := array_length(i_k,1);
s timestamp;
e timestamp;
begin
s := clock_timestamp();
raise notice 'start: %', s;
insert into test select i_k[i], i_v[i] from generate_series(1, i_length) t(i);
e := clock_timestamp();
raise notice 'end: %, %', e, e-s;
end;
$function$;
类似Oracle FORALL的批量插入用法2
使用hstore表示KV
create extension hstore;
CREATE OR REPLACE FUNCTION public.f_bulk_insert2(i_kv hstore[])
RETURNS void
LANGUAGE plpgsql
STRICT
AS $function$
declare
i_length int := array_length(i_kv,1);
s timestamp;
e timestamp;
begin
s := clock_timestamp();
raise notice 'start: %', s;
insert into test select ((i_kv[i])->'k')::int, (i_kv[i])->'v' from generate_series(1,i_length) t(i);
e := clock_timestamp();
raise notice 'end: %, %', e, e-s;
end;
$function$;
为了对比性能，我这里也用了传统的LOOP方法
CREATE OR REPLACE FUNCTION public.f_loop_insert(i_k integer[], i_v text[])
RETURNS void
LANGUAGE plpgsql
STRICT
AS $function$
declare
i_length int := array_length(i_k,1);
i int;
s timestamp;
e timestamp;
begin
s := clock_timestamp();
raise notice 'start: %', s;
for i in 1..i_length loop
insert into test values (i_k[i], i_v[i]);
end loop;
e := clock_timestamp();
raise notice 'end: %, %', e, e-s;
end;
$function$;
测试
插入10万
select f_bulk_insert1(k,v) from (
select array_agg(k) as k, array_agg(v) as v from (
select k, md5(random()::text) v from generate_series(1,100000) t(k)
) t
) t;
NOTICE: start: 2016-06-15 14:23:09.240424
NOTICE: end: 2016-06-15 14:23:09.322634, 00:00:00.08221
select f_bulk_insert2(kv) from (
select array_agg(kv) as kv from (
select hstore(t) as kv from (select k, md5(random()::text) v from generate_series(1,100000) t(k)) t
) t
) t;
NOTICE: start: 2016-06-15 14:23:58.59405
NOTICE: end: 2016-06-15 14:23:58.703137, 00:00:00.109087
select f_loop_insert(k,v) from (
select array_agg(k) as k, array_agg(v) as v from (
select k, md5(random()::text) v from generate_series(1,100000) t(k)
) t
) t;
NOTICE: start: 2016-06-15 14:24:24.598243
NOTICE: end: 2016-06-15 14:24:24.959381, 00:00:00.361138
插入100万
select f_bulk_insert1(k,v) from (
select array_agg(k) as k, array_agg(v) as v from (
select k, md5(random()::text) v from generate_series(1,1000000) t(k)
) t
) t;
NOTICE: start: 2016-06-15 14:24:53.105227
NOTICE: end: 2016-06-15 14:24:53.866958, 00:00:00.761731
select f_bulk_insert2(kv) from (
select array_agg(kv) as kv from (
select hstore(t) as kv from (select k, md5(random()::text) v from generate_series(1,1000000) t(k)) t
) t
) t;
NOTICE: start: 2016-06-15 14:25:04.706203
NOTICE: end: 2016-06-15 14:25:05.788041, 00:00:01.081838
select f_loop_insert(k,v) from (
select array_agg(k) as k, array_agg(v) as v from (
select k, md5(random()::text) v from generate_series(1,1000000) t(k)
) t
) t;
NOTICE: start: 2016-06-15 14:25:15.812975
NOTICE: end: 2016-06-15 14:25:19.391425, 00:00:03.57845
插入1000万
select f_bulk_insert1(k,v) from (
select array_agg(k) as k, array_agg(v) as v from (
select k, md5(random()::text) v from generate_series(1,10000000) t(k)
) t
) t;
NOTICE: start: 2016-06-15 14:25:46.647381
NOTICE: end: 2016-06-15 14:25:54.362679, 00:00:07.715298
select f_bulk_insert2(kv) from (
select array_agg(kv) as kv from (
select hstore(t) as kv from (select k, md5(random()::text) v from generate_series(1,10000000) t(k)) t
) t
) t;
NOTICE: start: 2016-06-15 14:27:24.782828
NOTICE: end: 2016-06-15 14:27:36.035167, 00:00:11.252339
select f_loop_insert(k,v) from (
select array_agg(k) as k, array_agg(v) as v from (
select k, md5(random()::text) v from generate_series(1,10000000) t(k)
) t
) t;
NOTICE: start: 2016-06-15 14:28:04.030109
NOTICE: end: 2016-06-15 14:28:40.120863, 00:00:36.090754
更新的例子
drop table test;
create table test(id int primary key, info text);
select f_bulk_insert1(k,v) from (
select array_agg(k) as k, array_agg(v) as v from (
select k, md5(random()::text) v from generate_series(1,1000000) t(k)
) t
) t;
CREATE OR REPLACE FUNCTION public.f_bulk_update(i_k integer[], i_v text[])
RETURNS void
LANGUAGE plpgsql
STRICT
AS $function$
declare
i_length int := array_length(i_k,1);
s timestamp;
e timestamp;
begin
s := clock_timestamp();
raise notice 'start: %', s;
update test set info=i_v[i] from (select i from generate_series(1, i_length) as t(i)) t where id=i_k[i];
e := clock_timestamp();
raise notice 'end: %, %', e, e-s;
end;
$function$;
select f_bulk_update(k,v) from (
select array_agg(k) as k, array_agg(v) as v from (
select k, md5(random()::text) v from generate_series(1,1000000) t(k)
) t
) t;
NOTICE: start: 2016-06-15 15:10:47.453093
NOTICE: end: 2016-06-15 15:10:52.351686, 00:00:04.898593
CREATE OR REPLACE FUNCTION public.f_loop_update(i_k integer[], i_v text[])
RETURNS void
LANGUAGE plpgsql
STRICT
AS $function$
declare
i_length int := array_length(i_k,1);
i int;
s timestamp;
e timestamp;
begin
s := clock_timestamp();
raise notice 'start: %', s;
for i in 1..i_length loop
update test set info=i_v[i] where id=i_k[i];
end loop;
e := clock_timestamp();
raise notice 'end: %, %', e, e-s;
end;
$function$;
select f_loop_update(k,v) from (
select array_agg(k) as k, array_agg(v) as v from (
select k, md5(random()::text) v from generate_series(1,1000000) t(k)
) t
) t;
NOTICE: start: 2016-06-15 15:11:08.170183
NOTICE: end: 2016-06-15 15:11:21.350471, 00:00:13.180288
删除的例子就不再举例了，都差不多。
小结
.1. Oracle PL/SQL FORALL, BULK COLLATE 模式对于LOOP次数超过一定阈值时，性能提升非常多，可能和它的PL/sql语言设计有关。
.2. PostgreSQL plpgsql 语言的处理效率是非常高的，即使不使用BULK模式，你可以看到，LOOP的性能也已经非常好了，使用BULK模式后，性能更上一层。
.3. 目前可能有个query cache的问题，请注意，已报给了社区。后面会有改PG内核的解决方法。
https://www.postgresql.org/message-id/20160615054752.5792.1646%40wrigleys.postgresql.org
（建议可以设置function 的spi次数，或者直接使用generic plan）
http://blog.163.com/digoal@126/blog/static/1638770402012112452432251/
测试的时候你可以先调用5次小数据了(SPI)，PLAN CACHE了再调用大的，否则会悲剧的，代码如下。
src/backend/utils/cache/plancache.c
static bool
choose_custom_plan(CachedPlanSource *plansource, ParamListInfo boundParams)
{
00860 /* Generate custom plans until we have done at least 5 (arbitrary) */
00861 if (plansource->num_custom_plans < 5)
00862 return true;
if (plansource->generic_cost < avg_custom_cost)
return false;
return true;
改动一下代码，重新编译PG，重启数据库即可。(让它一来就使用generic plan)
/* Generate custom plans until we have done at least 5 (arbitrary) */
// if (plansource->num_custom_plans < 5)
// return true;
...
if (plansource->generic_cost < avg_custom_cost)
return false;
// return true;
return false;
当然最好的解决办法是做成创建函数时的option，指定这个函数是否需要custom plan.
参考
http://docs.oracle.com/cd/B19306_01/appdev.102/b14261/tuning.htm#i48876
http://docs.oracle.com/cd/B19306_01/appdev.102/b14261/forall_statement.htm
http://www.postgresql.org/docs/9.5/static/arrays.html
http://blog.csdn.net/leshami/article/details/7536926
