通过http协议传输的数据都是明文的，很容易被窃听。很多时候需要在网上传输口令，这个时候就需要对信息进行加密，对HTTP传输进行加密的协议就是HTTPS，它是通过SSL进行HTTP传输的协议。
我们现在已经有了httpd环境，可参考(http://fengwan.blog.51cto.com/508652/1360429)
在编译过程中需要加上参数--enable-ssl
[root@NFSServer httpd-2.4.7]
# ./configure \
>--prefix=
/webserver/httpd
\
>--sysconfdir=
/webserver/httpd/conf
\
>--
enable
-so \
>--
enable
-rewirte \
>--enable-ssl \
>--
enable
-cgi \
>--
enable
-cgid \
>--
enable
-modules=most \
>--
enable
-modules-shared=most \
>--
enable
-mpms-shared=all \
>--with-apr=
/webserver/apr
\
>--with-apr-util=
/webserver/apr-util
1.环境准备
1.openssl安装
|
1
|
[root@WebServer ~]
# yum -y install openssl openssl-devel
|
2.创建密码文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
[root@WebServer ~]
# openssl genrsa -out server.key 1024
[root@WebServer ~]
# openssl req -new -key server.key -out server.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter
'.'
, the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:GuangDong
Locality Name (eg, city) [Default City]:GuangZhou
Organization Name (eg, company) [Default Company Ltd]:Test
Organizational Unit Name (eg, section) []:Test
Common Name (eg, your name or your server's
hostname
) []:localhost
Email Address []:ca
Please enter the following
'extra'
attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
[root@WebServer ~]
# openssl x509 -req -days 3650 -in server.csr -signkey server.key -out server.crt
|
执行上述命令后将产生3个文件，分别是server.key、server.csr和server.crt ,接着将3个文件复制到/webserver/httpd/conf/ca
|
1
2
|
[root@WebServer ~]
# mkdir /webserver/httpd/conf/ca/
[root@WebServer ~]
# cp -r server.* /webserver/httpd/conf/ca/
|
3.修改 /webserver/httpd/conf/extra/httpd-ssl.conf
|
1
2
3
4
|
[root@WebServer ~]
# vim /webserver/httpd/conf/extra/httpd-ssl.conf
//
修改一下位置
SSLCertificateFile
"/webserver/httpd/conf/ca/server.crt"
SSLCertificateKeyFile
"/webserver/httpd/conf/ca/server.key"
|
4.修改/webserver/httpd/conf/httpd.conf加载ssl_module和socache_shmcb_module
|
1
2
3
4
|
[root@WebServer ~]
# vim /webserver/httpd/conf/httpd.conf
//
将一下2句前面的
#删除，或者直接将下面这2句加入配置文件
LoadModule socache_shmcb_module modules
/mod_socache_shmcb
.so
LoadModule ssl_module modules
/mod_ssl
.so
|
如果没有加载socache_shmcb_module将出现
|
1
2
3
4
5
|
[root@WebServer ~]
# service httpd restart
Stopping httpd: [ OK ]
Starting httpd: AH00526: Syntax error on line 76 of
/webserver/httpd/conf/extra/httpd-ssl
.conf:
SSLSessionCache:
'shmcb'
session cache not supported (known names: ). Maybe you need to load the appropriate socache module (mod_socache_shmcb?).
[FAILED]
|
5.重启httpd服务即可
|
1
2
3
|
[root@WebServer ~]
# service httpd restart
Stopping httpd: [ OK ]
Starting httpd: [ OK ]
|

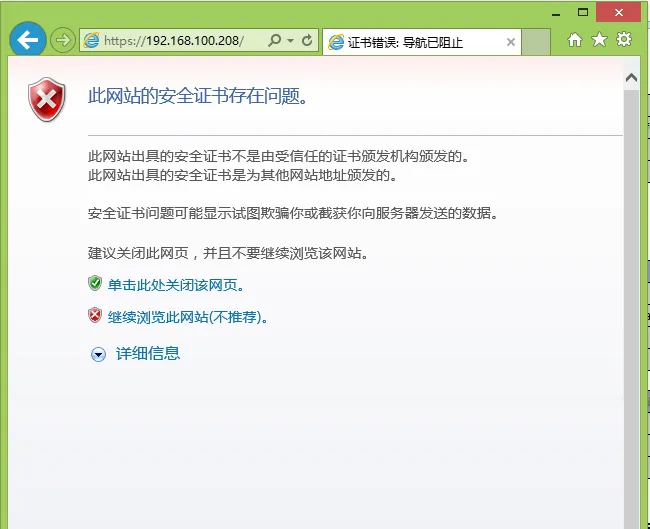

6.测试
