背景

前面介绍了空间包含(st_contains, st_within)搜索降CPU的优化方法，将长条形（相对于BOUND BOX空间占比很小）的对象切分成多个空间对象，提升相对于bound box的空间占比，从而减少扫描范围，提升命中率。

《PostgreSQL 空间st_contains，st_within空间包含搜索优化 - 降IO和降CPU(bound box)》

这种优化方法的关键是SPLIT，PostGIS提供了一种split函数，但是只能支持一次切两片，本文提供一种方法，可以根据用户的需求进行自由切割。（输入被切割的目标对象，横向切割多少刀，纵向切割多少刀，面积占比高于多少时不切割。）

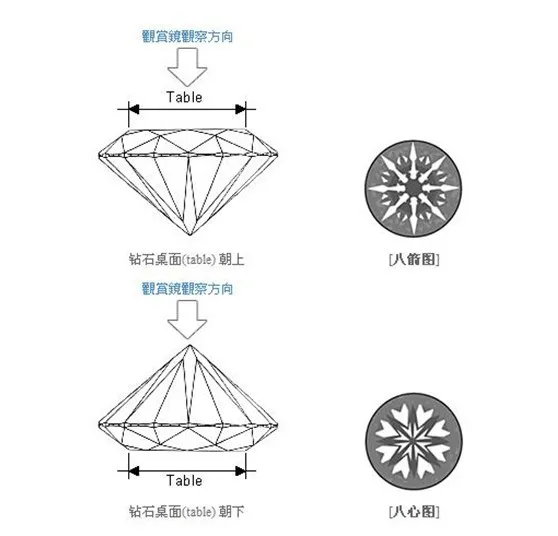

八星八箭有木有：

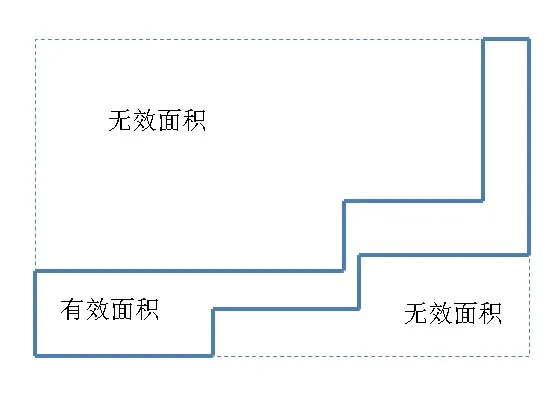

空间split，目的是降低无效面积，看看这幅无效面积有多大吧，吓不吓人？

空间切割示例

切割逻辑

1、输入被切割的目标对象，横向切割多少刀，纵向切割多少刀，面积占比高于多少时不切割。

2、计算目标对象面积。

2、获取目标对象的bound box边界。计算BOUND BOX面积。

3、判断是否需要切割。

求横向切割线

切割

4、求切割后的geometry coll有几个对象。

5、转换为geo数组输出。

切割代码

create or replace function split_geo(
  i_geo geometry,   -- 被切割的目标对象
  i_srid int,      -- SRID
  i_x int2,         -- X方向切多少刀
  i_y int2,         -- Y方向切多少刀
  i_aratio float4   -- 面积占比阈值，高于它则不切割
)
returns geometry[] as $$
declare
  res geometry[];         -- 结果
  tmp_geo geometry;       -- 切割后的临时对象(geometry collection)
  split_geos geometry[];  -- 切割线数组
  split_line geometry;    -- 线段
  v_area_obj float8;      -- 目标对象面积
  v_area_box float8;      -- 目标对象的bound box的面积
  v_xmin float8 := ST_XMin(i_geo);          -- 目标对象BOUND BOX，XMIN
  v_ymin float8 := ST_YMin(i_geo);          -- 目标对象BOUND BOX，YMIN
  v_xmax float8 := ST_XMax(i_geo);          -- 目标对象BOUND BOX，XMAX
  v_ymax float8 := ST_YMax(i_geo);          -- 目标对象BOUND BOX，YMAX
  v_box geometry;         -- 目标对象的BOUND BOX
  x_geo geometry;         -- 分解geometry collection临时对象
begin
  -- 求边界
  v_box := st_setsrid(ST_MakeBox2D(st_makepoint(v_xmin,v_ymin), st_makepoint(v_xmax,v_ymax)),i_srid);

  -- 求面积
  v_area_obj := st_area(i_geo);
  v_area_box := st_area(v_box);

  -- split 前的空间占比
  raise notice '%', (v_area_obj/v_area_box);

  -- 计算面积占比，判断是否需要切割
  if (v_area_obj/v_area_box) > i_aratio then
    -- 大于面积比，不切割
    return array[i_geo];
  else
    -- 计算切割线段X位点
    for i in 1..i_x
    loop
      split_geos := coalesce
        (
        array_append(split_geos, st_setsrid(st_makeline(st_makepoint(v_xmin+i*((v_xmax-v_xmin)/(i_x+1)), v_ymin), st_makepoint(v_xmin+i*((v_xmax-v_xmin)/(i_x+1)), v_ymax)), i_srid))
        ,
        array[st_setsrid(st_makeline(st_makepoint(v_xmin+i*((v_xmax-v_xmin)/(i_x+1)), v_ymin), st_makepoint(v_xmin+i*((v_xmax-v_xmin)/(i_x+1)), v_ymax)), i_srid)]
        );
    end loop;

    -- 计算切割线段Y位点
    for i in 1..i_y
    loop
      split_geos := coalesce
        (
        array_append(split_geos, st_setsrid(st_makeline(st_makepoint(v_xmin, v_ymin+i*((v_ymax-v_ymin)/(i_y+1))), st_makepoint(v_xmax, v_ymin+i*((v_ymax-v_ymin)/(i_y+1)))), i_srid))
        ,
        array[st_setsrid(st_makeline(st_makepoint(v_xmin, v_ymin+i*((v_ymax-v_ymin)/(i_y+1))), st_makepoint(v_xmax, v_ymin+i*((v_ymax-v_ymin)/(i_y+1)))), i_srid)]
        );
    end loop;

    -- 切割
    foreach split_line in array split_geos
    loop
      tmp_geo := coalesce
        (
	st_split(tmp_geo, split_line)
	,
        st_split(i_geo, split_line)
	);
    end loop;
  end if;

  -- 将geometry collection转换为geometry数组
  for i in 1..ST_NumGeometries(tmp_geo)
  loop
    res := coalesce(array_append(res, ST_GeometryN(tmp_geo, i)), array[ST_GeometryN(tmp_geo, i)]);
  end loop;

  -- split 后的空间占比
  v_area_obj := 0;
  v_area_box := 0;

  foreach x_geo in array res
  loop
    v_area_obj := v_area_obj + st_area(x_geo);
    v_area_box := v_area_box + st_area(st_setsrid(ST_MakeBox2D(st_makepoint(st_xmin(x_geo),st_ymin(x_geo)), st_makepoint(st_xmax(x_geo),st_ymax(x_geo))),i_srid));
  end loop;

  -- split 后的空间占比
  raise notice '%', (v_area_obj/v_area_box);

  return res;
end;
$$ language plpgsql strict immutable;

验证切割

1、横向纵向各切2刀，最多得到9个对象。（当刀下去后没有切到有效部位时不返回，因此可能少于9个对象。）

select st_astext(
unnest(
split_geo(
  st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326),
  4326::int4,
  2::int2,
  2::int2,
  0.9::float4
)));


NOTICE:  0.242857142857143
NOTICE:  0.818181818181818
                                                        st_astext
-------------------------------------------------------------------------------------------------------------------------
 POLYGON((2.33333333333333 2.5,1 2.5,1 1.66666666666667,0 1.66666666666667,0 3,2.33333333333333 3,2.33333333333333 2.5))
 POLYGON((1 1.66666666666667,1 0,0 0,0 1.66666666666667,1 1.66666666666667))
 POLYGON((2.33333333333333 3,4.66666666666667 3,4.66666666666667 2.5,2.33333333333333 2.5,2.33333333333333 3))
 POLYGON((4.66666666666667 3,5 3,5 3.33333333333333,6 3.33333333333333,6 2.5,4.66666666666667 2.5,4.66666666666667 3))
 POLYGON((5 3.33333333333333,5 5,7 5,7 4,6 4,6 3.33333333333333,5 3.33333333333333))
(5 rows)

切割前后的面积占比分别是24%和82%，一下子提升了好多，如果使用这几个拼接，可以少扫描若干个数据块。

2、横向纵向各切2刀，最多得到9个对象。（当刀下去后没有切到有效部位时不返回，因此可能少于9个对象。）

切割前后的面积占比分别是24%和98%，一下子提升了好多，如果使用这几个拼接，可以少扫描若干个数据块。

postgres=# select st_astext(
unnest(
split_geo(
  st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326),
  4326::int4,
  4::int2,
  4::int2,
  0.9::float4
)));


NOTICE:  0.242857142857143
NOTICE:  0.977011494252874
                     st_astext
----------------------------------------------------
 POLYGON((1.4 2.5,1 2.5,1 2,0 2,0 3,1.4 3,1.4 2.5))
 POLYGON((1 2,1 1,0 1,0 2,1 2))
 POLYGON((1 1,1 0,0 0,0 1,1 1))
 POLYGON((1.4 3,2.8 3,2.8 2.5,1.4 2.5,1.4 3))
 POLYGON((2.8 3,4.2 3,4.2 2.5,2.8 2.5,2.8 3))
 POLYGON((4.2 3,5 3,5.6 3,5.6 2.5,4.2 2.5,4.2 3))
 POLYGON((5 3,5 4,5.6 4,5.6 3,5 3))
 POLYGON((5 4,5 5,5.6 5,5.6 4,5 4))
 POLYGON((5.6 5,7 5,7 4,6 4,5.6 4,5.6 5))
 POLYGON((6 4,6 3,5.6 3,5.6 4,6 4))
 POLYGON((6 3,6 2.5,5.6 2.5,5.6 3,6 3))
(11 rows)

切割前后优化对比

不切割，扫描1648个数据块，过滤26590条无效数据。

explain (analyze,verbose,timing,costs,buffers)
select * from f where st_within(pos, st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326));


 Index Scan using idx_f on public.f  (cost=0.42..15026.72 rows=3333 width=40) (actual time=1.519..35.773 rows=8491 loops=1)
   Output: id, pos
   Index Cond: ('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry ~ f.pos)
   Filter: _st_contains('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry, f.pos)
   Rows Removed by Filter: 26590
   Buffers: shared hit=1648
 Planning time: 0.274 ms
 Execution time: 36.212 ms

切割，扫描610个数据块，过滤1932条无效数据。

explain (analyze,verbose,timing,costs,buffers)
select * from f where st_within(pos, st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(2.33333333333333 2.5,1 2.5,1 1.66666666666667,0 1.66666666666667,0 3,2.33333333333333 3,2.33333333333333 2.5)')), 4326))
union all
select * from f where st_within(pos, st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(1 1.66666666666667,1 0,0 0,0 1.66666666666667,1 1.66666666666667)')), 4326))
union all
select * from f where st_within(pos, st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(2.33333333333333 3,4.66666666666667 3,4.66666666666667 2.5,2.33333333333333 2.5,2.33333333333333 3)')), 4326))
union all
select * from f where st_within(pos, st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(4.66666666666667 3,5 3,5 3.33333333333333,6 3.33333333333333,6 2.5,4.66666666666667 2.5,4.66666666666667 3)')), 4326))
union all
select * from f where st_within(pos, st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(5 3.33333333333333,5 5,7 5,7 4,6 4,6 3.33333333333333,5 3.33333333333333)')), 4326))
;


 Append  (cost=0.42..75300.24 rows=16665 width=40) (actual time=0.113..11.690 rows=8491 loops=1)
   Buffers: shared hit=610
   ->  Index Scan using idx_f on public.f  (cost=0.42..15026.72 rows=3333 width=40) (actual time=0.113..3.365 rows=2053 loops=1)
         Output: f.id, f.pos
         Index Cond: ('0103000020E61000000100000007000000A3AAAAAAAAAA02400000000000000440000000000000F03F0000000000000440000000000000F03FBAAAAAAAAAAAFA3F0000000000000000BAAAAAAAAAAAFA3F00000000000000000000000000000840A3AAAAAAAAAA02400000000000000840A3AAAAAAAAAA02400000000000000440'::geometry ~ f.pos)
         Filter: _st_contains('0103000020E61000000100000007000000A3AAAAAAAAAA02400000000000000440000000000000F03F0000000000000440000000000000F03FBAAAAAAAAAAAFA3F0000000000000000BAAAAAAAAAAAFA3F00000000000000000000000000000840A3AAAAAAAAAA02400000000000000840A3AAAAAAAAAA02400000000000000440'::geometry, f.pos)
         Rows Removed by Filter: 1142
         Buffers: shared hit=189
   ->  Index Scan using idx_f on public.f f_1  (cost=0.42..15026.72 rows=3333 width=40) (actual time=0.084..1.734 rows=1699 loops=1)
         Output: f_1.id, f_1.pos
         Index Cond: ('0103000020E61000000100000005000000000000000000F03FBAAAAAAAAAAAFA3F000000000000F03F0000000000000000000000000000000000000000000000000000000000000000BAAAAAAAAAAAFA3F000000000000F03FBAAAAAAAAAAAFA3F'::geometry ~ f_1.pos)
         Filter: _st_contains('0103000020E61000000100000005000000000000000000F03FBAAAAAAAAAAAFA3F000000000000F03F0000000000000000000000000000000000000000000000000000000000000000BAAAAAAAAAAAFA3F000000000000F03FBAAAAAAAAAAAFA3F'::geometry, f_1.pos)
         Buffers: shared hit=92
   ->  Index Scan using idx_f on public.f f_2  (cost=0.42..15026.72 rows=3333 width=40) (actual time=0.075..1.283 rows=1158 loops=1)
         Output: f_2.id, f_2.pos
         Index Cond: ('0103000020E61000000100000005000000A3AAAAAAAAAA02400000000000000840AEAAAAAAAAAA12400000000000000840AEAAAAAAAAAA12400000000000000440A3AAAAAAAAAA02400000000000000440A3AAAAAAAAAA02400000000000000840'::geometry ~ f_2.pos)
         Filter: _st_contains('0103000020E61000000100000005000000A3AAAAAAAAAA02400000000000000840AEAAAAAAAAAA12400000000000000840AEAAAAAAAAAA12400000000000000440A3AAAAAAAAAA02400000000000000440A3AAAAAAAAAA02400000000000000840'::geometry, f_2.pos)
         Buffers: shared hit=74
   ->  Index Scan using idx_f on public.f f_3  (cost=0.42..15026.72 rows=3333 width=40) (actual time=0.095..1.214 rows=986 loops=1)
         Output: f_3.id, f_3.pos
         Index Cond: ('0103000020E61000000100000007000000AEAAAAAAAAAA12400000000000000840000000000000144000000000000008400000000000001440A3AAAAAAAAAA0A400000000000001840A3AAAAAAAAAA0A4000000000000018400000000000000440AEAAAAAAAAAA12400000000000000440AEAAAAAAAAAA12400000000000000840'::geometry ~ f_3.pos)
         Filter: _st_contains('0103000020E61000000100000007000000AEAAAAAAAAAA12400000000000000840000000000000144000000000000008400000000000001440A3AAAAAAAAAA0A400000000000001840A3AAAAAAAAAA0A4000000000000018400000000000000440AEAAAAAAAAAA12400000000000000440AEAAAAAAAAAA12400000000000000840'::geometry, f_3.pos)
         Rows Removed by Filter: 127
         Buffers: shared hit=68
   ->  Index Scan using idx_f on public.f f_4  (cost=0.42..15026.72 rows=3333 width=40) (actual time=0.105..3.331 rows=2595 loops=1)
         Output: f_4.id, f_4.pos
         Index Cond: ('0103000020E610000001000000070000000000000000001440A3AAAAAAAAAA0A40000000000000144000000000000014400000000000001C4000000000000014400000000000001C400000000000001040000000000000184000000000000010400000000000001840A3AAAAAAAAAA0A400000000000001440A3AAAAAAAAAA0A40'::geometry ~ f_4.pos)
         Filter: _st_contains('0103000020E610000001000000070000000000000000001440A3AAAAAAAAAA0A40000000000000144000000000000014400000000000001C4000000000000014400000000000001C400000000000001040000000000000184000000000000010400000000000001840A3AAAAAAAAAA0A400000000000001440A3AAAAAAAAAA0A40'::geometry, f_4.pos)
         Rows Removed by Filter: 663
         Buffers: shared hit=187
 Planning time: 0.397 ms
 Execution time: 12.150 ms
(32 rows)

PostgreSQL支持 op any\some\all(array)的操作，因此我们可以将SQL简化成这样，9宫格切割，扫描的数据块降低到278，过滤记录降到了1932：

explain (analyze,verbose,timing,costs,buffers) select * from f where pos @ any(split_geo(
  st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326),
  4326::int4,
  2::int2,
  2::int2,
  0.9::float4
))
and
st_within(pos, st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326));

NOTICE:  0.242857142857143
NOTICE:  0.818181818181818


 Bitmap Heap Scan on public.f  (cost=9.09..87.16 rows=17 width=40) (actual time=2.270..10.578 rows=8491 loops=1)
   Output: id, pos
   Recheck Cond: ((f.pos @ ANY ('{0103000020E61000000100000007000000ABAAAAAAAAAA02400000000000000440000000000000F03F0000000000000440000000000000F03FABAAAAAAAAAAFA3F0000000000000000ABAAAAAAAAAAFA3F00000000000000000000000000000840ABAAAAAAAAAA02400000000000000840ABAAAAAAAAAA02400000000000000440:0103000020E61000000100000005000000000000000000F03FABAAAAAAAAAAFA3F000000000000F03F0000000000000000000000000000000000000000000000000000000000000000ABAAAAAAAAAAFA3F000000000000F03FABAAAAAAAAAAFA3F:0103000020E61000000100000005000000ABAAAAAAAAAA02400000000000000840ABAAAAAAAAAA12400000000000000840ABAAAAAAAAAA12400000000000000440ABAAAAAAAAAA02400000000000000440ABAAAAAAAAAA02400000000000000840:0103000020E61000000100000007000000ABAAAAAAAAAA12400000000000000840000000000000144000000000000008400000000000001440ABAAAAAAAAAA0A400000000000001840ABAAAAAAAAAA0A4000000000000018400000000000000440ABAAAAAAAAAA12400000000000000440ABAAAAAAAAAA12400000000000000840:0103000020E610000001000000070000000000000000001440ABAAAAAAAAAA0A40000000000000144000000000000014400000000000001C4000000000000014400000000000001C400000000000001040000000000000184000000000000010400000000000001840ABAAAAAAAAAA0A400000000000001440ABAAAAAAAAAA0A40}'::geometry[])) AND ('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry ~ f.pos))
   Filter: _st_contains('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry, f.pos)
   Rows Removed by Filter: 1932
   Heap Blocks: exact=133
   Buffers: shared hit=278
   ->  Bitmap Index Scan on idx_f  (cost=0.00..9.09 rows=50 width=0) (actual time=2.244..2.244 rows=10423 loops=1)
         Index Cond: ((f.pos @ ANY ('{0103000020E61000000100000007000000ABAAAAAAAAAA02400000000000000440000000000000F03F0000000000000440000000000000F03FABAAAAAAAAAAFA3F0000000000000000ABAAAAAAAAAAFA3F00000000000000000000000000000840ABAAAAAAAAAA02400000000000000840ABAAAAAAAAAA02400000000000000440:0103000020E61000000100000005000000000000000000F03FABAAAAAAAAAAFA3F000000000000F03F0000000000000000000000000000000000000000000000000000000000000000ABAAAAAAAAAAFA3F000000000000F03FABAAAAAAAAAAFA3F:0103000020E61000000100000005000000ABAAAAAAAAAA02400000000000000840ABAAAAAAAAAA12400000000000000840ABAAAAAAAAAA12400000000000000440ABAAAAAAAAAA02400000000000000440ABAAAAAAAAAA02400000000000000840:0103000020E61000000100000007000000ABAAAAAAAAAA12400000000000000840000000000000144000000000000008400000000000001440ABAAAAAAAAAA0A400000000000001840ABAAAAAAAAAA0A4000000000000018400000000000000440ABAAAAAAAAAA12400000000000000440ABAAAAAAAAAA12400000000000000840:0103000020E610000001000000070000000000000000001440ABAAAAAAAAAA0A40000000000000144000000000000014400000000000001C4000000000000014400000000000001C400000000000001040000000000000184000000000000010400000000000001840ABAAAAAAAAAA0A400000000000001440ABAAAAAAAAAA0A40}'::geometry[])) AND ('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry ~ f.pos))
         Buffers: shared hit=145
 Planning time: 2.828 ms
 Execution time: 11.024 ms
(12 rows)
